Hotchkis 80117 TVS System, Stage 3, 10-11 Camaro, Race Pack User Manual
Page 7
2010 Chevy Camaro
Hotchkis Performance LLC.
2

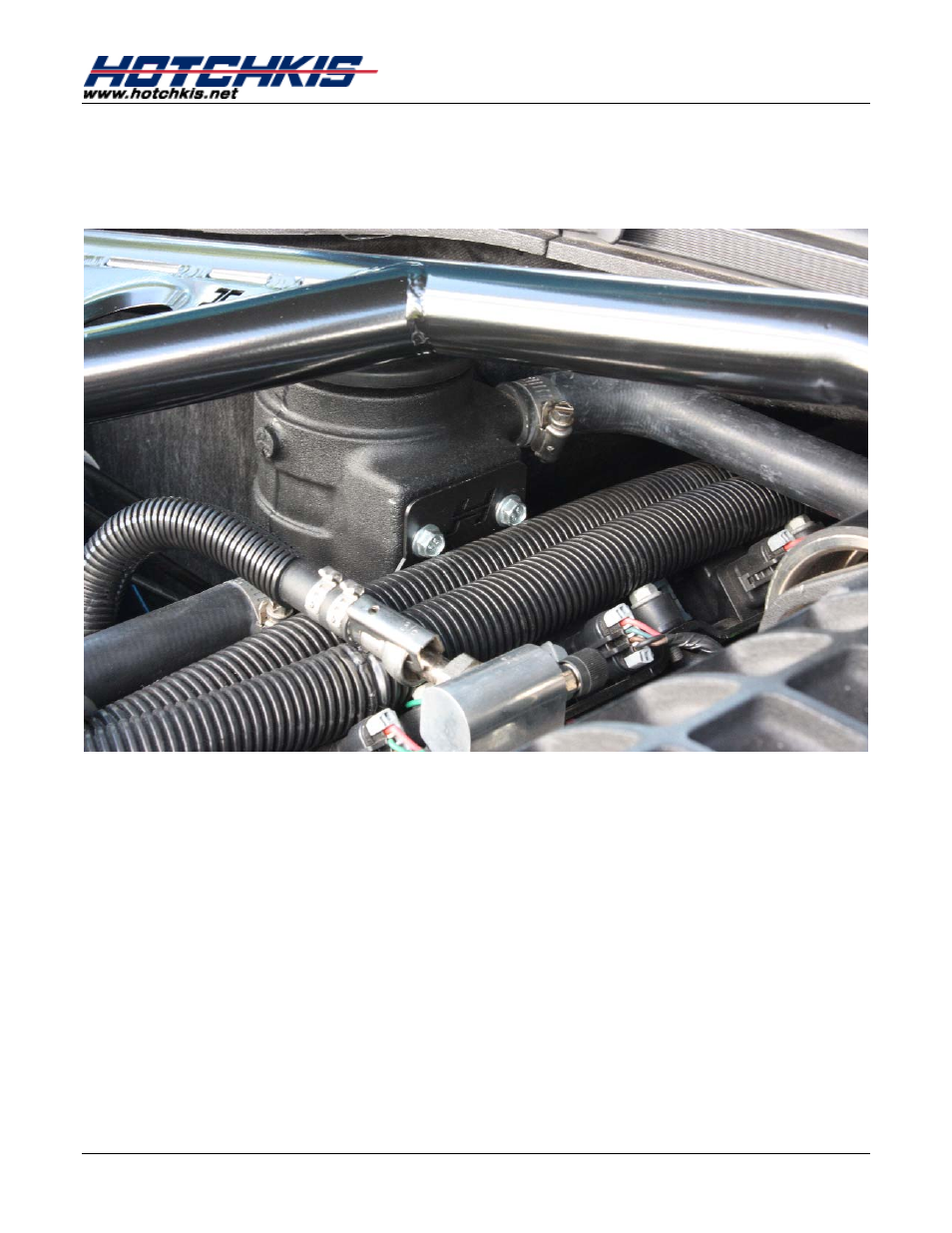

Supercharger Note:
If you have the Magnuson supercharger (Magna Charger) installed on your vehicle, you will
need to relocate the intercooler reservoir tank using the included Hotchkis bracket.
The hotchkis bracket resembles the Magnuson bracket, but it positions the reservoir down
and towards the rear to gain clearance for the brace. Reuse the bracket hardware from the
Magnacharger kit. Undo the 3 bolts holding the reservoir to the bracket. Remove the single
nut that holds the bracket to the engine. Replace Magnuson bracket with Hotchkis bracket.
Reuse the nut to secure the bracket to the engine. Reuse 2 of the 3 bolts that hold the
reservoir to the bracket. Proceed to the strut brace installation.
