Hotchkis 22425 Scion TC Sport Sway Bar Set User Manual
Page 5

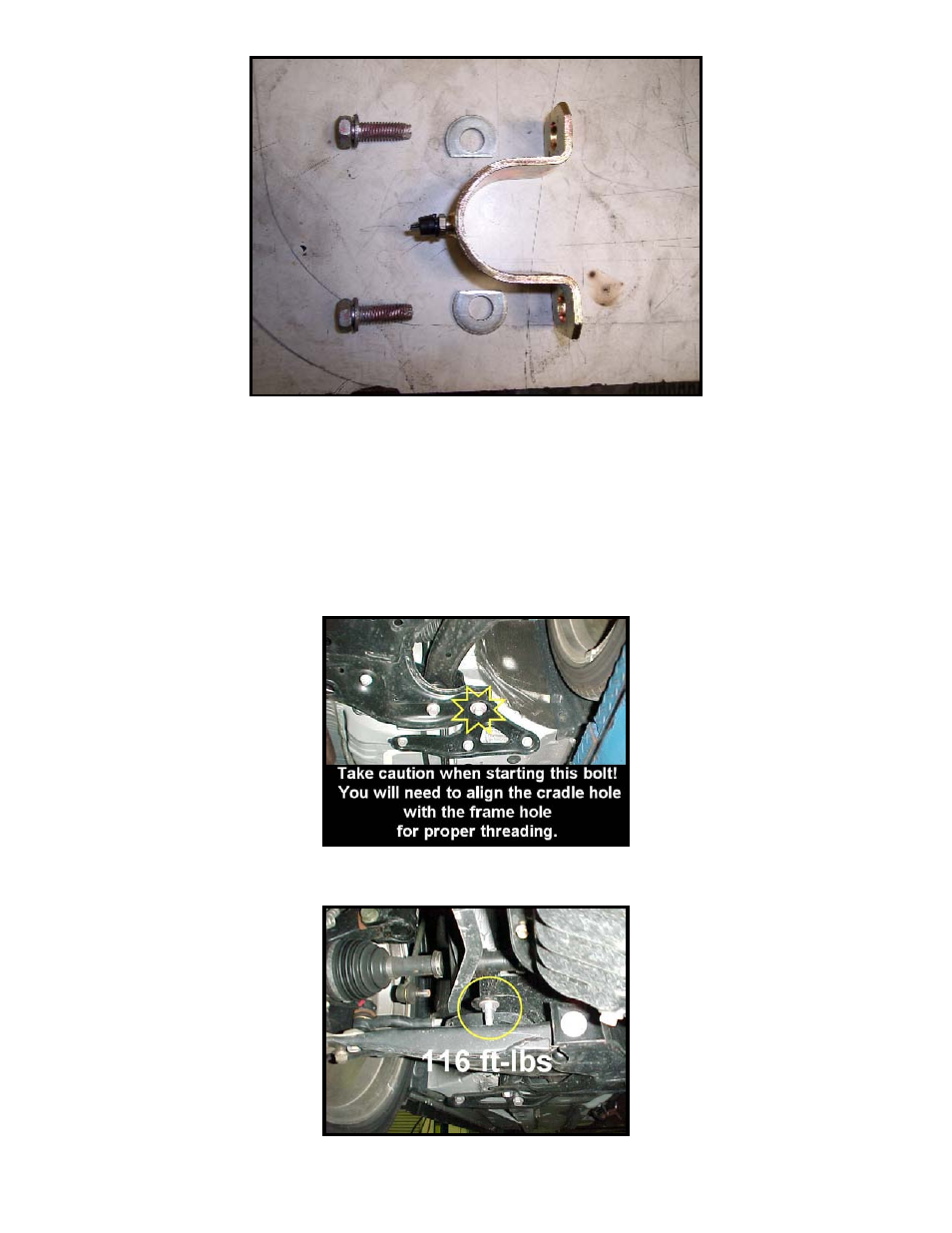

Use the provided flat cut washers with the OEM bolts
11)
Steps for reinstalling the cradle:
1 – Install the 2 rear cradle bolts. It might be difficult to start the bolt in the hole due to misalignment, so
you will need to line up the cradle hole with the frame hole. Once aligned the bolt should thread easily.
Do not force thread the bolts! They may cross thread if you do! This step takes patience and may
require you to use pry bars, picks, or tranny jacks to align the cradle correctly. Once properly threaded,
torque this bolt to 116 ft-lbs.
2 – Install the front cradle nuts and torque to 116 ft-lbs.
