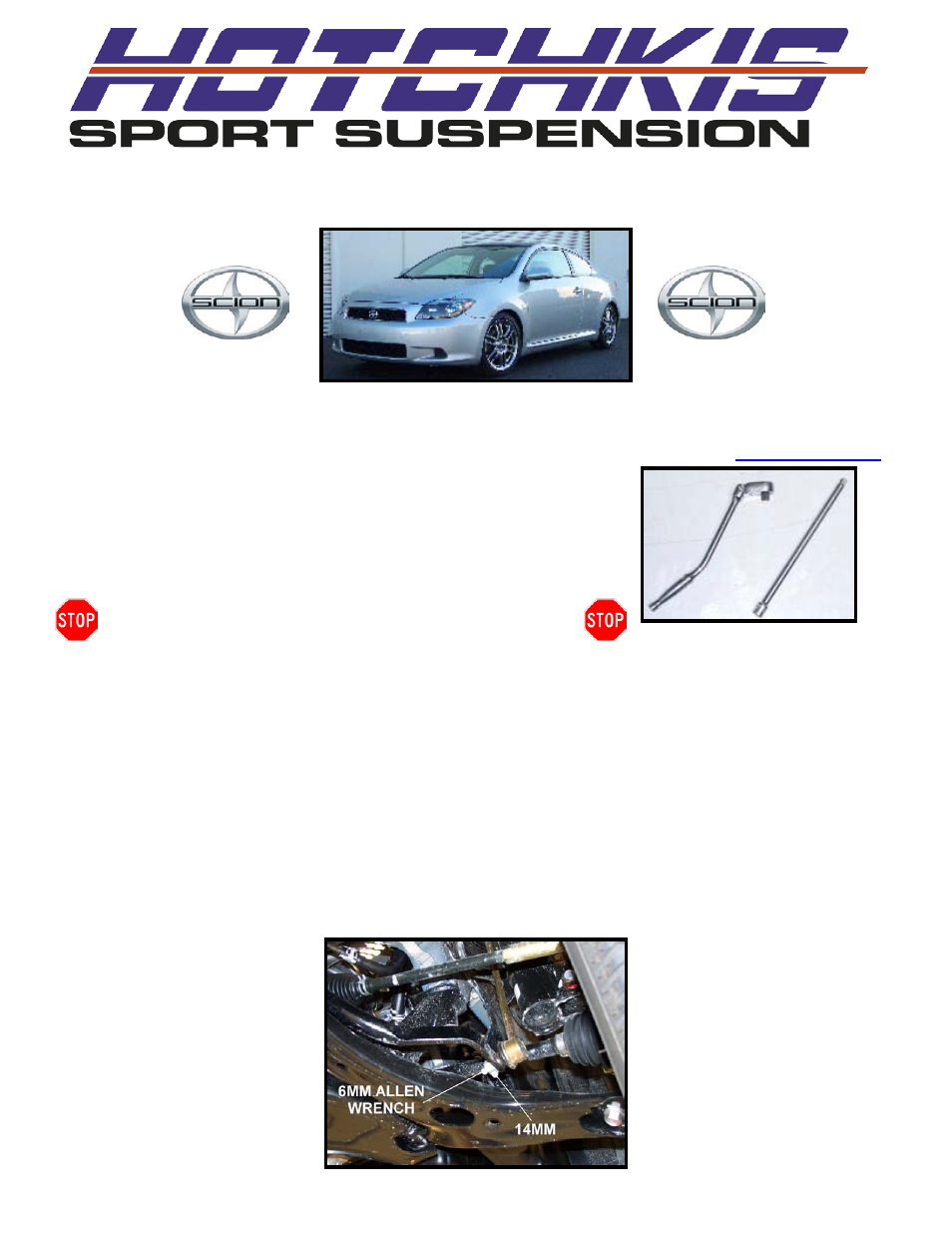

Hotchkis 22425 Scion TC Sport Sway Bar Set User Manual
Please read before continuing, Installation of hotchkis front sway bar
Sport Sway Bar Kit (22425)
Scion tC
Thank you for your purchase from our new line of Scion tC parts.
Please call us at (877) 4NO - ROLL if you have any questions
regarding the service or installation of your Hotchkis products. Visit us online @
Tools required for this installation:
-
Hydraulic jack, jack stands, torque wrench
-
The following sockets or wrenches: 12mm, 14mm, 17mm, 19mm
-
The following Allen wrenches: 6mm
-
Suggested tools: 6” socket extension, swivel ratchet
Please Read Before Continuing
Hotchkis Tuning recommends that this sway bar set be installed by a professional, as the
front sway bar can only be removed or installed by detaching the front engine cradle and
lowering it from the vehicle! Please carefully review all steps of the installation instructions
before attempting installation.
INSTALLATION OF HOTCHKIS FRONT SWAY BAR
1)
Securely block the rear wheels of the vehicle. Use a jack to lift up the front of the vehicle and use jack
stands to support it. Do not remove the front wheels during installation for safety.
2)
Use a 14mm wrench and 6mm Allen wrench to remove the nuts holding the end links to the ends of the
stock sway bar. Remove the end links from the ends of the sway bar. Retain the hard ware for later
use.
Document Outline
- Sport Sway Bar Kit (22425)
- Sport Sway Bar Kit
- Improperly installed or installed by someone other than a qualified, licensed auto mechanic experienced in the installation and removal of suspension products;
- Improperly serviced, misused, or modified, altered or subjected to abuse, negligence, accident or collision;
- Installed in any vehicle that has been modified;
- Installed on any vehicle that has carried loads in excess of automobile manufacturer suggested weight limits; or
- Installed on any vehicle that has been subject to abnormal or excessive use, including rallying, racing, or racing-type activities or off-road use.
- Did you register the product at 0TUwww.hotchkis.netU0T or via the mail-in warranty card within 30 days of purchase?
- Is the product appropriate to your application?
- Did you carefully and thoroughly read the instructions provided along with the product?
- Do you have the original invoice or sales receipt?
- Is the return date within 36 months from the purchase date?
- Are you the original purchaser?
- Was the product properly installed by a qualified, licensed auto mechanic?
- Has the product been installed on the original vehicle on which it was installed at all times?
- Is the product unmodified and clean?
- Is the reason for return a legitimate product defect?
