INSTALLATION OF HOTCHKIS PERFORMANCE REAR SWAY BAR
Before you proceed, please see the Special Notice on page 11 regarding frame
type.
1)
Securely block the front wheels of the vehicle and jack up the rear end. Support the rear end on
jack stands and place the jack under the rear end for later use. You will have to have the rear
axle at approximate normal ride height to install the rear sway bar in a later step.
2)
Begin by placing the u-bolts from hardware kit #T1722 over the rear axle. Place them roughly
the same distance from the center of the axle, with the ends of the u-bolts pointed straight

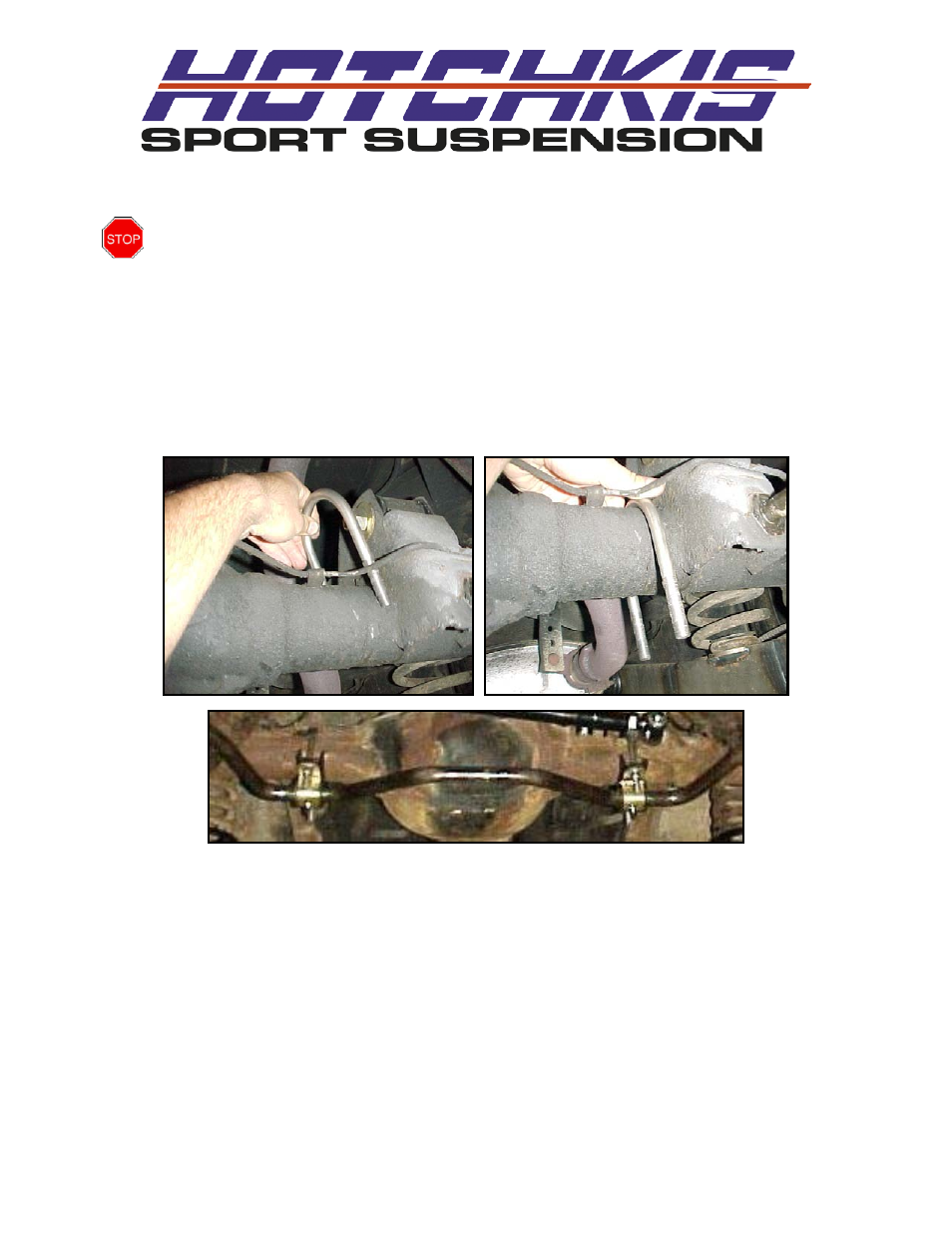

down. See the picture below for approximate spacing of the u-bolts when installed.
