Hotchkis 80113 1967-1972 Dodge A-Body Total Vehicle System User Manual
Page 27

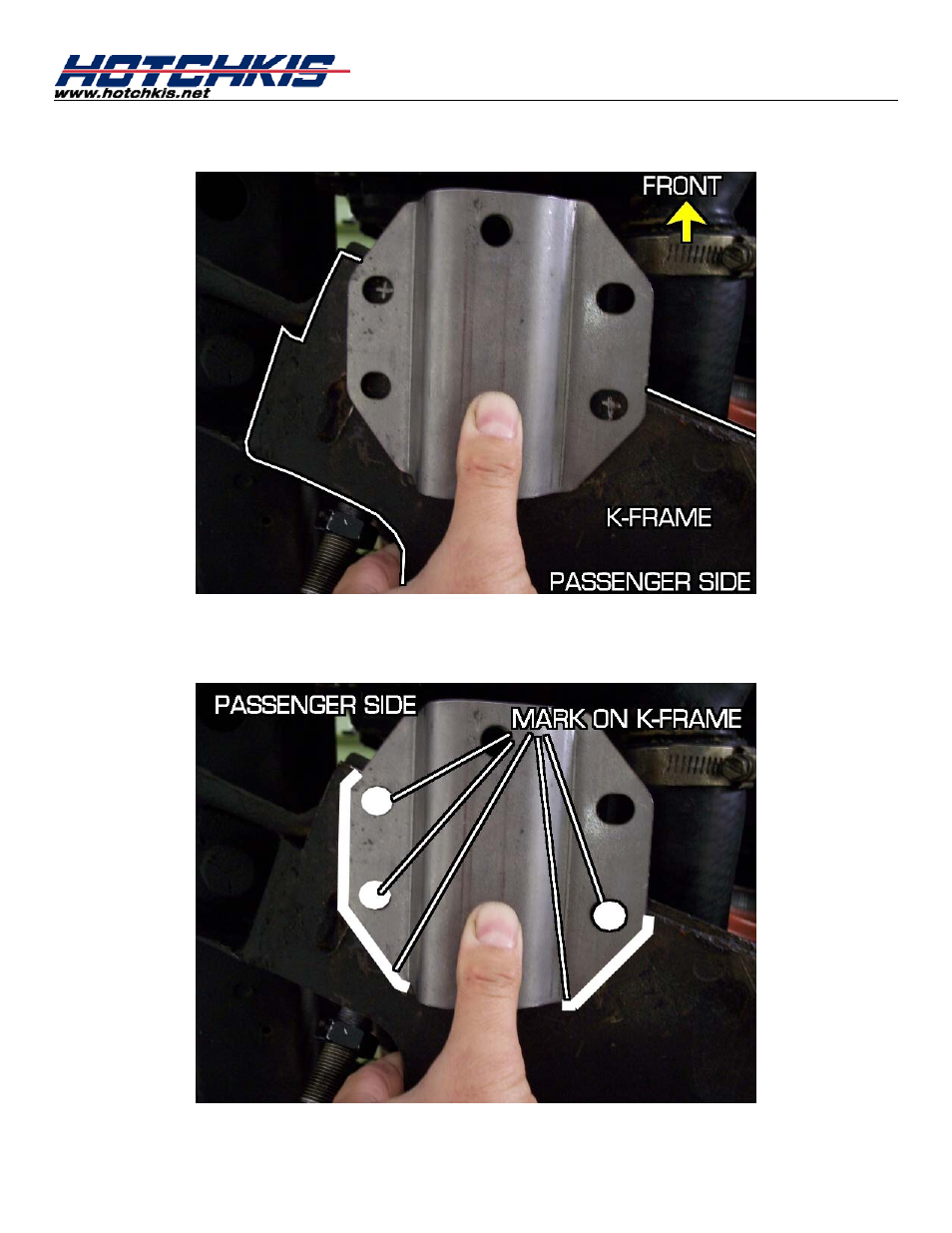

Position the entire assembly up to the K-member. The bracket should mate up to the k-member as shown below.
(Picture shows bushings, brackets, & bar removed for clarity purposes.)
Use a paint marker to mark where the holes are as well as the outer edges that mate with the k-frame. (Picture
shows bracket disconnected from the sway bar for clarity purposes.
Once the k-frame is marked, use an angle grinder with a sand paper attachment to remove all of the paint and
grime on the areas previously marked. What we are doing is cleaning the area that is going to be welded.
