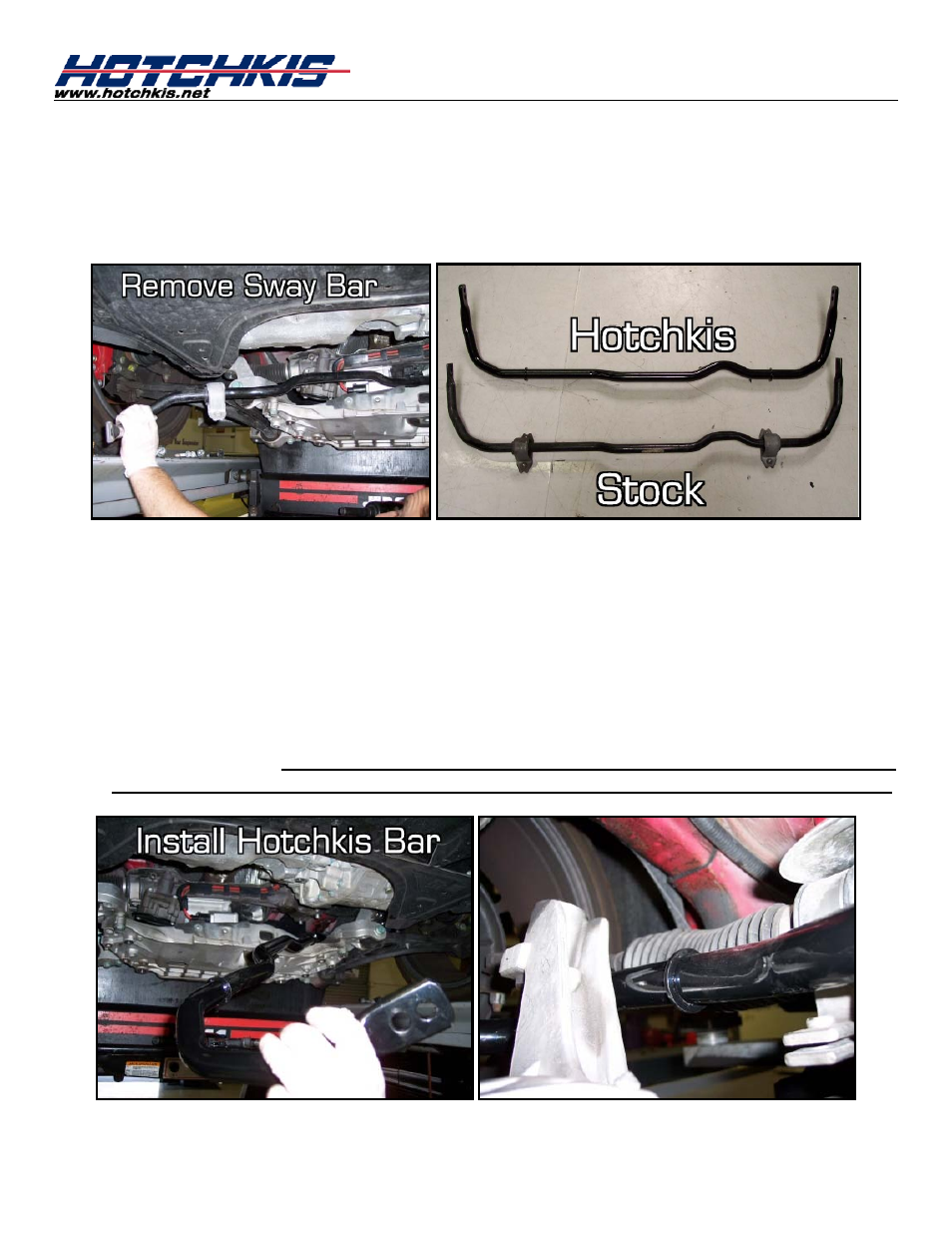

Remove the Front Sway Bar

It’s a tight fit between the subframe and the body, so it will take some patience removing the

sway bar. It also helps raising the front of the vehicle slightly to gain more clearance. The

bar comes out towards the front of the car. Try to remember how the bar comes out, for this

will be the same procedure getting the new Hotchkis bar in.

10F

Reinstall New Hotchkis Bar

Repeat steps 1F through 9F in reverse order. Your new Hotchkis bar uses new bushings and

brackets. The front bushing has a Ø1-1/16” hole. Use the supplied silicon grease to lube the

inside surface of the bushings. Make sure to use thread lock compound on the subframe

bushing bracket bolts and the end link nuts. The bushing brackets are slotted, so make sure

they are shifted towards the rear of the vehicle. Dish washer is used for the front bracket hole.

Please see pictures for more detail. When reinstalling the subframe you will need to use a jack

and a pry bar to align the mounting holes. Once the holes are aligned, start all 4 subframe

cradle bolts by hand to avoid cross threading. Make sure the steering column seal is popped

back into position.

Install the front end links onto the sway bar with the weight of

the car on it’s wheels. Do not install the end links while the suspension is in droop.
