High Lifter Lift Kit for Polaris 800 Ranger RZR (07-08) User Manual
Page 7

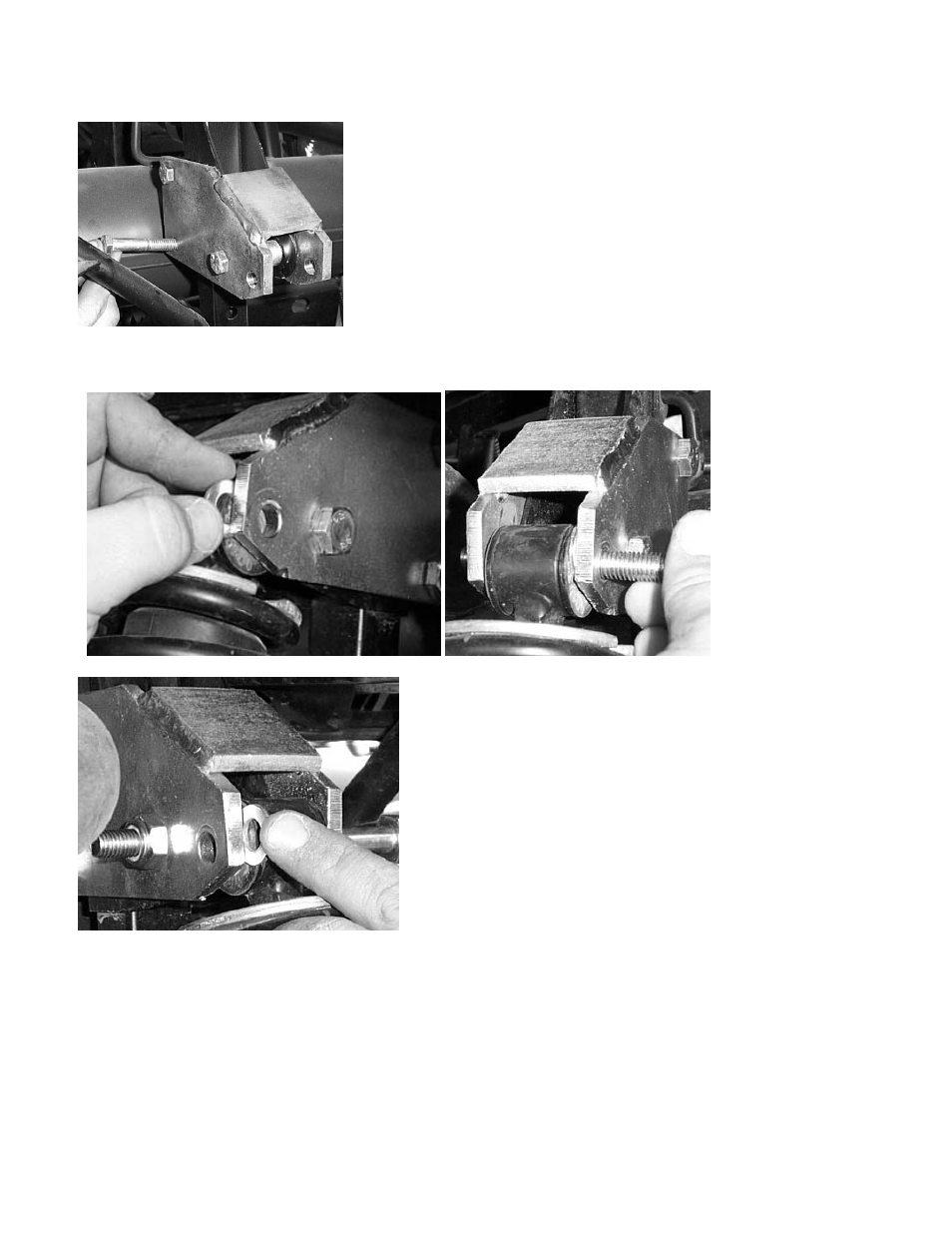

5) Finish connecting the back side of the rear lift bracket using 10mm x 70 mm bolts and 10mm lock
nuts.
6) Insert the top of the shock to the bottom of the bracket and fasten using the 10mm x 70mm hex bolt,
two 10mm flat washers, and 10mm lock nut. Place the 10mm flat washer on both sides of the top
shock, to the inside of the brackets and fasten tight with the 10mm lock nut.
7) Repeat this process on the other side.
8) Tighten all bolts to manufacturer’s torque specifications. Install the wheels, torque wheel lug nuts to
manufacturer’s specifications, lower and remove jack. Check for clearance problems or
misalignment.
9)
Re-torque lug nuts after the first ride.
7
