Rear lift – High Lifter Lift Kit for Polaris 800 Ranger RZR (07-08) User Manual
Page 6
Rear Lift
1) Place jack under ATV at the rear of the bottom skid plate and lift until the weight is off the
suspension. Be careful to secure the ATV properly so as not to fall off the jack.
2) Remove the wheels.

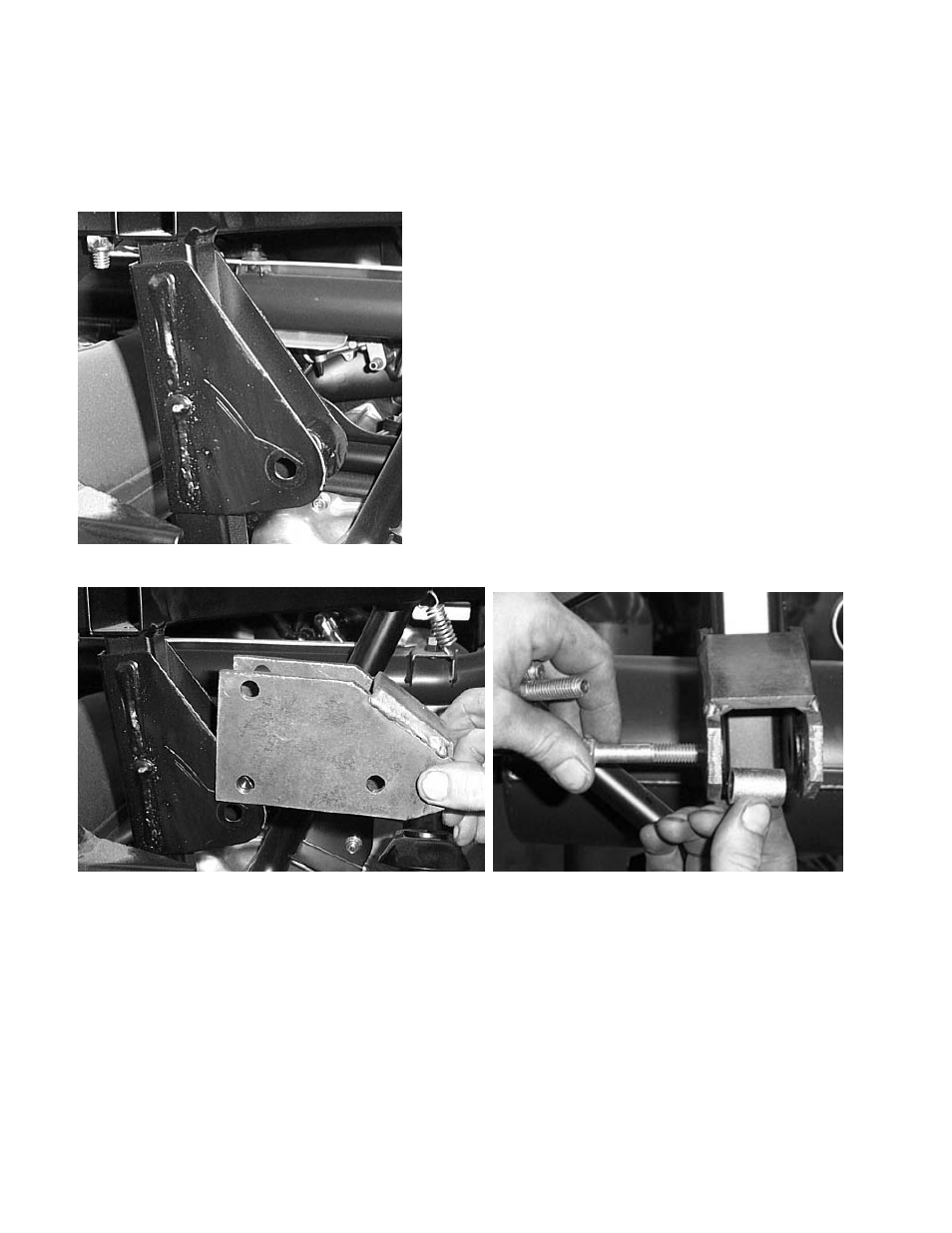

3) Remove the top of the shock from the frame and jack the ATV up an additional 1”-2”.
4) Place the rear lift bracket onto the frame and insert rear smaller spacer between the shock mounting
tabs.
6
