High Lifter Upper Straight Radius Bar for Polaris RZR 1000 XP (2014) User Manual
Page 5

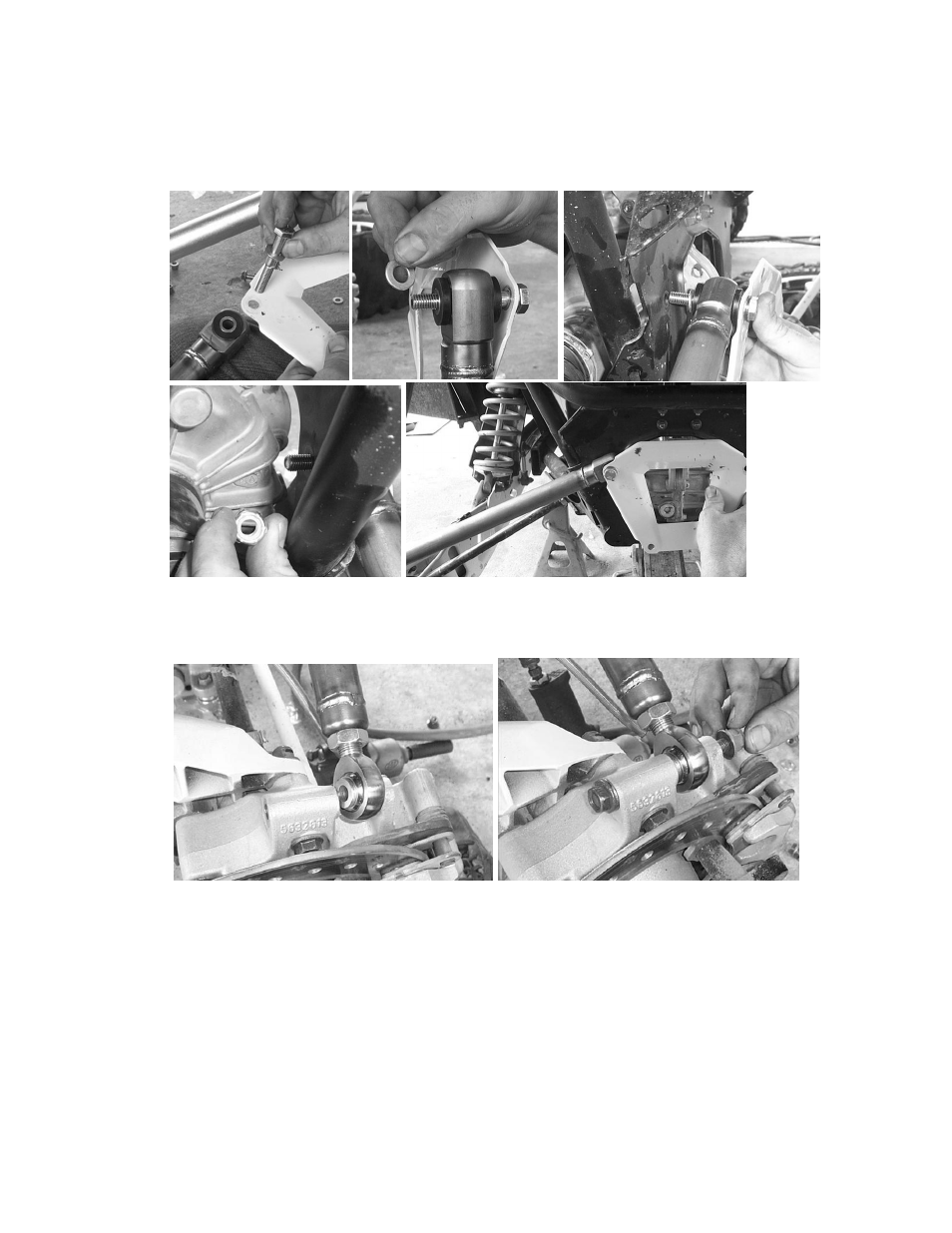

10. Once you have set the distance on the new rod attach it to the RZR. Attach the ends of
the radius bars to the RZR frame using the 10x65mm Hex Bolts, 3/8” Flat Washer
provided and the stock flat washer, and 10mm Lock Nuts provided in the kit.
11. Connect the new Heim Joint and Heim Adapters to the knuckle assembly using the stock
hardware.
12. Repeat step for the opposite side and lower the jack.
