High Lifter Upper Straight Radius Bar for Polaris RZR 1000 XP (2014) User Manual
Page 4

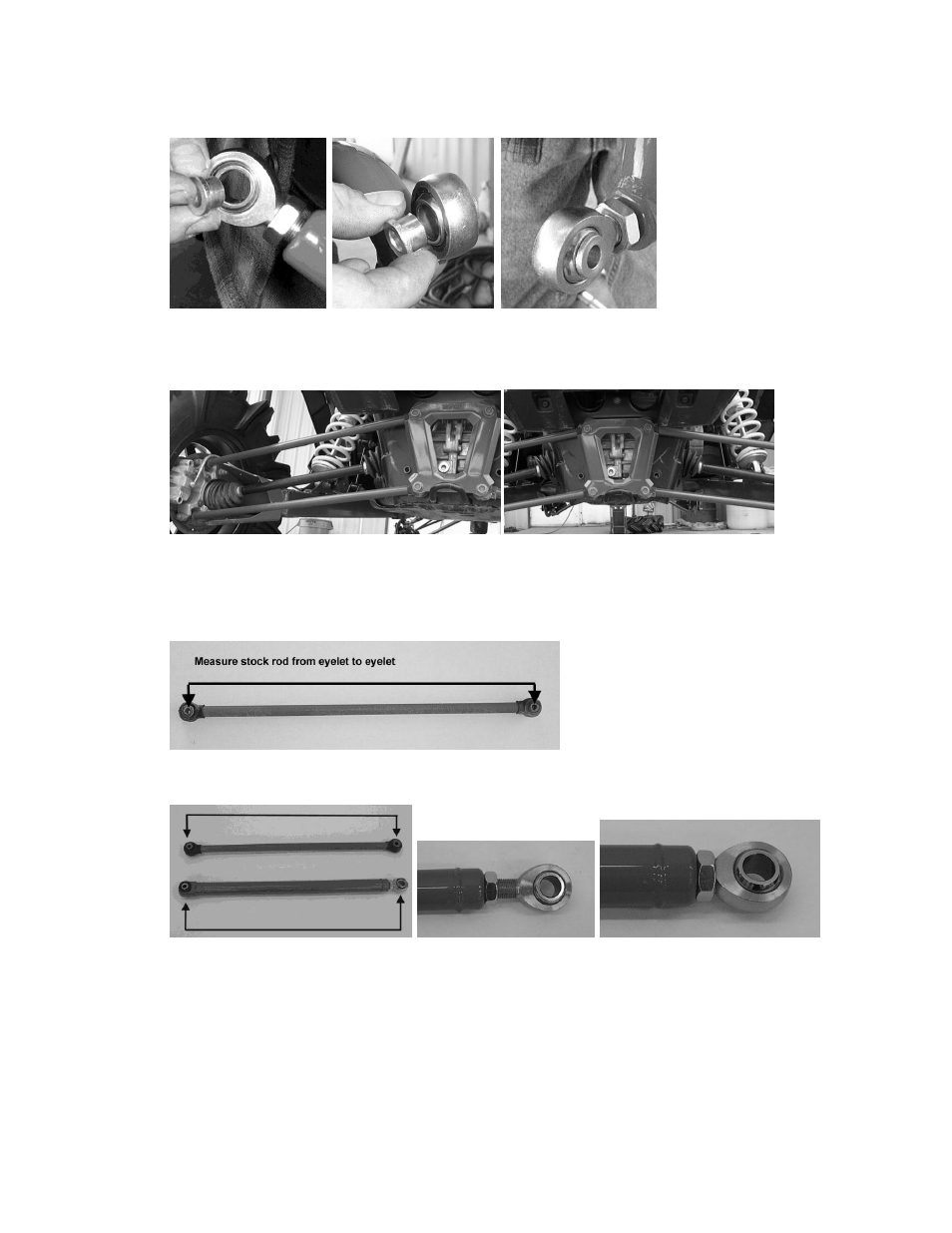

5. Insert the two heim adapters into the eyelet of the heim joint.
6. Once you have preassemble the radius bars, jack up the rear of the RZR enough so that
the rear arms drop to full extension and the tires are off the ground.
7. Disconnect the rear stock upper radius rods.
8. When you have removed the rods you will need to take a measurement of the rod.
Measure from eyelet to eyelet. You will need to adjust the new radius rod to this
distance.
9. Set the distance on the new rod by adjusting the heim joint and jam nut.
