7) Install the bottom of bracket “F” on the outside bolt of bracket “C” (bracket on top
of shock), and attach the top of bracket “F” to the bottom of the support bracket
using the 5/16 bolt and 5/16 nylock nut.
8) Install bracket “E” on the torsion bar and axle using the factory bolts. This bracket is
just like the factory bracket except it is slightly larger.
9) Repeat this process on the other side.
10) Tighten all bolts to manufacturer’s torque specifications. Install the wheels, torque
wheel lug nuts to manufacturer’s specifications, lower and remove jack. Check for
clearance problems or misalignment.

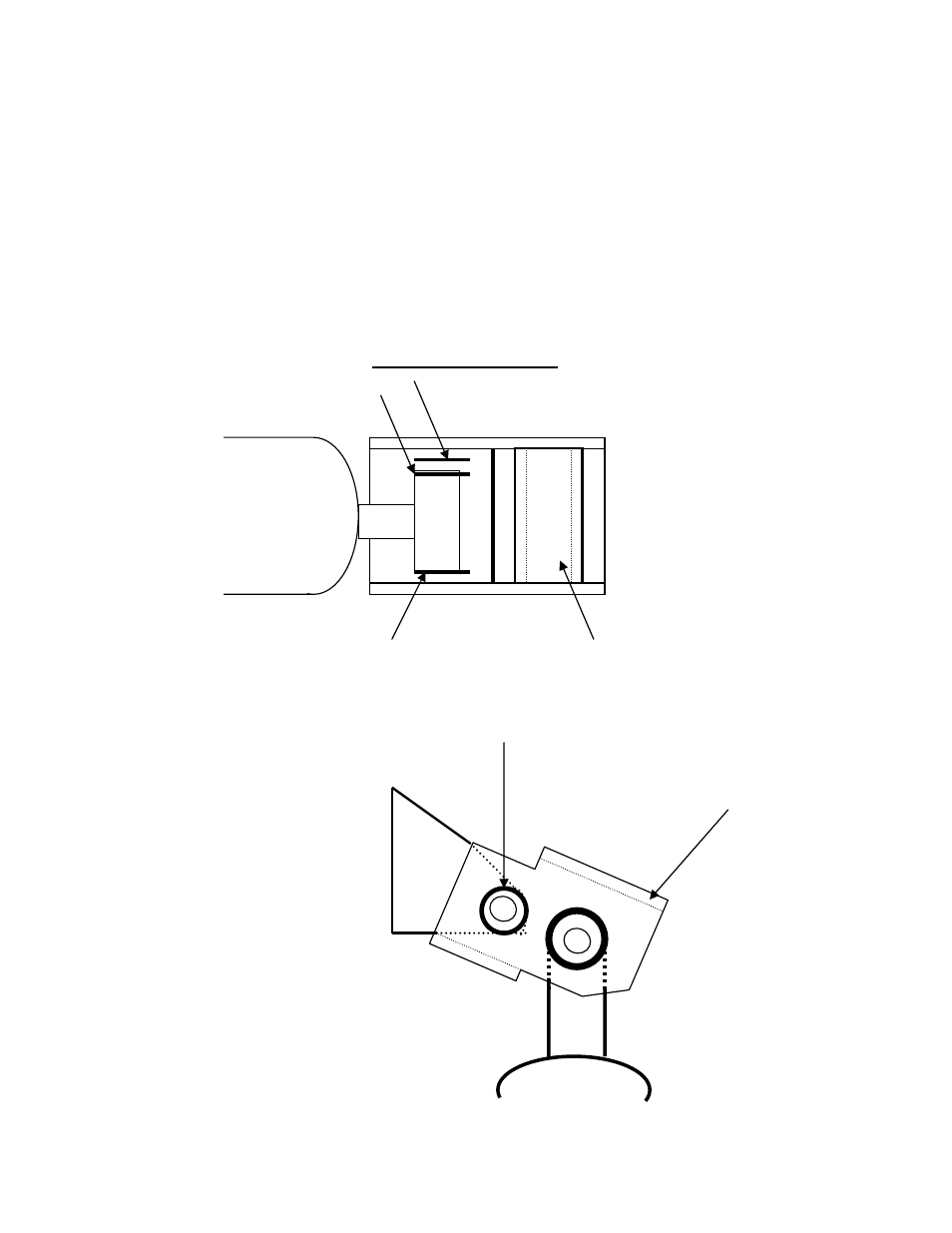

Rear Installation
Washer
Shock C D
Washer Spacer
D
Spacer
D
Bracket C
Shock
Mount
Shock
