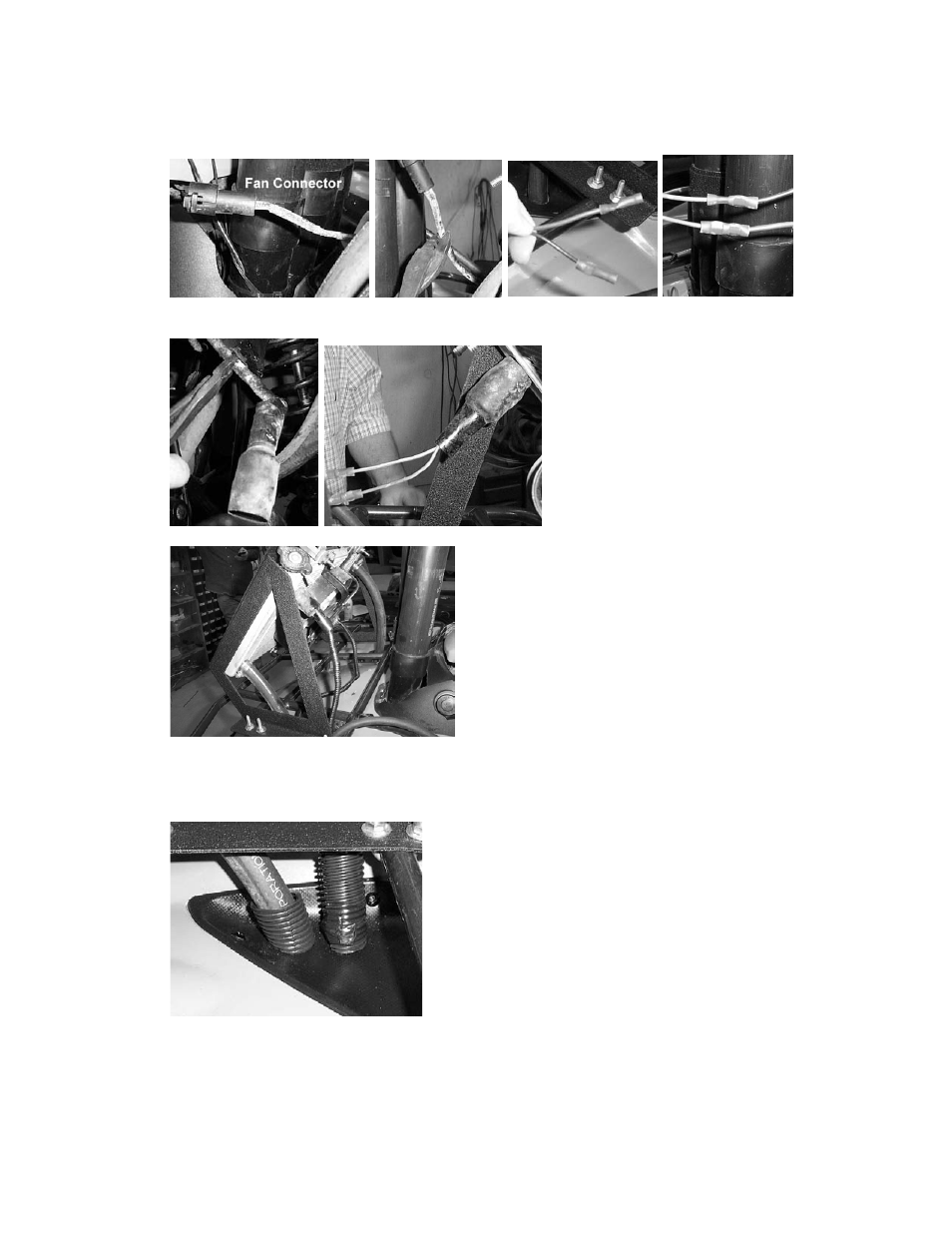

13. Next, cut the wire connector on the back of the fan and extend it using the wires and butt
connectors provided. (Make sure to wrap connectors with electrical tape)
14. Now extend the thermo switch wires and connect the thermo switch to the back of the
radiator. (Make sure to wrap connectors with electrical tape)
15. Make sure to wrap all wires using the wire loom provided in the kit to prevent rubbing.
16. VERY IMPORTANT: Place the protective sleeve around the hoses to keep them from
rubbing on the rack. If the hose is left unprotected the vibration of the hose against the
rack will cause a hole to form in the hose.
17. Use all zip ties provided in the kit to secure all lines, hoses, and wires to that they do not
allow rubbing and
