High Lifter Radiator Relocation Kit - Kawasaki Brute Force 750i (05-11) User Manual
Page 6

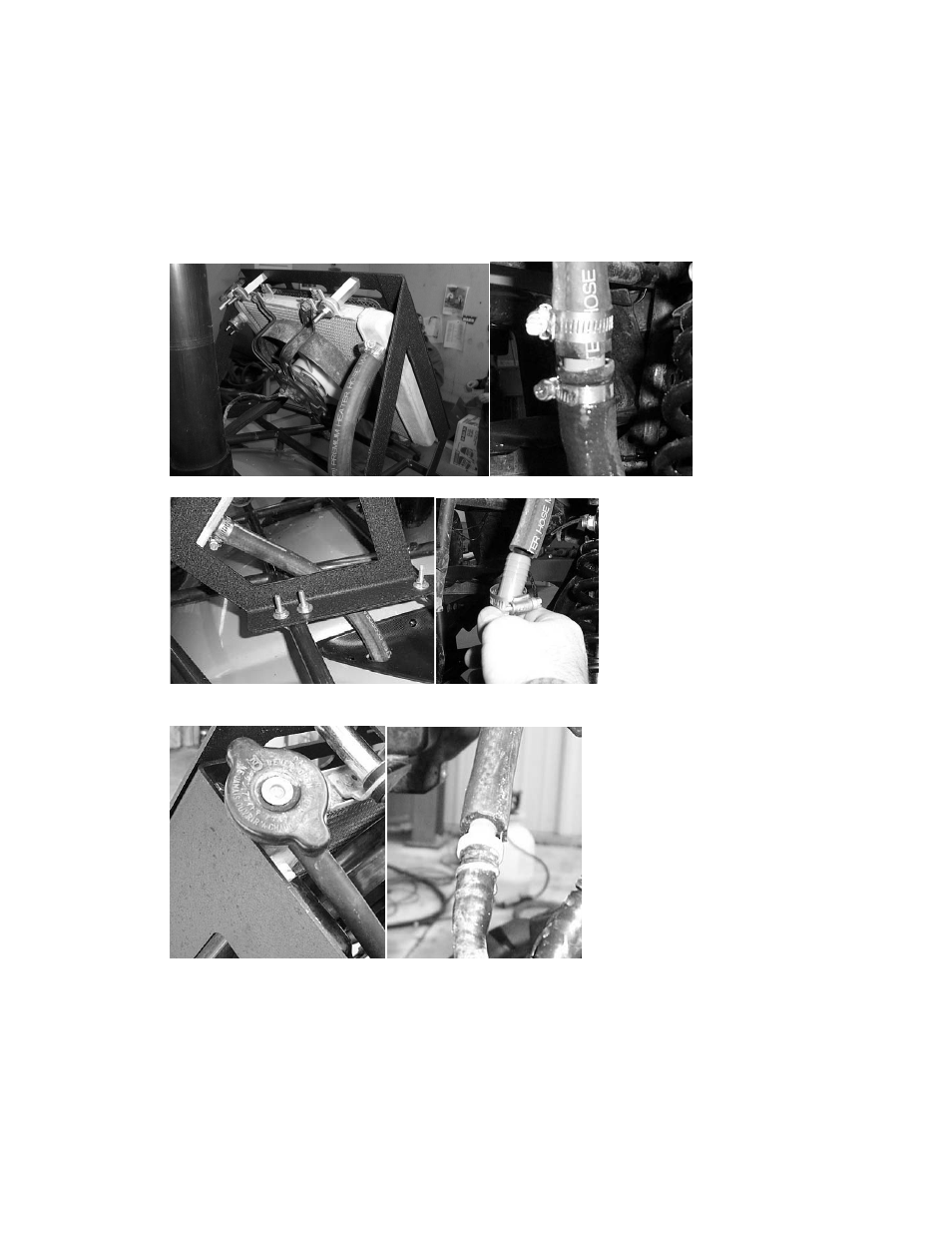

11. Run the hoses from kit to the inlet and outlet hoses that are still attached to the engine.
You will need to cut to length. Using the clamps provided in the kit connect the hoses to
the inlet and outlet ports on the radiator. You will join the new hoses to the old hoses you
left attached to the engine using the fittings and clamps provided in the kit.
Inlet Hose Images:
Outlet Hose Images:
12. Connect the overflow hose to the radiator and to the stock hose using the ¼” hose barb.
Use a zip tie to secure the hose to barb.
