High Lifter Lift Kit for Honda Rubicon 500 (01-13) - Signature Series User Manual
Page 6
5)

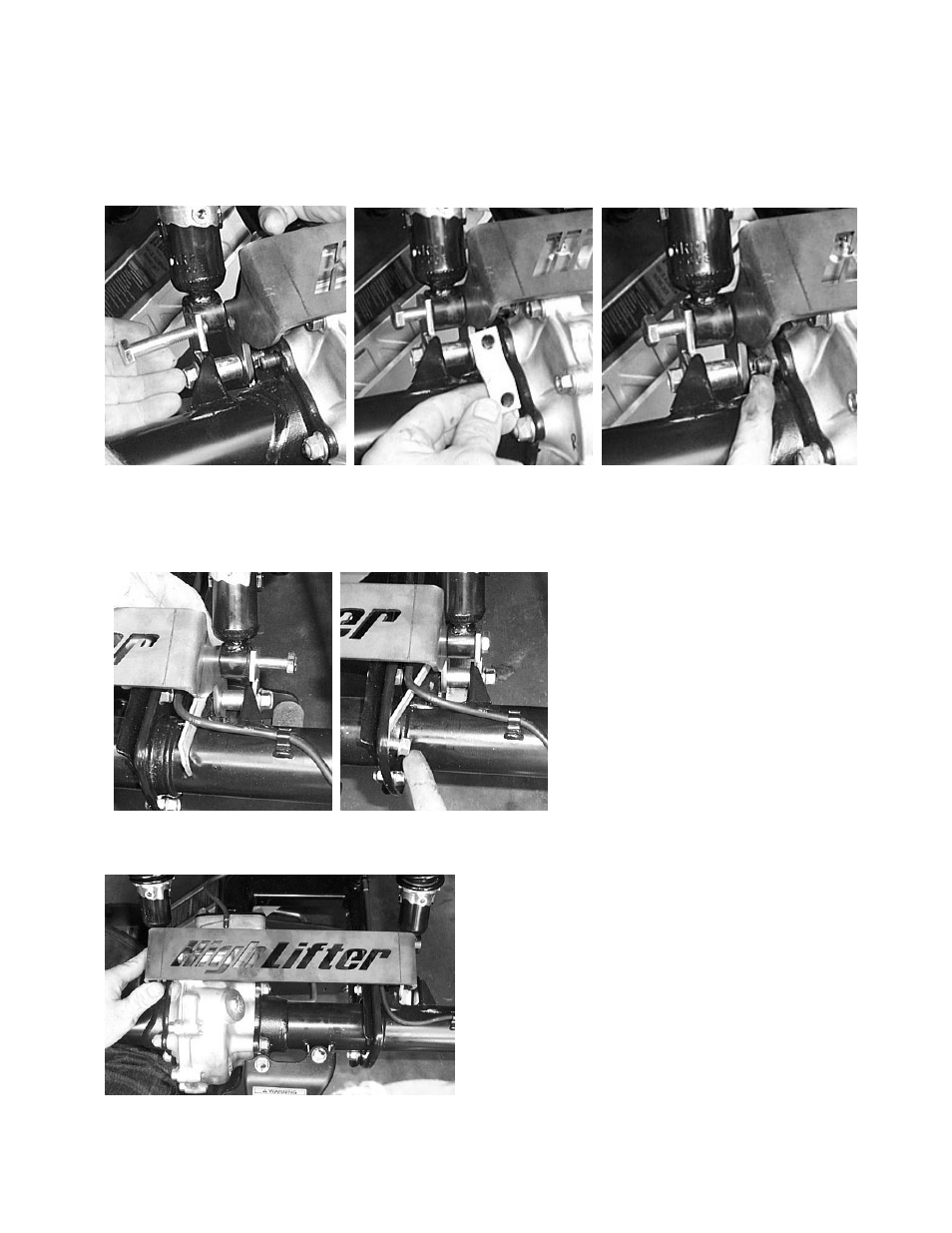

Now connect the shock to the lift brackets. You will also need to connect the Left and Right Rear
Lift Brackets.
6)
Left Side Installation: Using a 10x55mm hex bolt connect the shock to the bracket, placing the Left
Rear lift bracket to the inside of the Large Lift Bracket. Secure it with a 10mm lock nut. Connect the
Left Bracket to the bolt location where you had earlier removed the nut. Connect it with the factory
nut.
7)
Right Side Installation: Using a 10x55mm hex bolt connect the shock to the bracket, placing the
Right Rear lift bracket to the inside of the Large Lift Bracket. Secure it with a 10mm lock nut.
Connect the Right Bracket to the bolt location where you had earlier removed the bolt and nut.
Connect it with the factory bolt and nut.
8)
Make sure to tighten all bolts and if you removed the wheels to torque lugs to factory specifications.
