High Lifter Lift Kit for Kawasaki Brute Force 750i (05-14) - Manual (Page 4)

4
6) Repeat steps for opposite site.
7) When complete reattach wheels torque all lugs to factory specks and lower ATV.
Rear Lift
1) Place jack under ATV at the rear of the bottom skid plate and lift until the weight is off of the
suspension. Be careful to secure the ATV properly so as not to fall off the jack.
2) Remove the top of the shock from the shock mount.
3) After removing the shock, jack the ATV up 1”-2” further.
4) Place the tube bracket in place over the shock mount. Like the front place the large spacer between
the OEM shock mounting tabs and place the small spacer inside the tube bracket next to the shock.
Make sure to place the bracket in the manner displayed, with the angle to the top and to the inside
next to the frame. You do not use the washers on the rear.

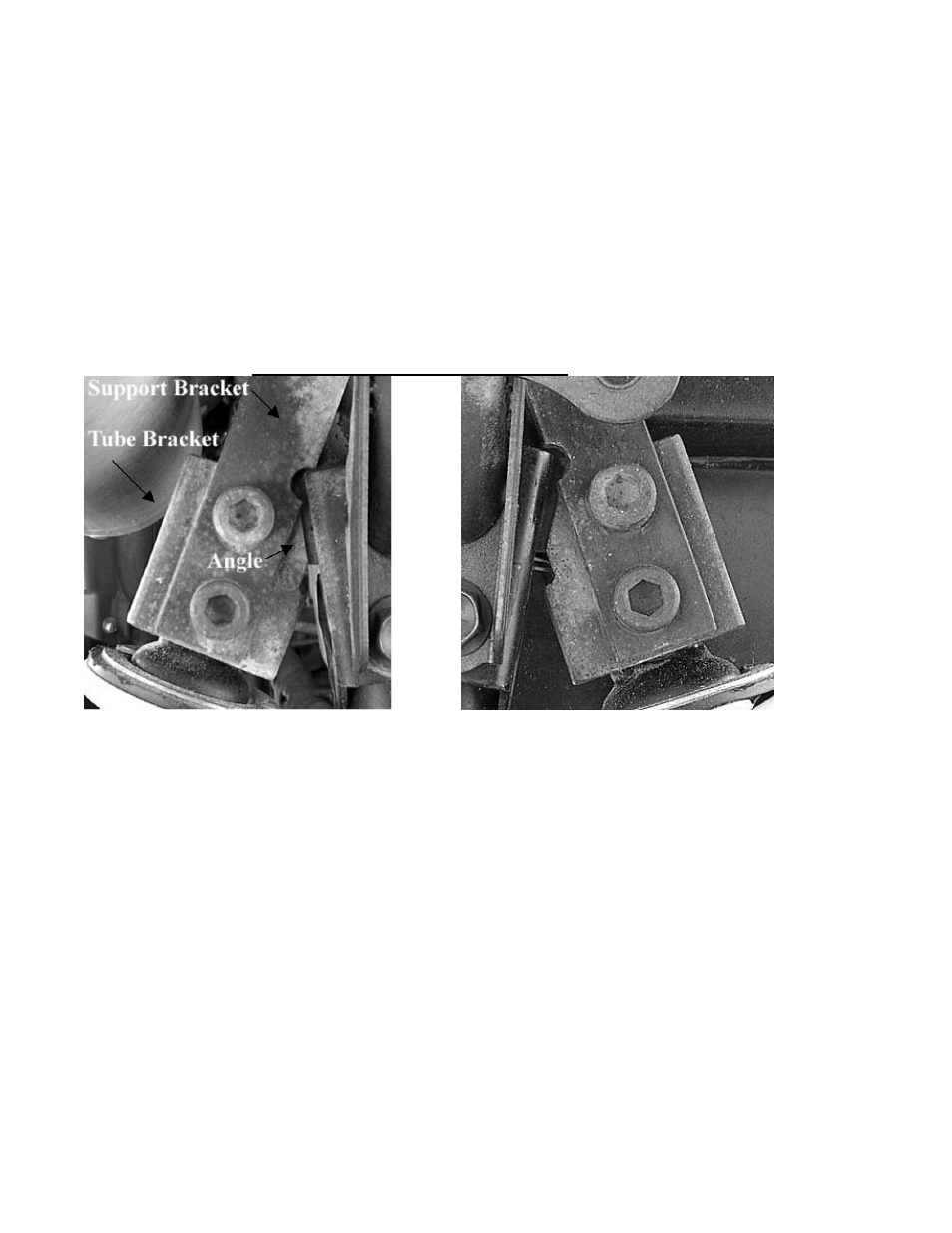

Left Side Right Side
***This is a view from the rear.***
