Rear Lift
Left Side
1) Place jack under ATV at the rear of the bottom engine skid plate (not the differential), and lift until
the weight is off of the suspension. Be careful to secure the ATV properly so as not to fall off the
jack.
2) After removing the bottom of the shocks, jack the ATV up an additional 1”-2”.
3) Remove the top nuts on the left side of the differential housing, closest to the shock mount.
4) Place bracket “J” on the left outside of the shock mount (notch up).
5) Place spacer “F” on the inside of the shock mount, secure this with the stock OEM bolt. Do not
tighten yet.
6) Place the bottom of the shock (bottom shock eyelet) between brackets “J” and bracket “G”, placing
two 10mm Washers between the left of the shock mount and bracket “J “ securing this with a
10x45mm Bolt. Install bolt from right to left.
7) Place bracket “G” to the differential housing, securing it to the housing with the OEM bolts.
8) DO NOT TIGHTEN NUTS AND BOLTS AT THIS TIME. TIGHTEN AFTER
COMPLETION OF RIGHT SIDE.

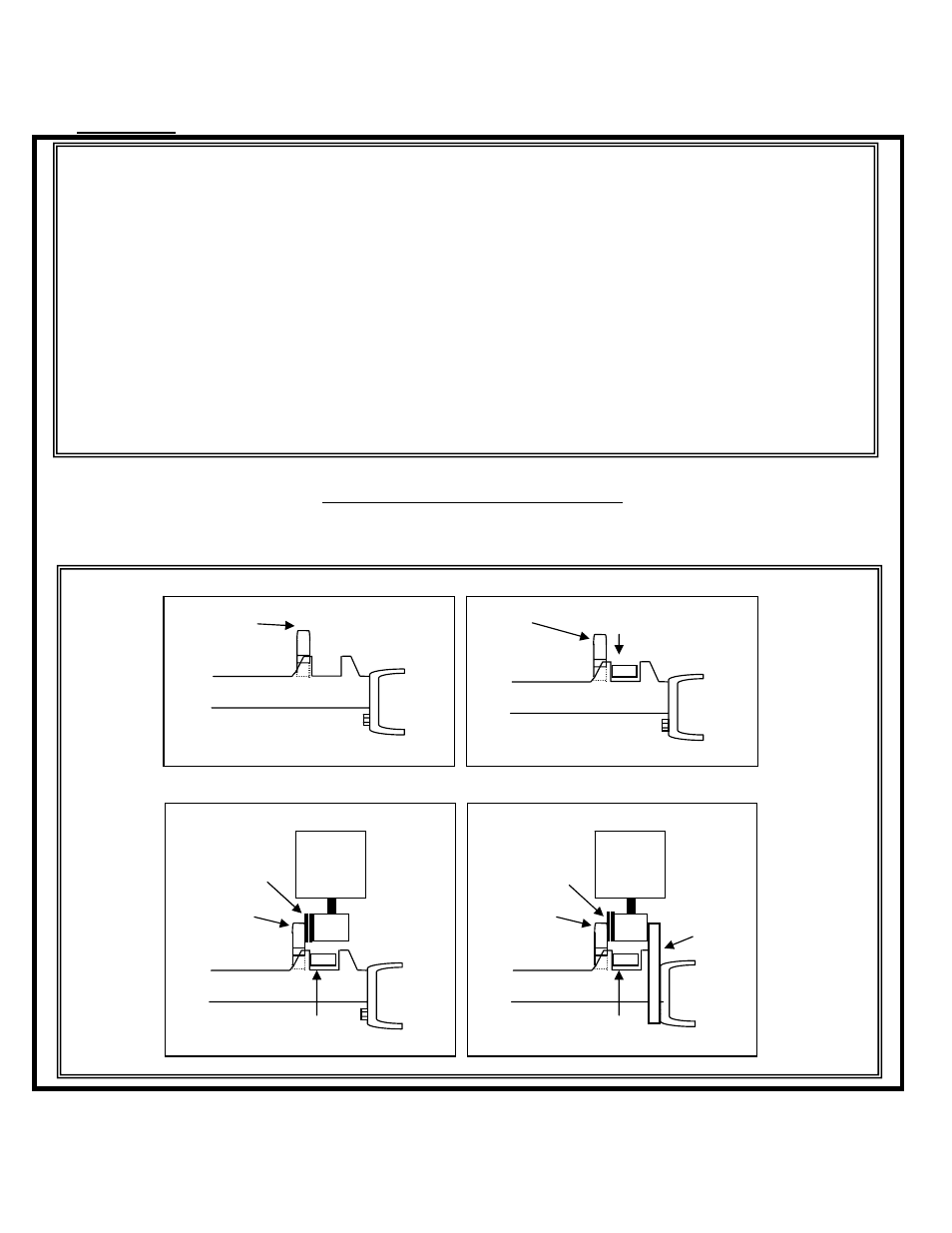

Left Rear Installation Diagram
1 2
J J F
Notch Up Notch Up
3 4
10mm Washers 10mm Washers
J J
Notch Up Notch Up
G
F F
