High Lifter Lift Kit for Arctic Cat Prowler 1000 User Manual
Page 9
9
Logo Plate Installation
1. High Lifter provides two methods to secure the logo plate to the tail gate. We have in this kit
self-tapping screws or ¼” button head bolts.
2. If you choose to use the button head bolts, you will need to pull the tail gate off and
disassemble it to attach the logo plate.

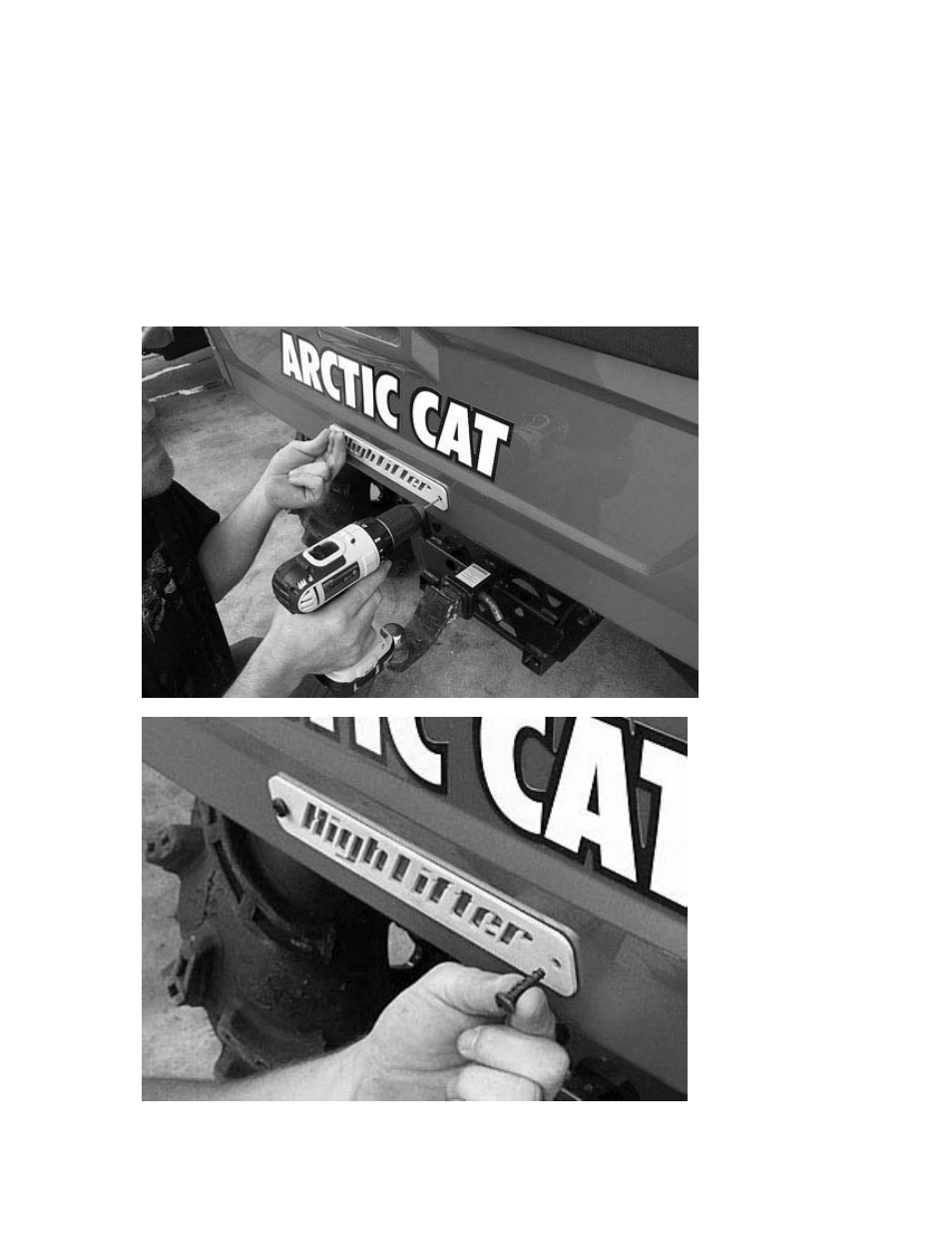

3. If you choose to use the self-tapping screws then all you need to do is place the logo plate in
the center of the tail gate, drill a pilot hole, then attach with the self tapping screws.
4. The photos used in the illustration are using the self tapping screws.
