High Lifter Lift Kit for Arctic Cat Prowler 1000 User Manual

Page 7

Text mode
Original mode

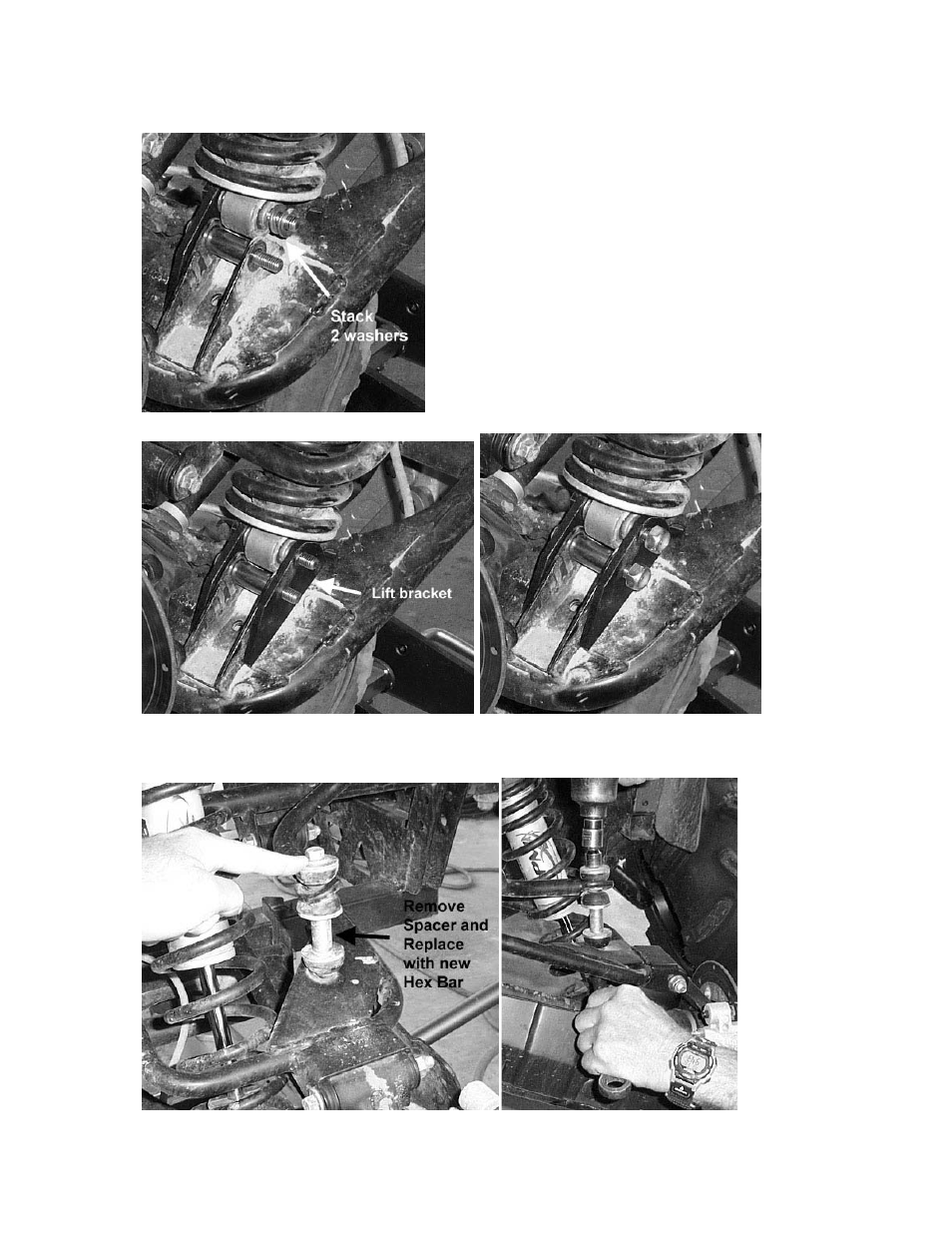

8) Insert the bolt through the shock and then stack two more washers on the bolt.

9) Place the one right lift bracket next to the shock mount and secure it using two 10mm lock nuts.

10) Now disconnect the rear stabilizer bar from the UTV.
