Rear Lift
1) Place spacer “G” on the inside of the shock mount.
2) Place bracket “D” with the angled notch down and inwards over the shock mount, securing both
spacer “G” and bracket “D” with the OEM bolt and nut.
3) Place top of shock into the bottom of bracket “D” and place spacer “F” between the outside of
the shock eyelet and the inside of bracket “D”, secure these with a 10x65mm bolt.
4) Tighten all bolts to manufacturer’s torque specifications, on BOTH THE LEFT AND
RIGHT SHOCK MOUNT!
Both Sides
‰
Tighten all bolts to manufacturer’s torque specifications.
‰
Lower and remove jack.
‰
Check for clearance problems or misalignment.

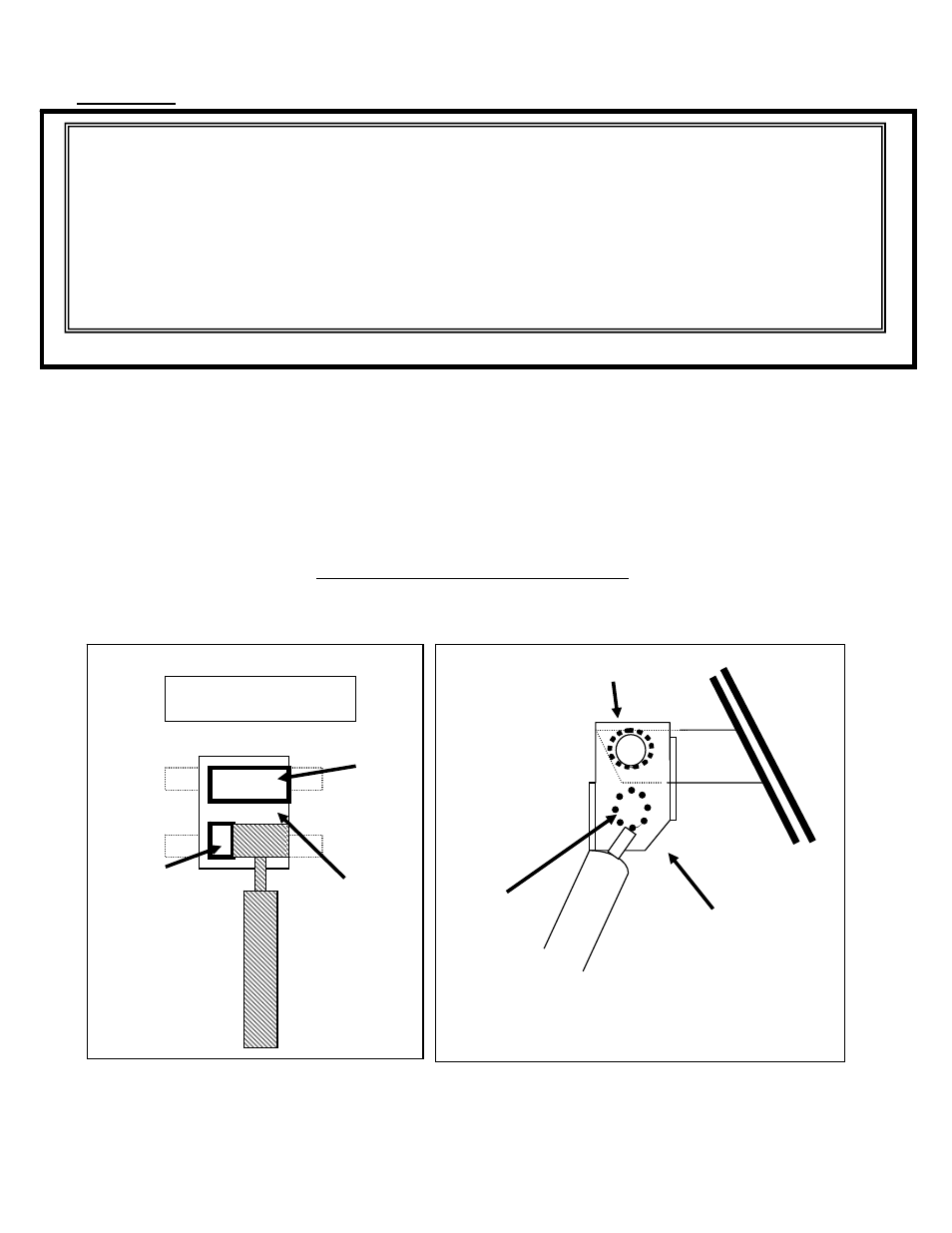

Right Rear Installation Diagram
Note: This diagram is for graphical representation, the actual angles of the shock and mounting
bracket will differ from the diagram.
Side View
G
G
F D
F D
