High Lifter Radiator Relocation Kit - Polaris 800 (05-14) - Manual (Page 4)

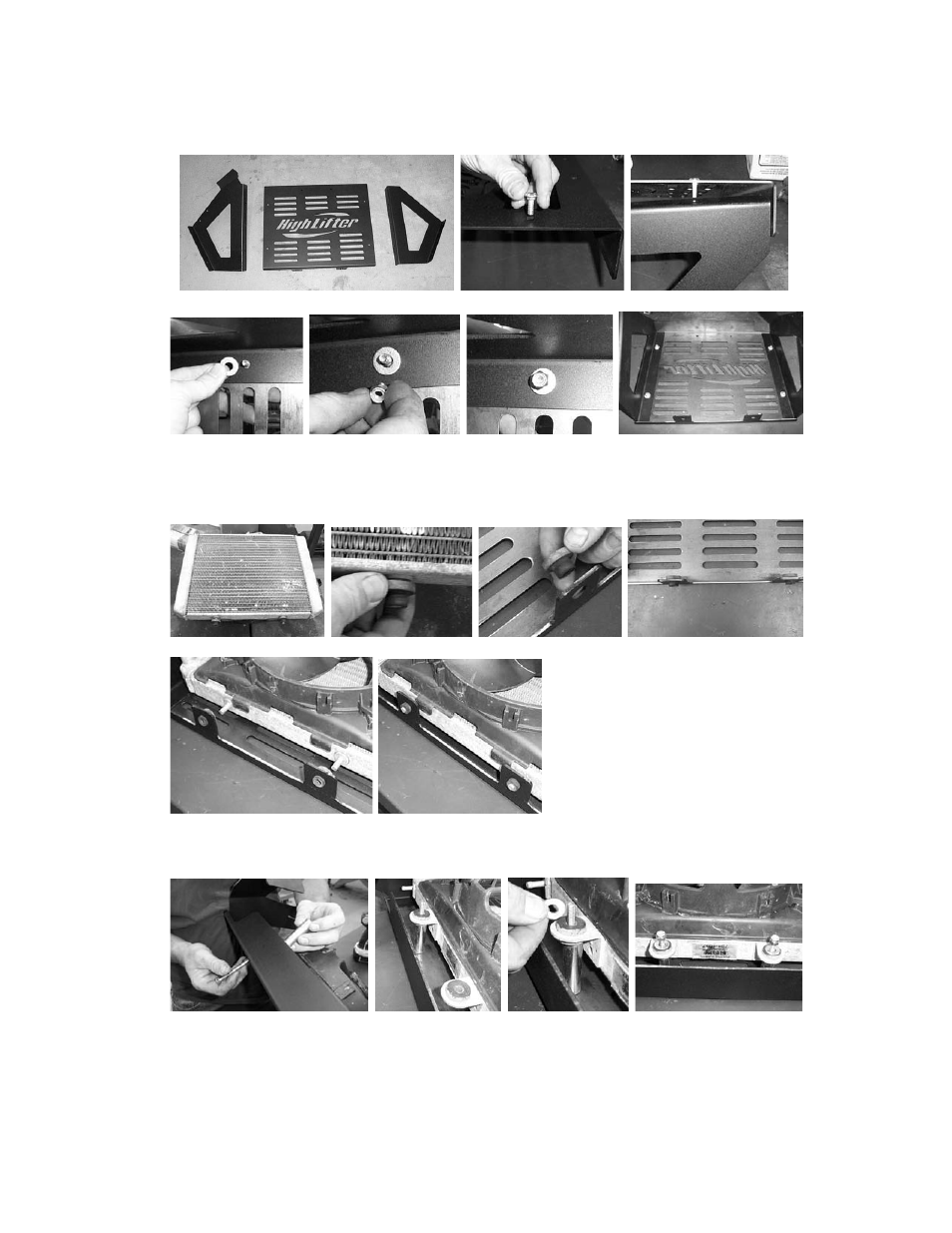

6. Preassemble the new radiator relocating kit. Assemble the frame using the ¼ x ¾
carriage bolts (4ea), ¼ lock nuts (4ea), and ¼ flat washers (4ea).
7. The bottom of the stock radiator has two rubber grommets that you will need to place in
the holes at the base of the new face plate. Once they are installed insert the bottom of
the radiator into the grommets.
8. Attach the radiator to the kit. Insert the ¼ x 3 ½ carriage bolts through the top of the face
plate. Place the two large spacers onto the bolt. Next place the radiator onto the bolts
and spacers, then fasten the radiator with the ¼ flat washers and ¼ lock nuts.
