High Lifter Max Clearance Rear Lower Control Arms for Polaris RZR 800 "S & "4"" User Manual
Page 4
4

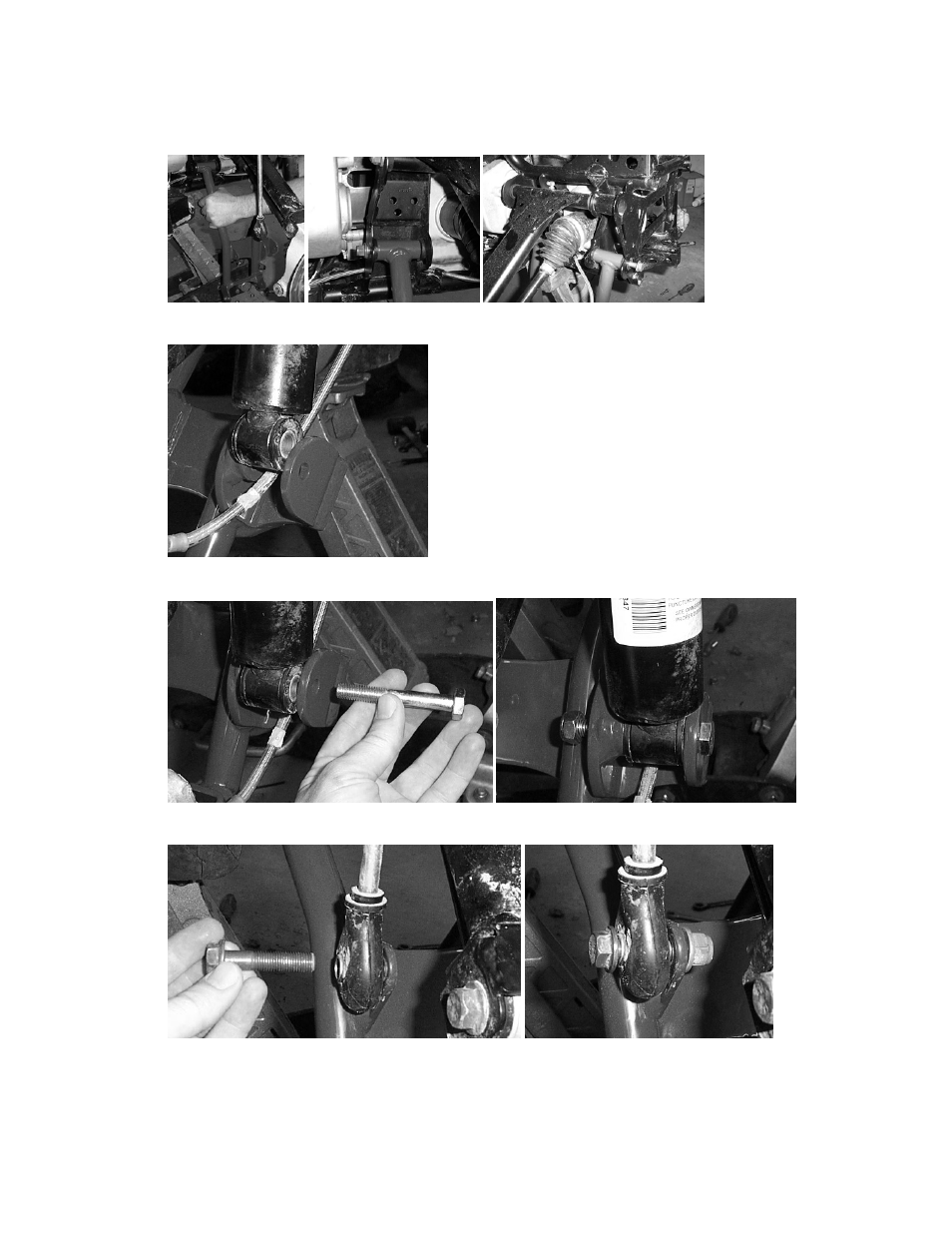

6) When the bushing and sleeves are in place connect the new lower control arms to the
frame using the stock hardware.
7) Before you connect the lower shock to the new control arm, make sure to run the
brake line trough the shock mount.
8) Connect the lower shock to the new control arm by using the 10x70mm bolt and
10mm lock nut.
9) Connect the stabilizer bar to the new lower control arm using the stock hardware.
