High Lifter Pen-Lock Kawasaki Differential Lever Locking Assembly User Manual
Page 3
5. Now, pull the differential locking handle and press the button. This should lock the handle in place.
After being engaged, the button should pop up when the differential locking handle is squeezed,
indicating that the differential lock is disengaged.

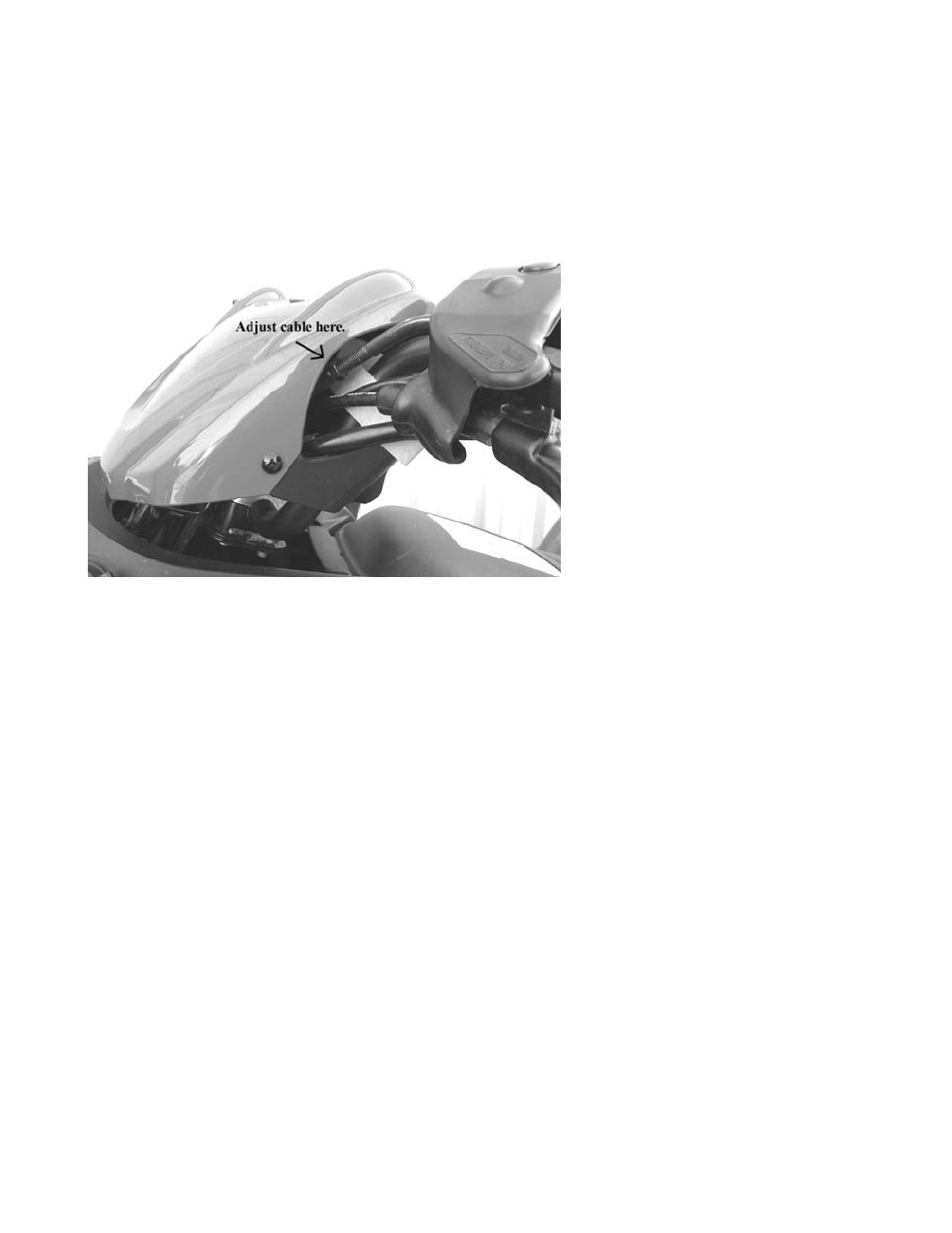

6. After installation, if the differential does not achieve full lock, you may need to adjust the tension on the
differential locking handle cable. You can do this by adjusting the cable nut underneath the plastic that
covers the handlebars.
3
