High Lifter Pen-Lock Kawasaki Differential Lever Locking Assembly User Manual
Page 2

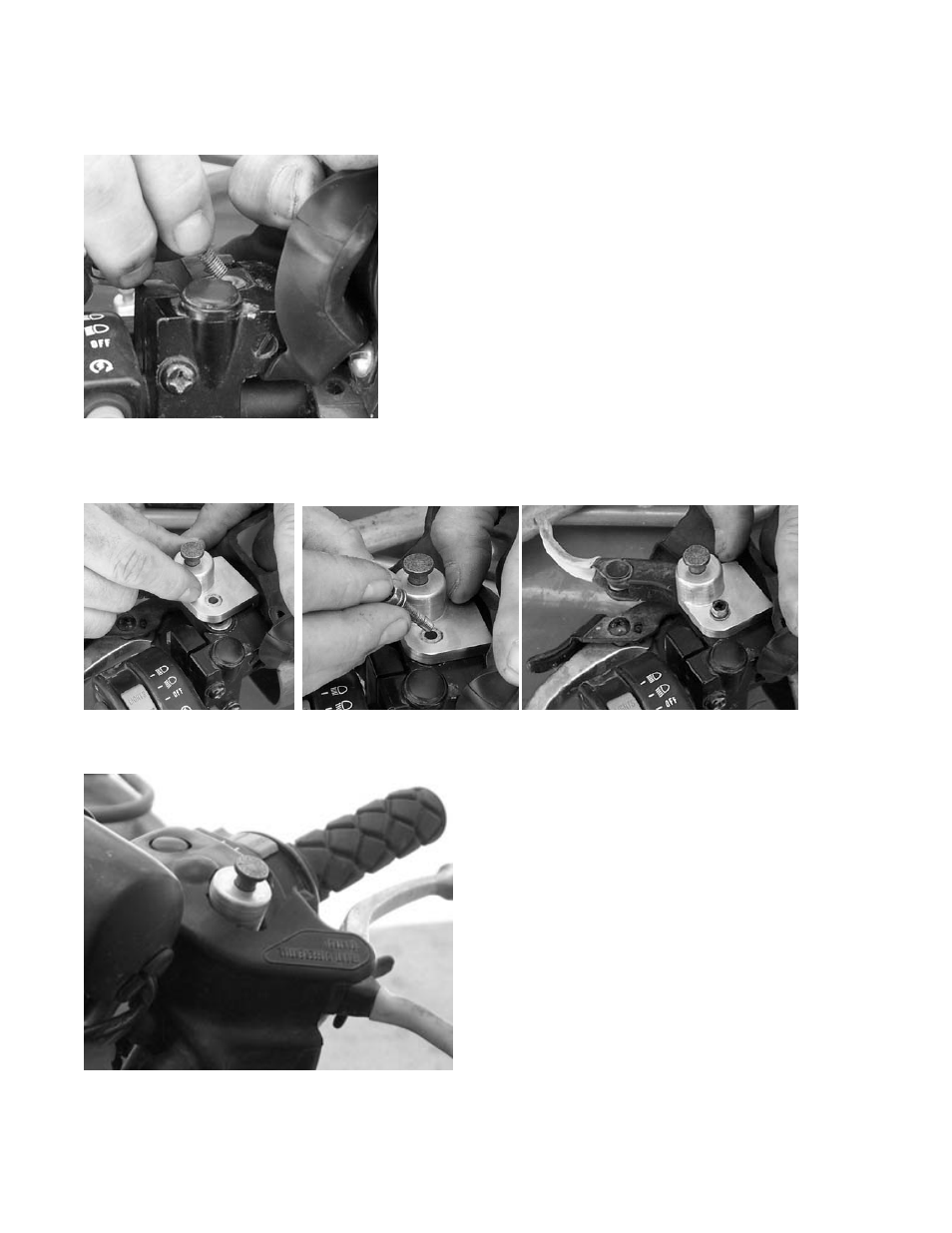

2. Once the hole has been cut in the boot, pull the boot back to expose the handle screw. Remove the
screw.
3. Place the differential locking button plate on to the handle bar align the hole in the Pen-Lock with the
hole on the differential locking handle. Fasten with the 5mm bolt provided with the kit.
4. With the button in place pull the boot over pushing the button through the hole that was cut in the boot
earlier.
2
