High Lifter Lift Kit for Can-Am Outlander - Signature Series - Manual (Page 4)

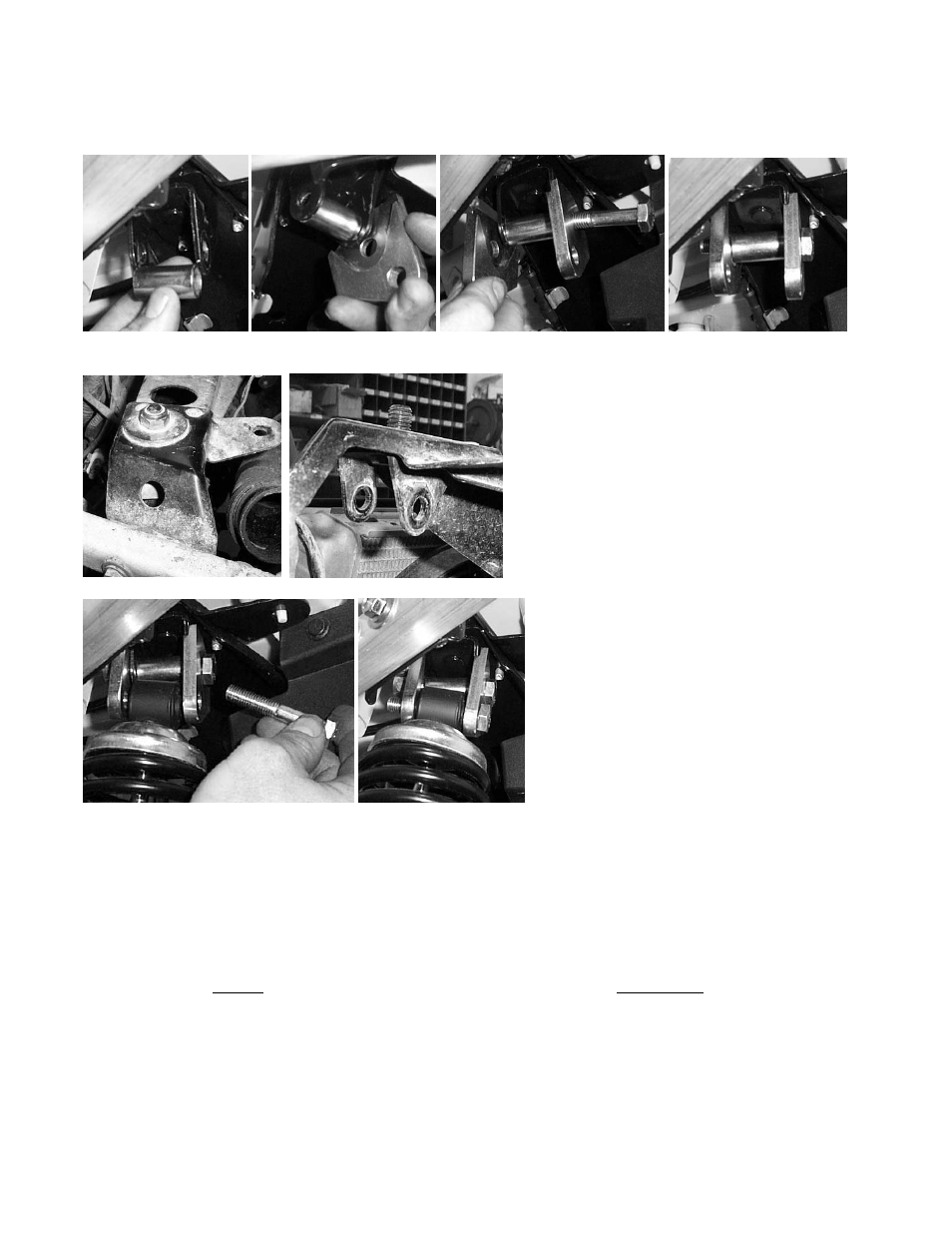

8) Insert the small spacer in the shock mount tab and place the Front Lift Brackets on either side of the shock
mount tabs. Secure the brackets and spacer using 10 x 60mm hex bolt and 10mm lock nut.
NOTE: If the brackets do not fit just right the Stock Shock Mount is Adjustable and can be moved. You
may need to adjust it to make the brackets fit properly.
9) Connect the top of the shock to the lift brackets using the 10 x 60mm hex bolt and 10mm lock nut.
10) Repeat these steps for opposite side.
11) Make sure all lugs are torque to factory specifications.
12) Place wheels back onto ATV and lower jack.
Aligning the front wheels
1. Make sure that the handlebars are straight.
2. Take a tape measure and measure from a flat spot on the front and back ends of the tire.
3. They must both be the same distance. If they do not then you will need to adjust the tie rods in or out.
NOTE: A slight toe out makes the steering less sensitive and the ATV more stable. When adjusting the toe,
be sure to take the time to adjust both ends half the required distance.
