High Lifter Lift Kit for Can-Am Outlander - Signature Series - Manual (Page 3)

Front Lift Installation
1) Place ATV transmission in park. Place jack under center of ATV front end and lift until front wheels clear
the ground. Be careful to support ATV properly so that it is securely supported so that A-arms and shocks
can droop to full extension.
2) Remove front wheels.
3) Disconnect the bottom of the front shock from the control arm.

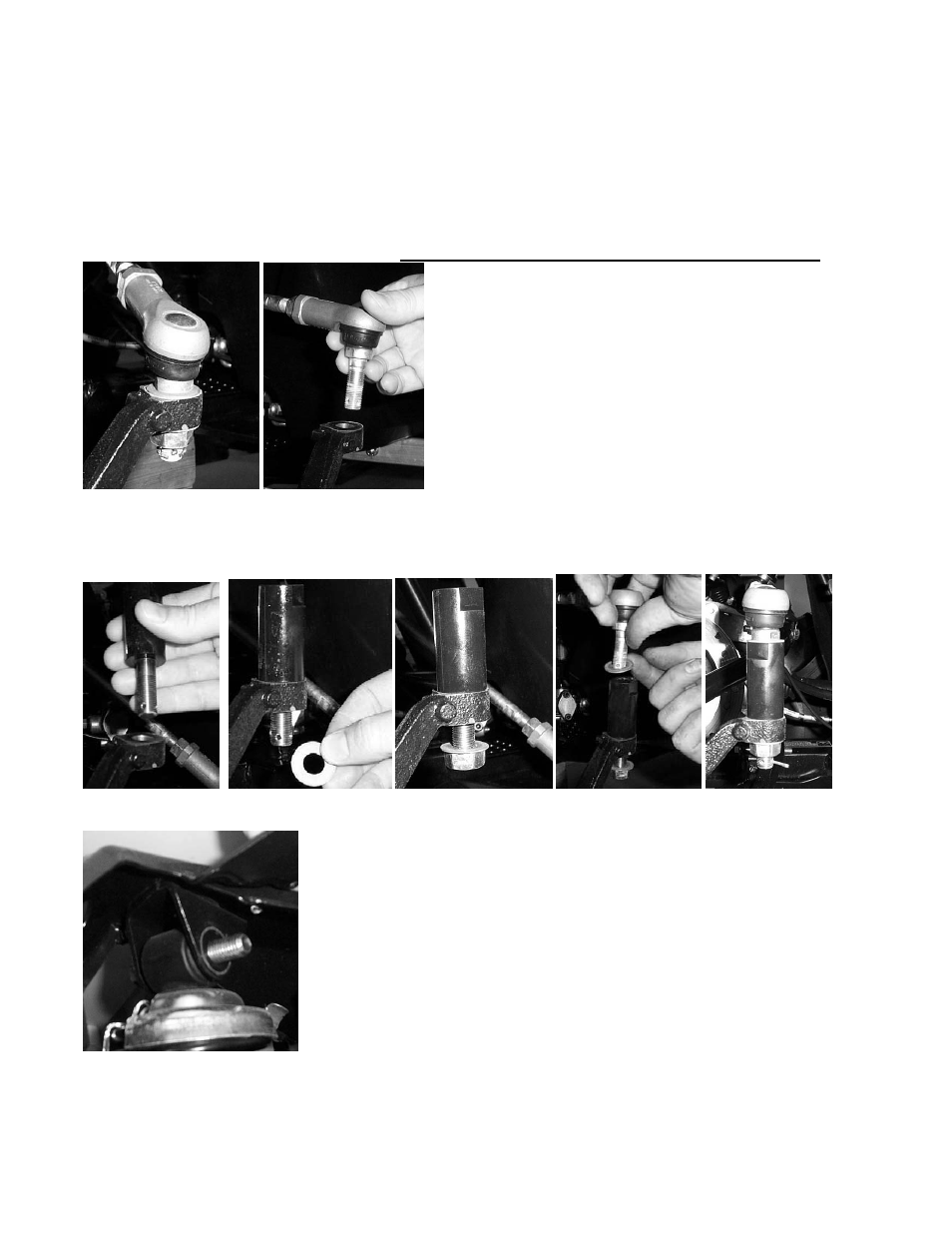

4) Remove the front tie rods from the ATV. NOTE: You will reuse the tie rod ends and washers!
5) Connect the tie rod ends to the new tie rods. Make sure to notice the grooved end of the new tie rod. This
end has the left handed threads. This will be connected to the tie rod end that is attached to the knuckle /hub
assembly.
6) Next, connect the new tie rod lift brackets to the steering knuckle using the washers.
7) Disconnect the top of the shock from the ATV.
