Bracket f installation (top view) – High Lifter Lift Kit for Polaris Sportsman 700 (02-06) User Manual
Page 7
Shock

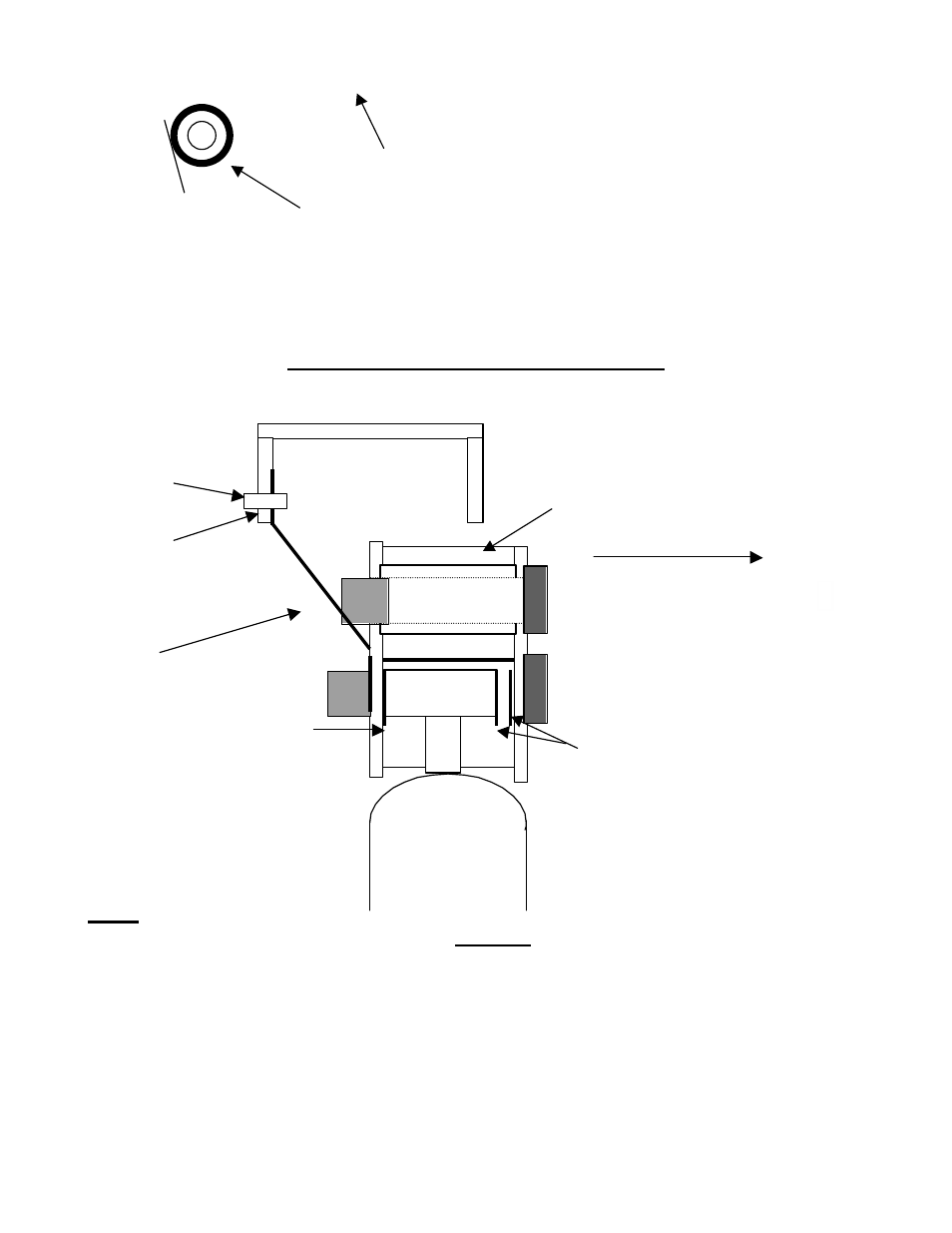

Bracket F Installation (Top View)
5/16”x ¾” Bolt
Spacer D
Drill 3/8” Hole
“F”
Washer
Washer
Shock
*NOTE:
Lift kit Bracket is installed in an approximately horizontal position. Stabilizer prevents end with shock
bolt from rotating up and down.
The purpose of this bracket is to keep lift bracket from rotating and making an excessive angle, by not
allowing the rear a-arms to fully droop.
Temporarily tighten the brackets “D” and “F” to drill the hole. Make sure bracket “D” is pushed up
as high as possible while tightening or the lift will add too much.
Vertical Frame Support
Factory bolt will be near the left edge, not
center
Bracket F
Drill 3/8” Hole for 5/16”
x ¾” Bolt
Rear View of Muffler
Front
Of
ATV
