9

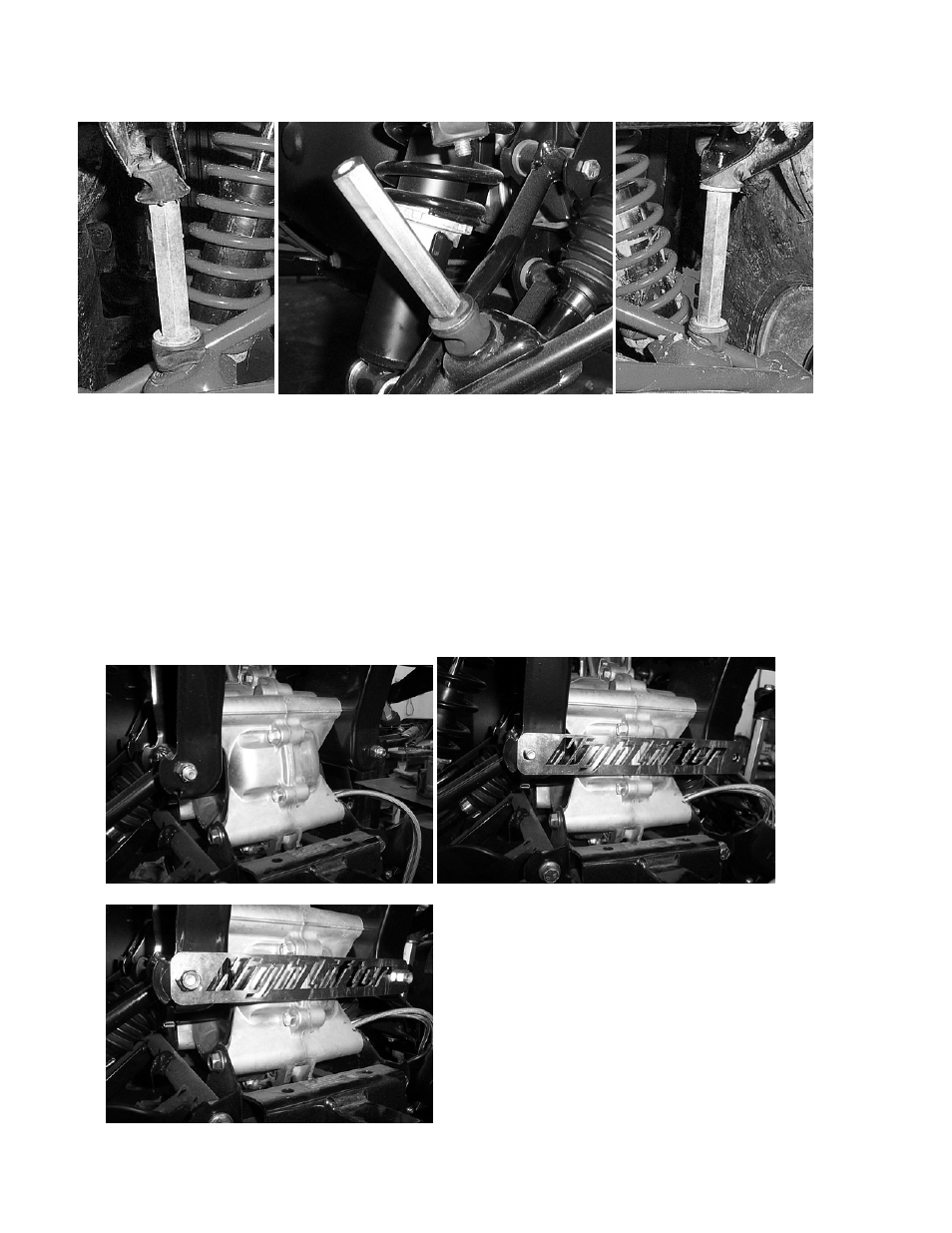

9) Remove factory the torsion bar bracket and install new bracket on the torsion bar and axle using the
factory bolts. This bracket is just like the factory bracket except it is slightly longer.
10) Reattach the top of the hub to the upper control arm
11) Repeat this process on the other side.
12) Tighten all bolts to manufacturer’s torque specifications. Install the wheels, torque wheel lug nuts to
manufacturer’s specifications, lower and remove jack. Check for clearance problems or misalignment.
13) Re-torque lug nuts after the first ride.
High Lifter Logo Plate
1. On the back of the ATV there are two bolts located on either side of the differential.
2. Remove the two nuts.
3. Place the logo plate over the two bolts and then secure it with the stock nuts there were removed
earlier.
