Rear lift – High Lifter Lift Kit for Polaris Sportsman - Signature Series User Manual
Page 7
7
Rear Lift
1) Place jack under ATV at the rear of the bottom skid plate and lift until the weight is off the
suspension. Be careful to secure the ATV properly so as not to fall off the jack.
2) Remove the rear wheels and disconnect the lower portion of the shock from the control arm.
3) Disconnect the top bolt from the rear hub assembly.
4) There are 4 different rear lift brackets. There are two for the left side and two for the right side. Each
one is different.
5) Locate the brackets for the side you are starting with first. Now connect them to the ATV rear lower
control arm.

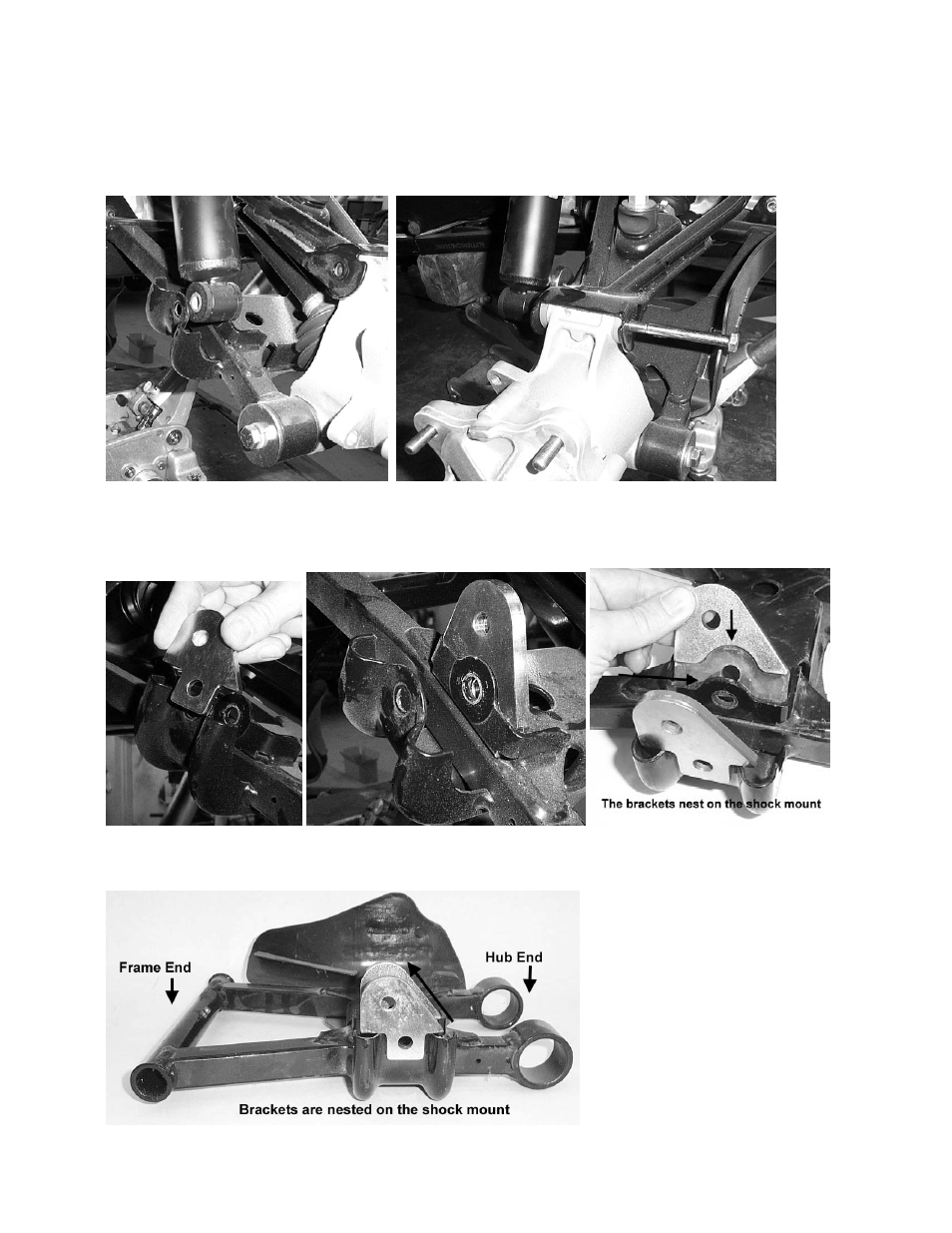

6) The brackets must be installed according to the photo. The brackets are designed to nest onto the
shock mount with the angle pointing “Up Hill”
