High Lifter Max Clearance Lower Arched Radius Bars for Arctic Cat 1000 Wildcat User Manual
Page 6

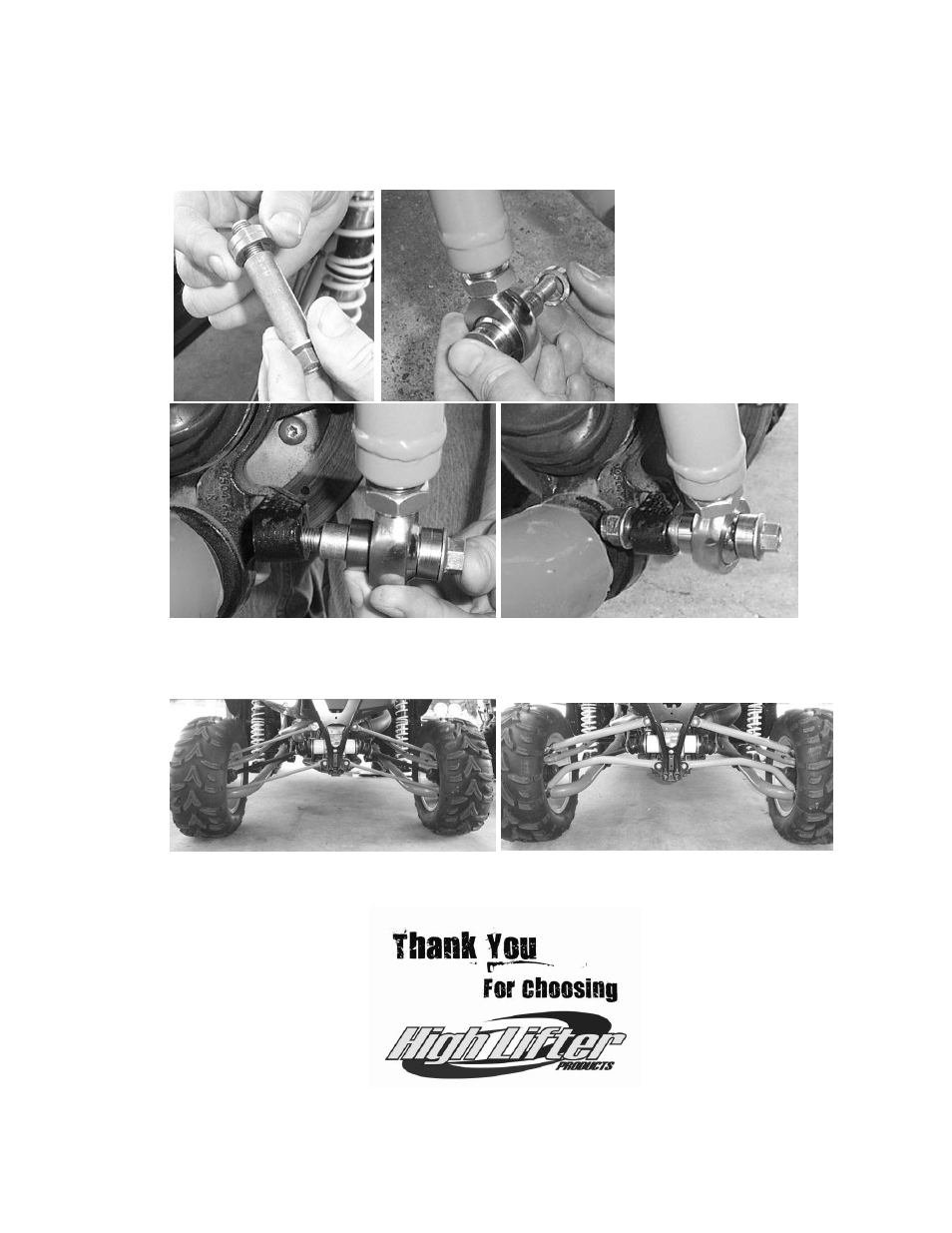

10. Connect the new Heim Joint and Spacers to the knuckle assembly using the stock bolt/
hardware. Place the spacer on the stock bolt, then the heim joint, and then the other
spacer, and connect it to the knuckle assembly. Torque nuts to factory specifications.
11. Once you have connected the new radius rods on both sides, place the wheels back on
the UTV if you removed them, torque all lugs to factory specifications, and lower the
jack.
BEFORE
AFTER
