High Lifter Max Clearance Lower Arched Radius Bars for Arctic Cat 1000 Wildcat User Manual

Page 5

Text mode
Original mode

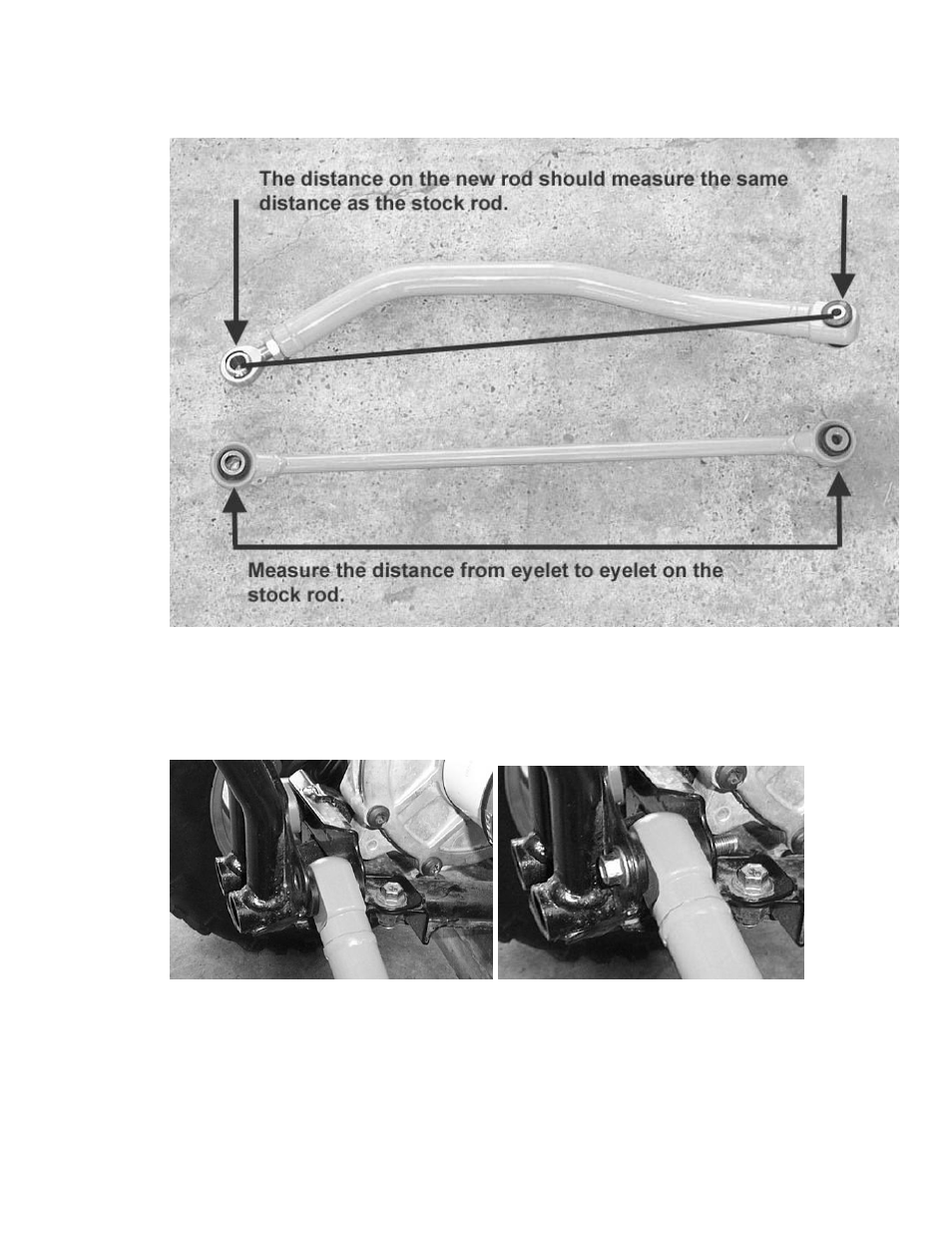

8. Set the distance on the new rod by adjusting the heim joint and jam nut.

9. Once you have set the distance on the new rod attach it to the UTV. Attach the ends of

the radius bars to the frame using stock hardware. Torque nuts to factory
specifications.
