High lifter name plate installation – High Lifter Lift Kit for Polaris Mid-Size RANGER - Signature Series User Manual
Page 8
8

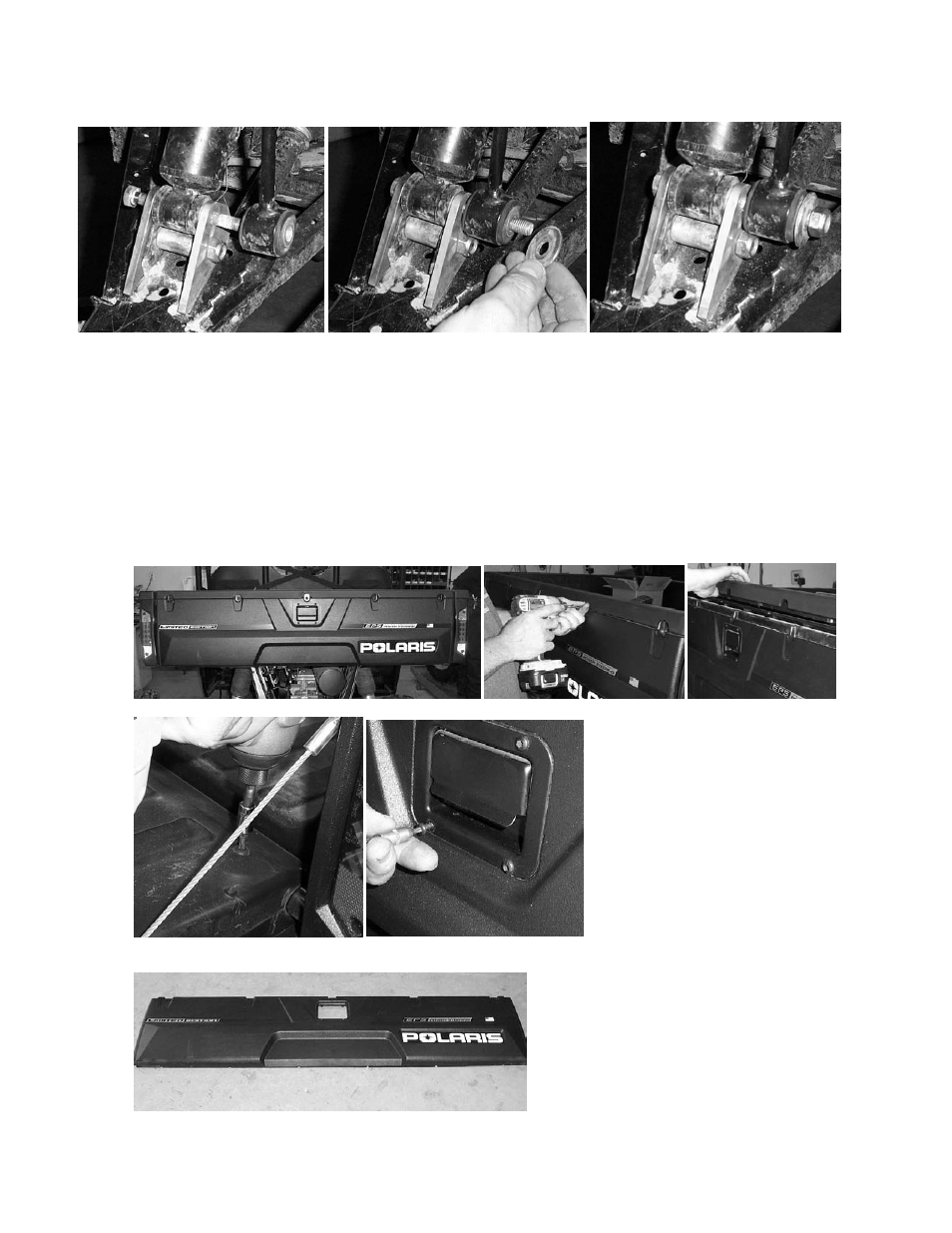

6) Attaching the sway bar bracket. Secure everything with the 10mm lock nut.
7) Repeat steps for opposite side.
8) Torque all lugs to factory specifications and lower ATV.
High Lifter Name Plate Installation
1. You will need to disassemble the tail gate. Remove the top rail and latch. Remove the screws that are on the side of
the tail gate that is to the inside of the bed.
2. Disassemble the tail gate and take the cover and place it on a flat surface.
