Rear Lift Installation

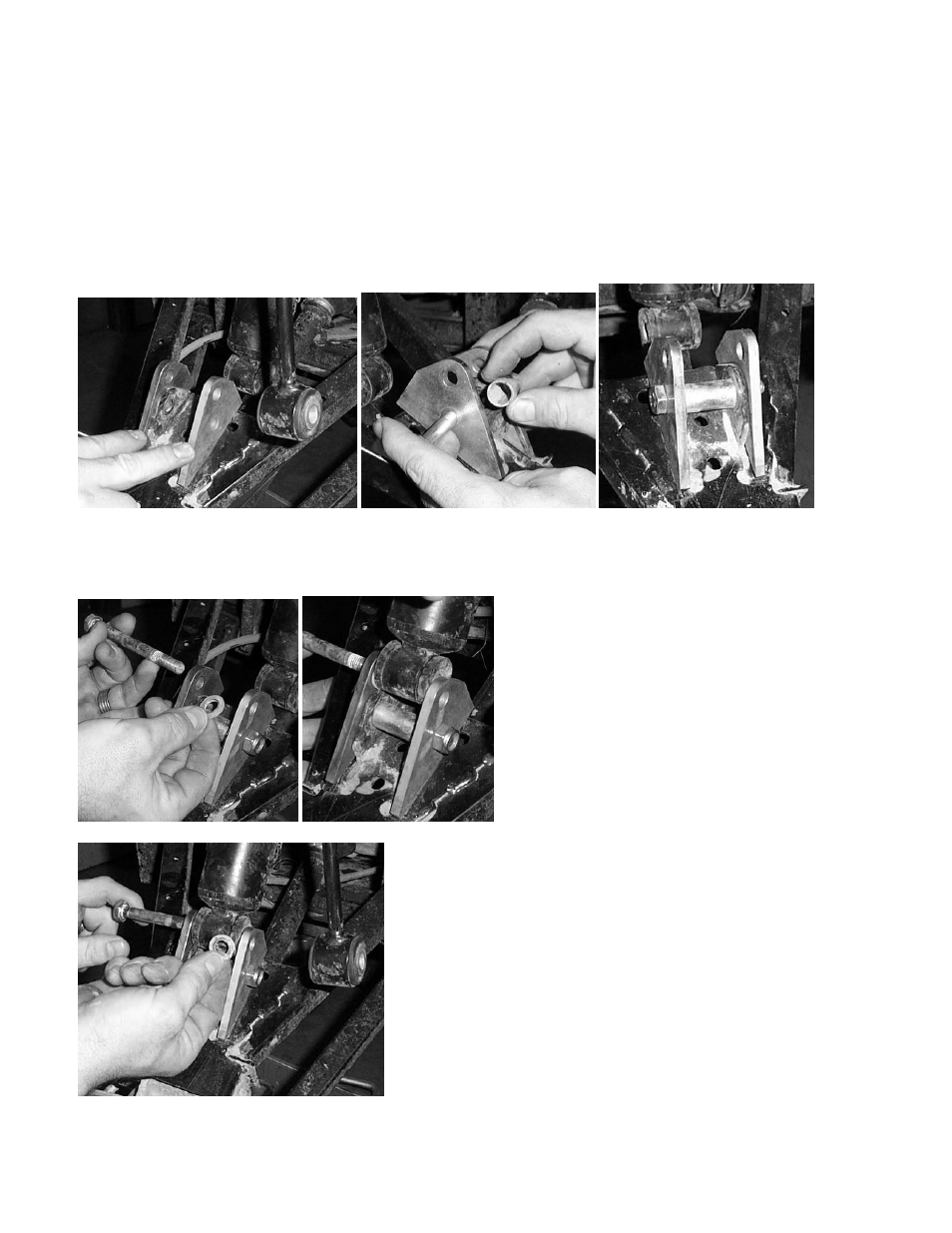

1) Place ATV transmission in park. Place jack under center of ATV rear end and lift until rear wheels
clear the ground. Be careful to support ATV properly so that it is securely supported so that A-arms
and shocks can droop to full extension.
2) Remove rear wheels.
3) Disconnect the sway bar arm and the bottom of the rear shocks.
4) Place the flat rear lift brackets (One Left & One Right) on either side of the lower shock mount and
insert the spacer between the shock mount tabs. Secure the brackets and spacer using the 10 x 70mm
bolt and 10mm lock nut.
5) Next, insert the bottom of the shock into the top of the brackets. Place one 10mm flat washers on
either side of the shock. (Between the shock eyelet and bracket). Use a 10 x 115mm bolt to secure the
brackets, 10mm washers, and shock. Attach the sway bar bracket to the outside of the lift bracket.
