Xedio Suite Version 3.1 – User’s Manual - Xedio Browse
EVS Broadcast Equipment – January 2011
Issue 3.1.B
9

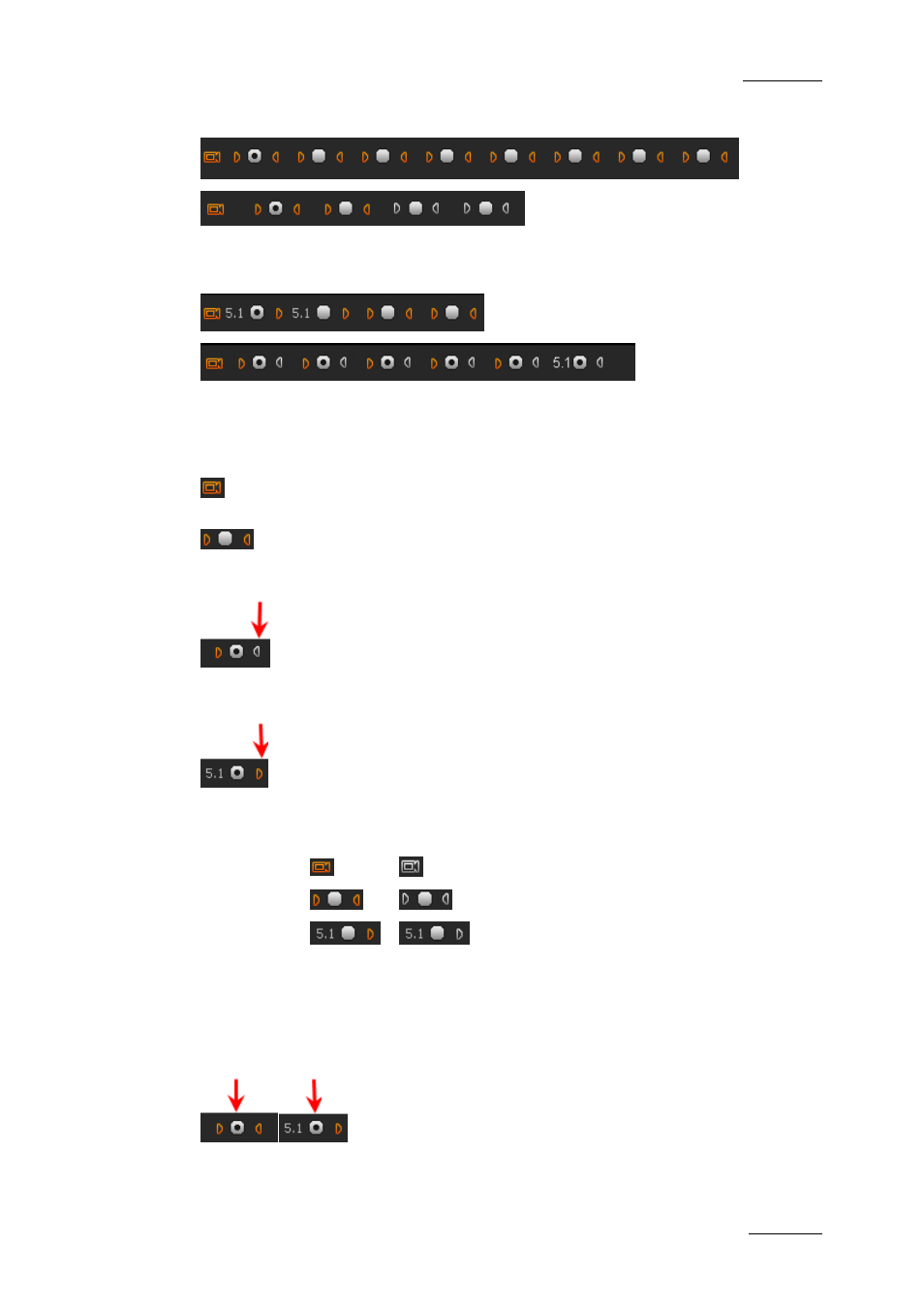

In stereo mode, up to 8 tracks appear as follows:
(8 stereo)
(4 stereo)
In 5.1 and stereo mode, up to 16 channels can be shown as follows:
(two 5.1 tracks and two stereo tracks)
(one 5.1 track and six
stereo tracks)
V
IDEO AND
A
UDIO
S
ELECTION
Clicking on the Video button will remove the video from the Player window.
The displayed button will turn to white.
Clicking on the left or right triangle of an audio stereo track will disable
respectively the left or right channel of the corresponding audio track. The
displayed button will turn to white.
A 5.1 audio track is disabled by clicking the loudspeaker button on the right of the
radio button
The table summarizes how the icons look like depending on the selection:
Enabled Disabled
Video
Audio
A
UDIO
M
ONITORING
S
ELECTION
The radio buttons between each pair of stereo audio channel buttons or next to a
5.1 audio channel button allow the selection of one audio track for monitoring:
