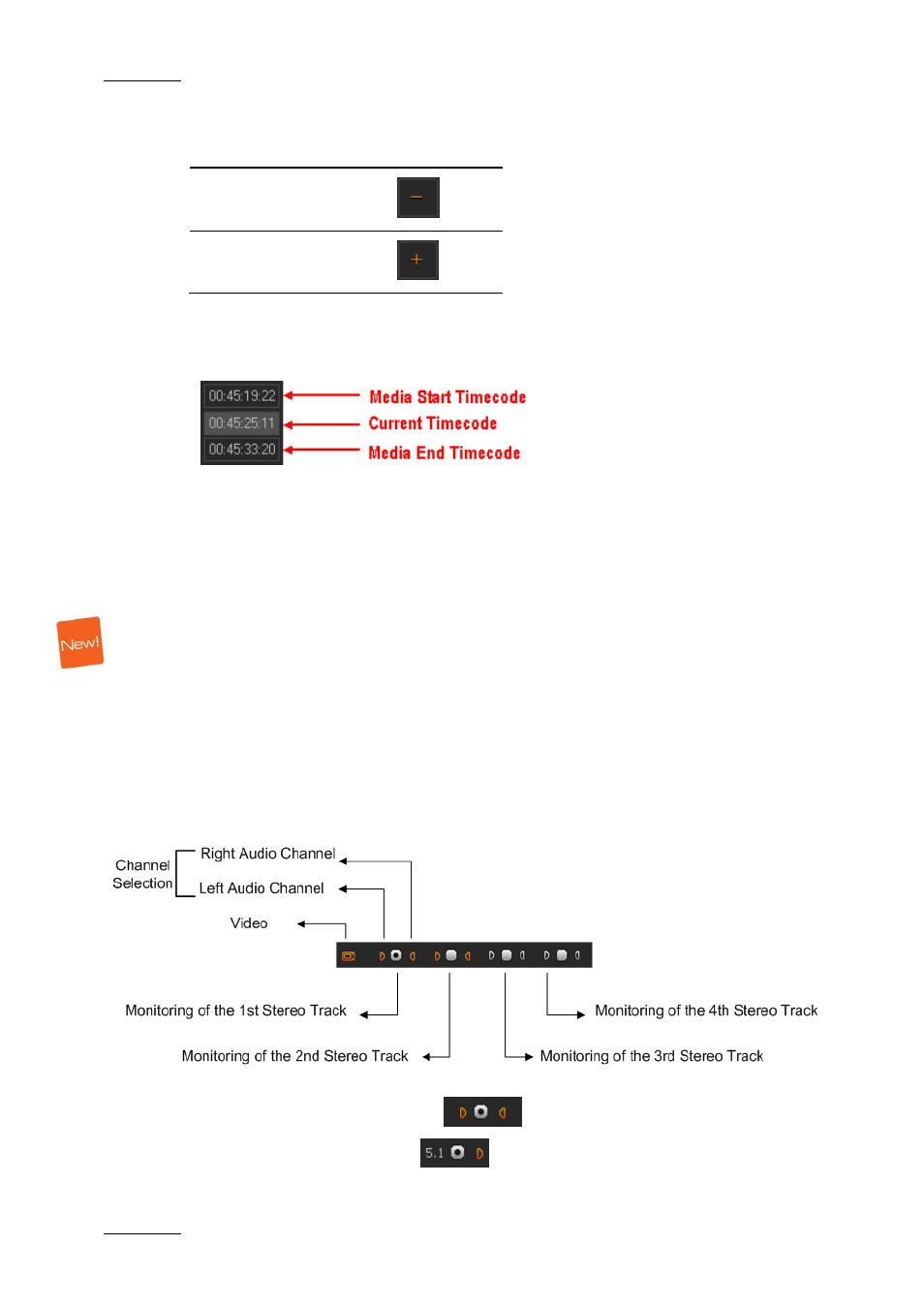

background image

Issue 3.1.B

Xedio Suite Version 3.1 – User’s Manual - Xedio Browse

EVS Broadcast Equipment – January 2011

8

Operation User

Interface

Button

Remove 1 frame from
Mark OUT point

(red)

Add 1 frame to Mark
OUT point

(red)

2.3.2 T

IMECODE

V

ALUE

F

IELDS

The top box displays the media start timecode (first

recorded frame), even if a

virtual media is loaded.

The second box displays the current position (nowline).

The bottom box displays the media end timecode (last recorded frame), even if a

virtual media is loaded.

2.3.3 V

IDEO AND

A

UDIO

M

ONITORING

T

OOLS

When a media is loaded on the Player pane, the video and audio tracks to monitor
can be selected using the buttons underneath the Video Display.

O

VERVIEW

All the available audio sources from a media are displayed below the Player.

The video and audio track buttons are represented as follows:

A stereo track is represented by

.

A 5.1 track is represented by
