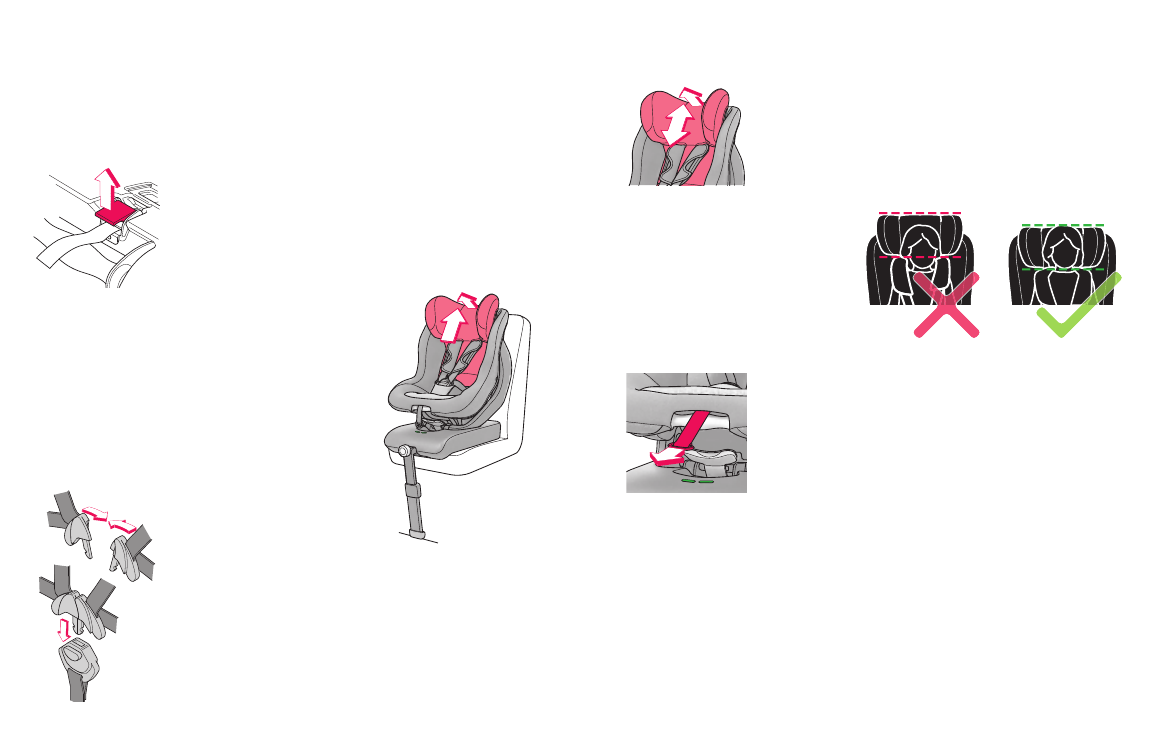

Hold the head support ( 01 ) by the upper edge and pull it
forward. Move the head support ( 01 ) into the position which
suits your child.
The shoulder harness guide
should be situated slightly above
the child‘s shoulder. The shoulder
harnesses should lie in the middle
between the child‘s neck and the
outer edge of the shoulder.
Tighten the harness by pulling the central harness ( 04 ) until it
lies snug against the child‘s body.
CAUTION!
• The harnesses must not be twisted.
• The harness lock ( 02 ) must be closed properly and the harnesses must lie snug
against the child‘s body.
• The headrest/harness guide must be adjusted to the size of the child and latched
securely in place.
CAUTION
Check that the CONCORD ULTIMAX is mounted properly and that all belts have proper
tension, and also that all locking mechanisms are secure before each use.
At the front of the seat under the cover there is the central
adjusting device ( 03 ), which clamps the central harness ( 04 )
tight. Loosen the central adjusting device ( 03 ) by pushing the
cap of the central adjusting device up and pull the harness
forward (do not pull on the harness cushioning!).
Hold the head support ( 01 ) by the upper edge and pull
it forward. Now move the head support ( 01 ) to the top
position.
Open the harness lock ( 02 ) and move the harnesses
to the sides and forward.
Place your child as far back into the seat as possible.
Bring the shoulder/lap harnesses and the central harness
together in front of the child and close the harness lock.
Check that the harness lock ( 02 ) has latched shut
correctly. Ensure that none of the harness straps are
twisted.
_ SECURing yOUR CHiLD in THE COnCORD ULTimAX The CONCORD ULTIMAX must be adjusted to the size of the child.
