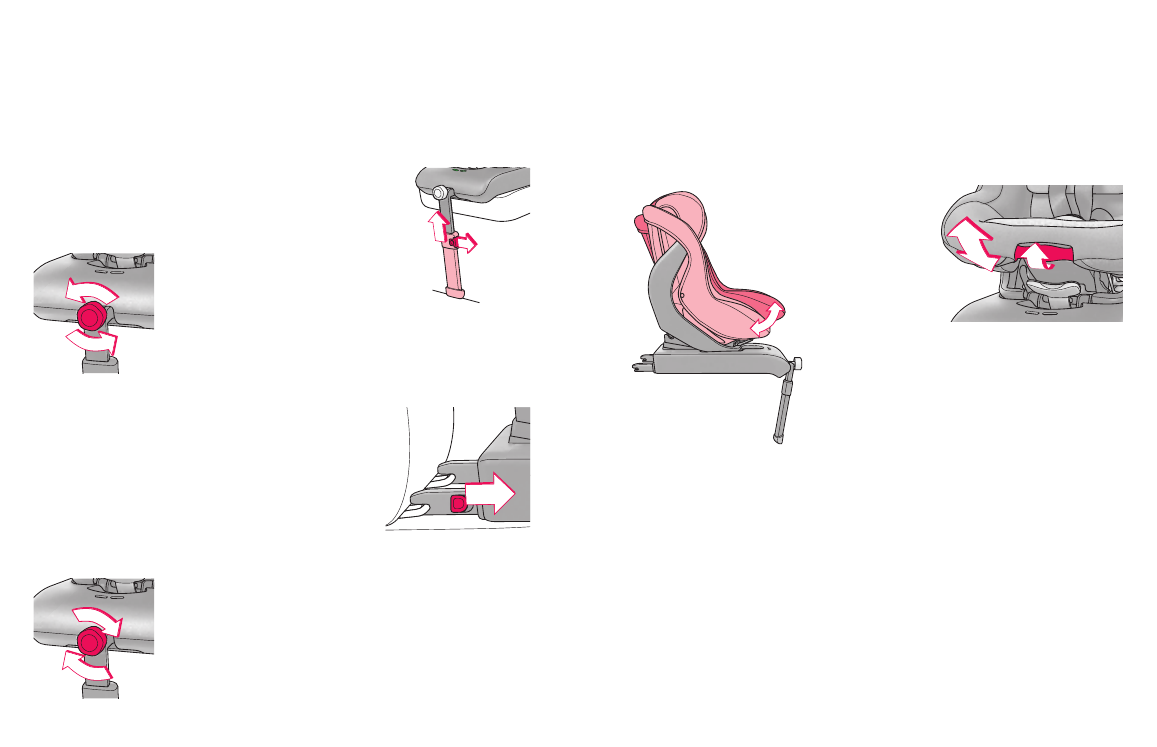

_ USing THE TiLT ADJUSTmEnT
CAUTION!
• The tilt adjustment is only allowed to be used if the seat is installed in
the driving direction (from 9 - 18 kg).
• The seat is only allowed to be used in a backwards position if it is upright!
Move the tilt adjustment operating lever (
05
) at
the front of the seat upwards and bring the seat
into the desired position.
By releasing the lever (
05
) the seat is locked.
_ REmOVing THE COnCORD ULTimAX
To make the removal of the CONCORD ULTIMAX easier we recommend you first remove
the seat (
a
) (see „REMOVING THE SEAT“).
Always mount and remove the COnCORD ULTimAX without a child in it!
Push the release button (
09
) outward and move the support
leg (
10
) into its top-most position.
Turn the ISOFIX SYSTEM (
08
) control
dial on the front of the CONCORD
ULTIMAX ISOFIX base to the left and
move the base forward.
Pull the ISOFIX SYSTEM unlocking buttons (
13
) on the left
and right of the base forward, so that the ISOFIX adapters
(
15
) are loosened from the receptacles and the base
springs forward.
Lift the CONCORD ULTIMAX out of the car seat.
Turn the ISOFIX SYSTEM (
08
) control dial to the right until the
ISOFIX adapter (
15
) is fully extended.
