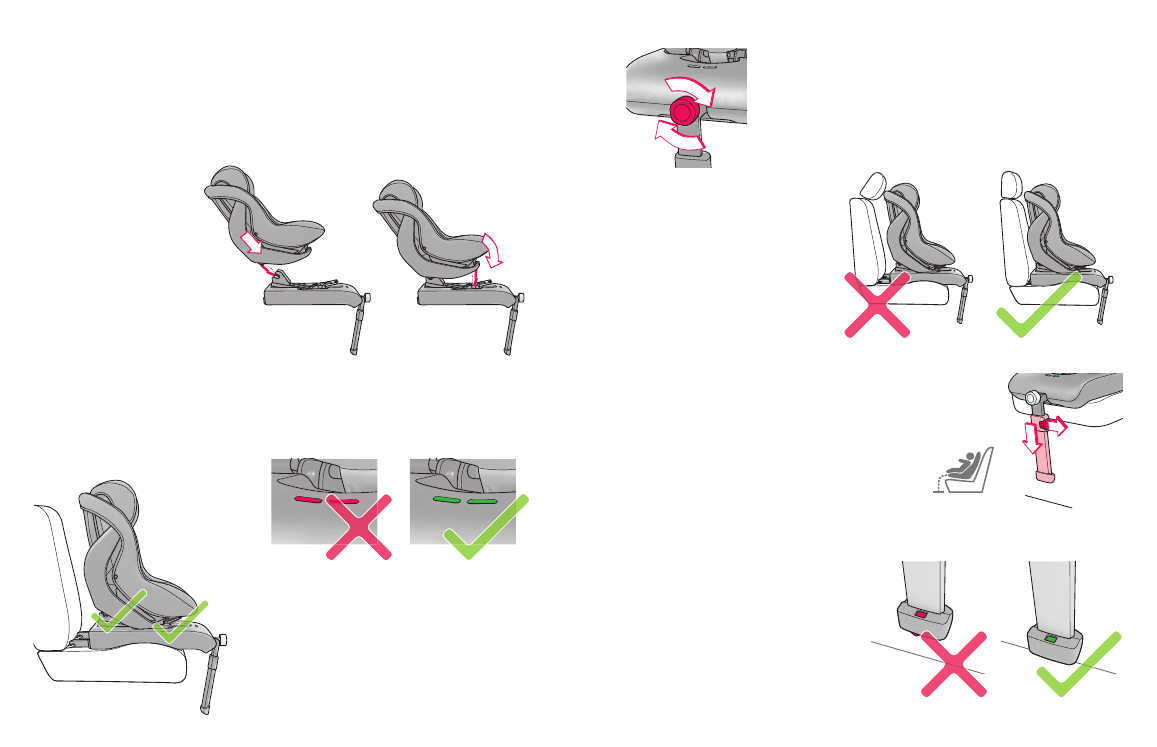

CAUTION!
• Make sure that the seat is correctly
anchored to both anchoring points and
the safety display (
07
) is green!
Always mount the seat
without a child in it!
Guide the seat (
a
) as show,
in the driving direction over
the base (
B
).
First mount the frame of the
seat into the rear seat lock
(
12
) of the ISOFIX base.
Then fold the seat forward until the front seat lock (
11
) audibly locks into
the ISOFIX base and the safety display (
07
) on the top is green.
_ mOUnTing THE SEAT in THE DRiVing DiRECTiOn (FROm 9 - 18 Kg)
CAUTION!
mounting in the driving direction is only permitted for babies which weigh more
that 9 kg and without the pelvic insert (see „REmOVing THE PELViC inSERT“).
Push the release button (
09
) outward and position
the support leg (
10
) so that it rests securely on the
floor and the safety display shows GREEN.
Release the control button (
09
) to lock the support
leg in place.
CAUTION!
• The seat must be secured with the
ISOFIX SYSTEM even if no child is
travelling!
• Both ISOFIX adapters (
15
) must be
locked securely in place and the safety
displays (
14
) on both adapters must
show green.
• The support leg (
10
) must rest securely
on the floor and be locked into place.
In vehicles with series-standard
headrests, a readjustment of the
headrest or its removal will allow
a better mounting position of the
car seat.
Please remember to readjust or
replace the headrest in the
correct position if an adult is to
sit in that place instead.
Turn the ISOFIX SYSTEM (
08
) control dial to the right until the
CONCORD ULTIMAX lies as close/flush as possible to the back
rest of the car seat.
