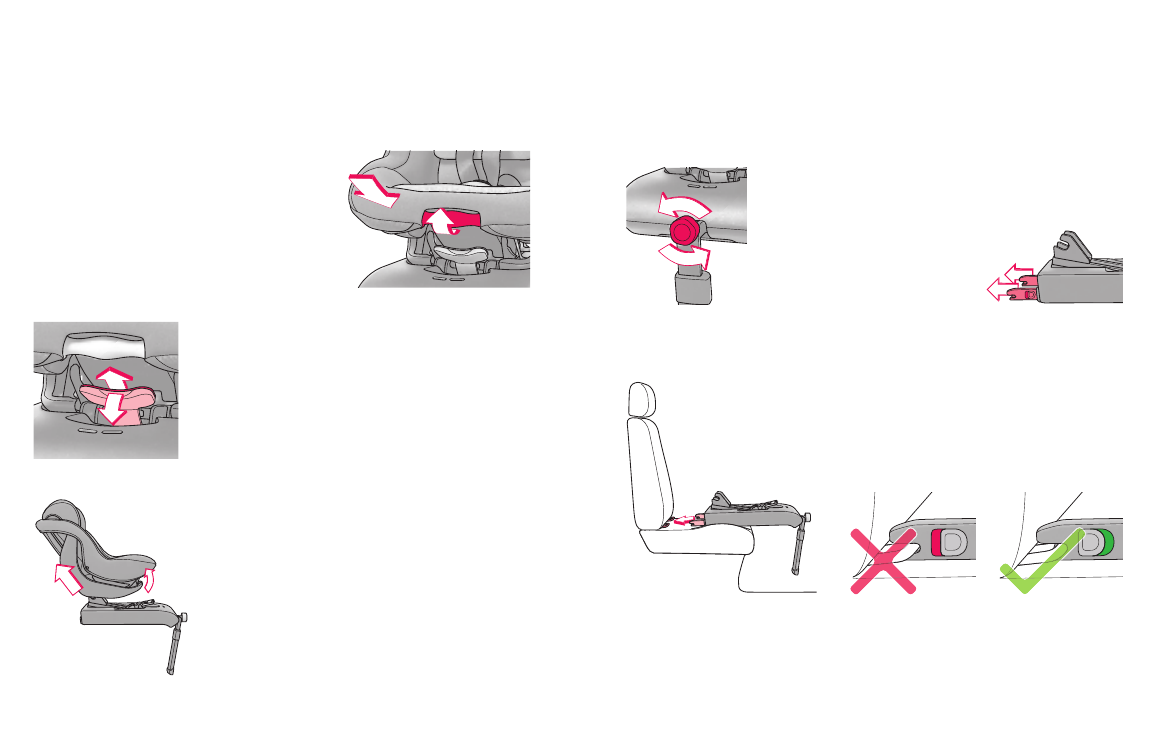

_ mOUnTing THE COnCORD ULTimAX
Turn the ISOFIX SYSTEM (
08
) control dial on the front of
the CONCORD ULTIMAX ISOFIX base to the left until the
To make mounting easier, we recommend removing the seat (
a
) of the
CONCORD ULTIMAX from the base (
B
) (see „REMOVING THE SEAT“).
Always mount and remove the COnCORD ULTimAX without a child in it!
ISOFIX adapter (
15
) on the reverse
is fully extended.
Place the base in the direction of driving on a vehicle seat
equipped with ISOFIX receptacles.
Push the child seat backwards onto the ISOFIX receptacles
until the locking mechanisms of both ISOFIX adapters (
15
)
audibly lock into place and the safety displays (
14
) on both
adapters are green!
Now reinsert the seat, depending on the age of the child either in the driving direction
or opposite to it (see „MOUNTING THE SEAT OPPOSITE TO THE DRIVING DIRECTION
(FROM BIRTH TO 13 KG)“ or „MOUNTING THE SEAT IN THE DRIVING DIRECTION
(FROM 9 - 18 KG)“).
_ REmOVing THE SEAT
The seat (
a
) of the CONCORD ULTIMAX can be removed from the ISOFIX-Basis (
B
).
Always remove the child first before removing the seat!
Move the tilt adjustment operating lever (
05
) at the
front of the seat upwards and bring the seat into an
upright position.
The unlocking mechanism of the seat lock (
06
) is at the
front underneath the seat on the top of the ISOFIX base.
Pull the upper part of the lock (
06
) forwards and push the
lock down.
Lift the seat up off the base.
