AASTRA MX-ONE_A700_MS Lync 2010 Quick Setup Guide - Manual (Page 8)

8 (19)
1) MX-ONE Direct SIP setup

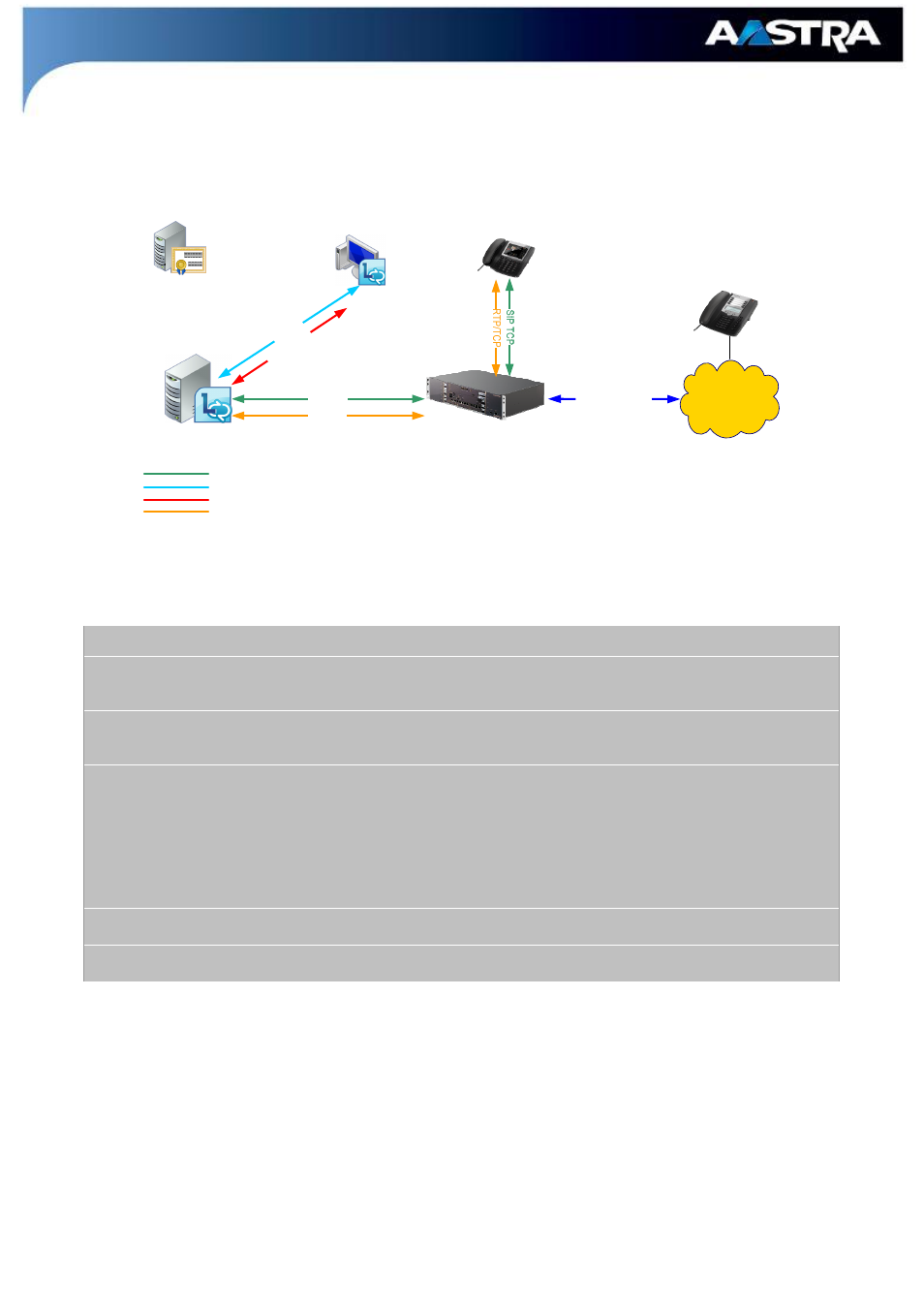

The figure below shows the Direct SIP configuration used in this guide:
MX-ONE or A700 V.4.1 SP3
IP= 192.168.222.84
FQDN= mxone-lync.as.zr.zeruela.lab.se
PSTN / PLMN
or SIP operator
ISDN or SIP Route
SIP Trunk
TCP
Lync Server and Mediation Server
IP= 192.168.222.90
FQDN= lync-stand.as.zr.zeruela.lab.se
SIP
TL
S
Lync
Client
Microsoft® DC,AD, CA and DNS Server
IP= 192.168.222.45
FQDN= lync-infra.as.zr.zeruela.lab.se
RTP/TCP
SR
TP
/RT
CP
SIP Traffic: TCP or TLS
SIP Traffic: TLS
SRTP/RTCP Traffic
RTP/TCP or SRTP/RTCP Traffic
Figure 4 – Direct SIP detailed signaling
The following setup needs to be done in MX-ONE in order to configure Direct SIP, please note that
only SIP Route definitions are showed.
SIP Route definition
Define SIP route category:
ROCAI:ROU=99,SEL=7110000000000010,SIG=0111110000A0,TRAF=03151515,TRM=4,SERV=3100000
001,BCAP=001100;
Define SIP route data
#VARC d5=1 forced gateway
RODAI:ROU=99,TYPE=TL66,VARC=00001000,VARI=00000000,VARO=00000950;
Define SIP trunk data specific:
Outgoing traffic:
sip_route -set -route 99 -remoteport 5068 -protocol tcp -uristring sip:[email protected] (or
192.168.222.90)
Incoming traffic:
sip_route -set -route 99 -accept REMOTE_IP -match 192.168.222.90
Codec Filtering:
sip_route -set -route 99 -codecs PCMA,PCMU
Define the SIP Route equipment initiate
ROEQI:ROU=99,TRU=1-1;
Define external destination SIP route data
RODDI:ROU=99,DEST=99,ADC=0005000000000250000001010000,SRT=3;
