15 (19)
SIP Route definition
Define SIP route category:
ROCAI:ROU=98,SEL=7110000000000010,SIG=0111110000A0,TRAF=03151515,TRM=4,SERV=310000000
1,BCAP=001100;
Define SIP route data
#VARC d5=1 forced gateway
RODAI:ROU=98,TYPE=TL66,VARC=00001000,VARI=00000000, VARO=00000950;
Define SIP trunk data specific:
Outgoing traffic:
sip_route -set -route 98 -remoteport 5067 -protocol tls -uristring sip:[email protected]
-fromuri sip:[email protected]
Incoming traffic:
sip_route -set -route 98 -accept REMOTE_IP -match 192.168.222.90
Codec Filtering:
sip_route -set -route 98 -codecs PCMA,PCMU
Define the SIP Route equipment initiate
ROEQI:ROU=98,TRU=1-1;
Define external destination SIP route data
RODDI:ROU=98,DEST=98,ADC=0005000000000250000001010000,SRT=3;
Import the certificate to MX-ONE Telephony Server
Import the server certificate mx-one-certificate.pfx to MX-ONE Telephony Server. On the access
Server, for example, Telephony Server 1 runs the following command:
Certificate installation
Install the certificate in the Telephony Server 1:
cert_install_local mx-one-certificate.pfx
2) Lync configuration
In order to finalize the configuration between Aastra MX-ONE and Microsoft Lync Server 2010 the
following needs to be done:
Define PSTN Gateway in the Lync Server 2010 Topology Builder
Open Lync Server 2010, Topology Builder and define a PSTN gateway in the Mediation Server to be
used between Lync and MX-ONE.
• To define the PSTN gateway, expand Mediation pools, right click in the Mediation Server
to be used, choose Edit Properties

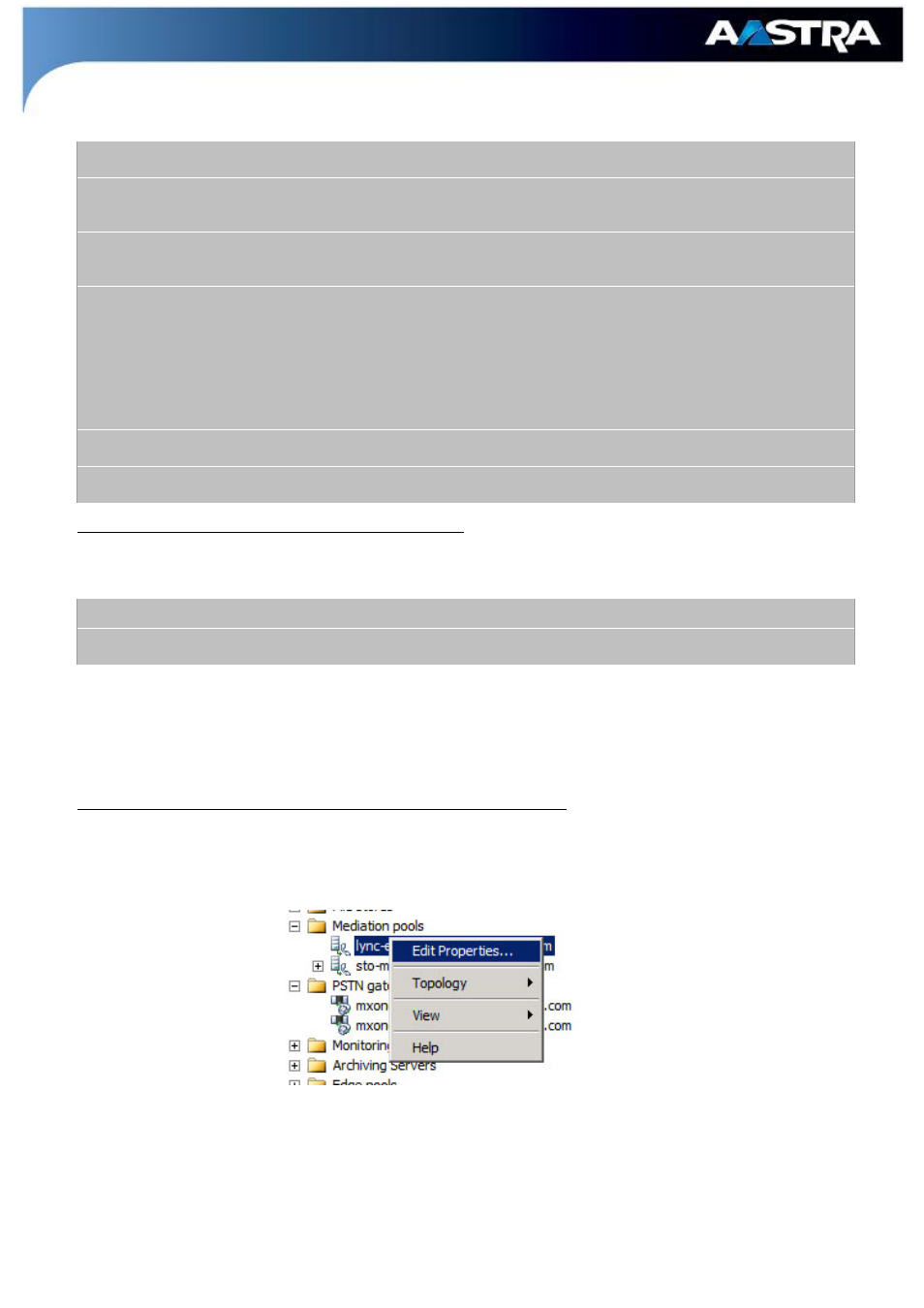

Figure 14 - Mediation pools
