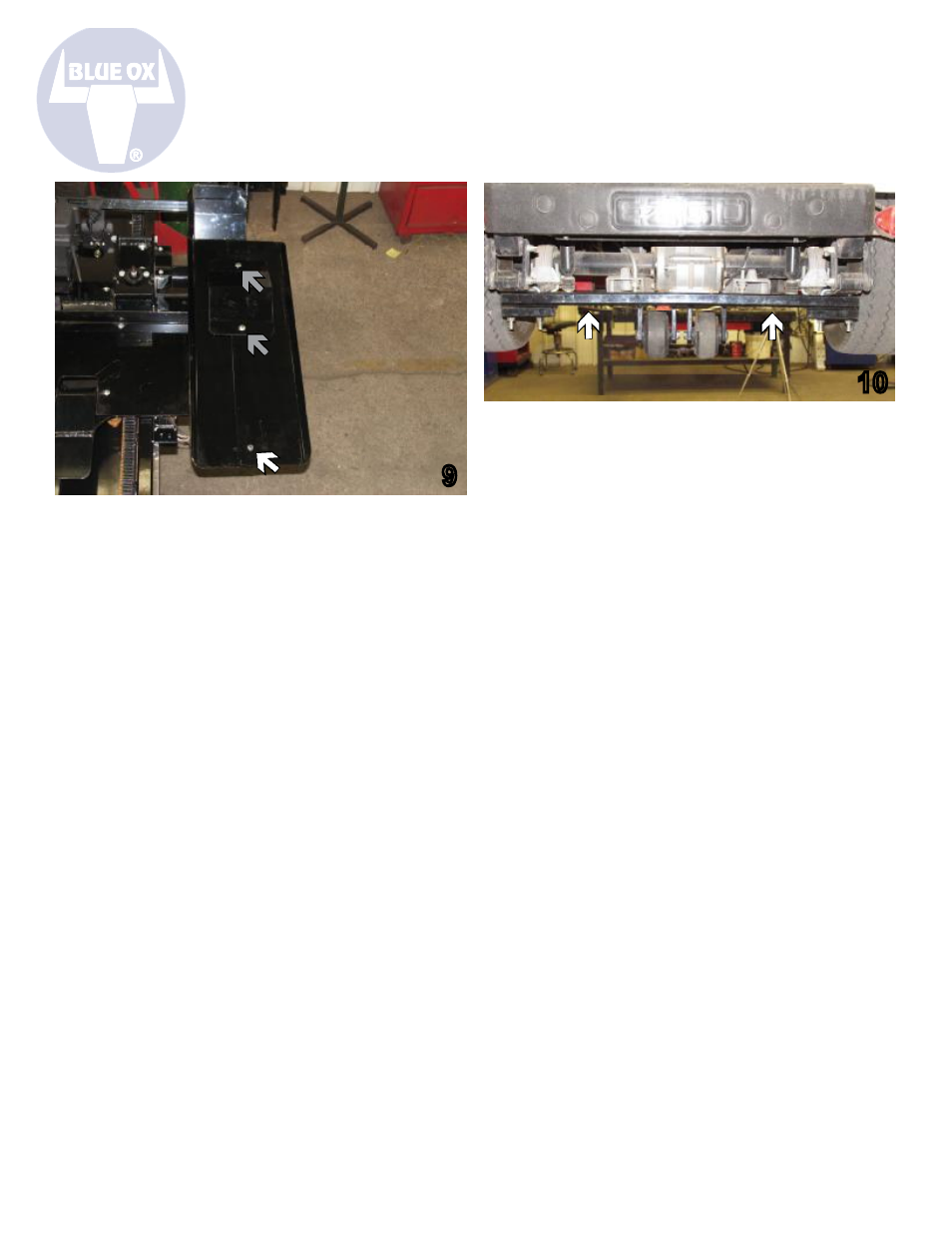

9. After ramp is in place, position tire support
(101-6936) on ramp, so holes line up. Insert a
3/8-16x1” carriage bolt into the top two holes (see
grey arrows) and a 3/8-16x1” hex bolt into the
bottom hole (see white arrow), then tighten down
with a 3/8-16 hex nylon lock nut, using a 9/16”
wrench. Do this to both sides of the golf cart
loader weldment.
10. Before the golf cart can be loaded into
the pickup, you must attach a golf cart dolly to
the back. It is the customers responsibility to
specify which golf cart dolly they need (SC9029
& SC9030), when purchasing the golf cart
loader. Using a 9/16” deep socket, secure the
dolly cross member assembly to the leaf spring
with two 3/8-16x3 1/2”x2” u-bolts (201-0697) and
four 3/8-16 hex nylon lock nuts (202-0090). You
will then need to adjust the dolly cross member
so it’s straight. The golf cart is then ready to
be winched up into the back of the pickup. It is
then the responsibility of the customer to use
additional tie downs where needed.
