INSTALLATION OF THE
RECREATIONAL VEHICLE LOADER

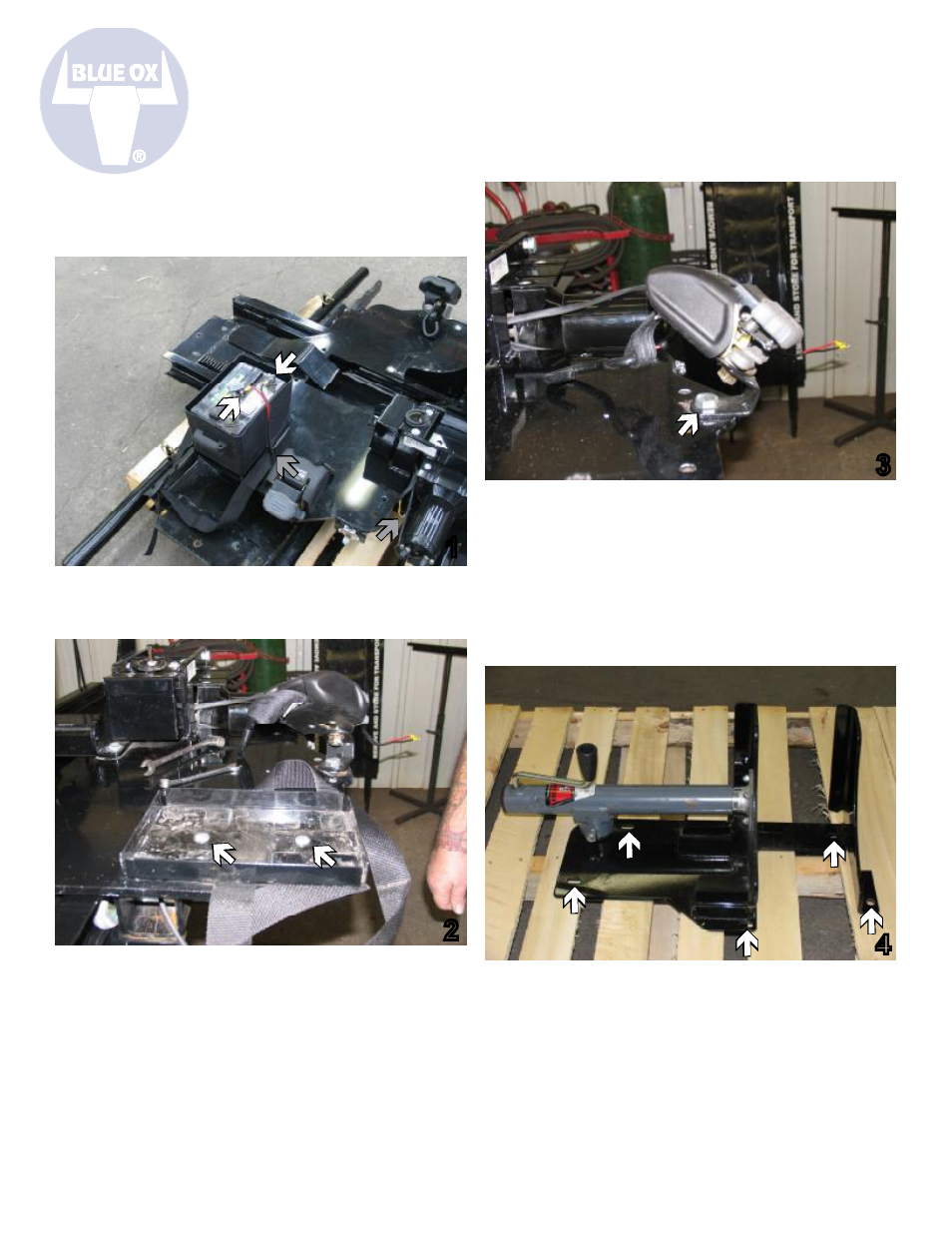

1
1. Unhook red and black wiring from battery (see
white arrows). Pull both wires back through holes
and to the winch (see grey arrows).
2. Remove battery box from tray and then using
a 7/16” wrench, remove two bolts from the battery
tray. Set battery box, tray and bolts aside to be
reinstalled in a different location.
3. Using two 3/4” wrenches, remove the bolt
from the cargo buckle bracket attached to the
cycle slide head assembly. Using a 3/4” and
5/8” wrench, remove one cargo buckle from the
bracket and set the cargo buckle aside to be
reinstalled in a different location. The second
cargo buckle and both brackets are not used with
the SC9028 and can be stored away.
4. Using a 9/16” wrench, remove
 ve 3/8”
carriage bolts from the bull dog jack assembly.
The jack assembly and bolts are not used with
the SC9028 and can be stored away.
3
4
2
