GPSMAP 620 and GPSMAP 640 Owner’s Manual 

31

Marine Mode: Managing Information From Other Vessels

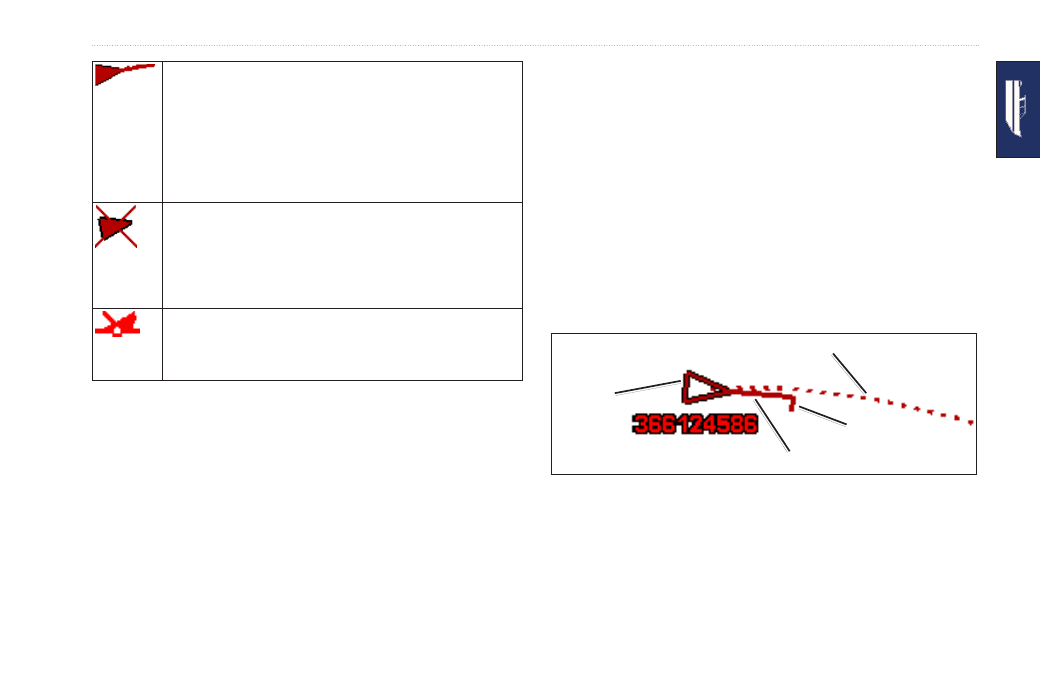

Dangerous target in range. The target flashes while an alarm

sounds and a message banner appears. After the alarm is

acknowledged, a solid red triangle with a red line attached

to it indicates the location and the heading of the target. If

the AIS alarm is set to Off, the target flashes, but the audible

alarm does not sound and the alarm banner does not appear.

If the AIS transmission from the vessel is lost, a message

banner appears.
Dangerous target is lost. A red

X indicates that the AIS

transmission from the vessel is lost, and the chartplotter

displays a message banner asking whether the vessel should

continue to be tracked. If you discontinue vessel tracking, the

lost dangerous target symbol disappears from the chart or

the 3D chart view.
The location of this symbol indicates the closest point of

approach to a dangerous target, and the numbers near the

symbol indicate the time to the closest point of approach to

that target.

Heading and Projected Course of Activated AIS Targets

When heading and course-over-ground information are provided by

an activated AIS target, the heading of the target appears on a chart

as a solid line attached to the AIS target symbol. A heading line

does not appear on a 3D chart view.
The projected course of an activated AIS target appears as a dashed

line on a chart or a 3D chart view. The length of the projected

course line is based on the value of the projected heading setting

(

page 33

). If an activated AIS target is not transmitting speed

information, or if the vessel is not moving, a projected course line

does not appear. Changes in the speed, the course over ground, or

the rate-of-turn information transmitted by the vessel can impact

the calculation of the projected course line.
When course-over-ground, heading, and rate-of-turn information

are provided by an activated AIS target, the projected course of the

target is calculated based on the course-over-ground and the rate-

of-turn information. The direction in which the target is turning,

which is also based on the rate-of-turn information, is indicated by

the direction of the barb at the end of the heading line. The length

of the barb does not change.

Target with Projected Course, Heading

and Direction of Turn

Activated 

AIS target

Projected course

Heading line

Barb
