GPSMAP 400/500 Series Owner’s Manual
43
Viewing Information

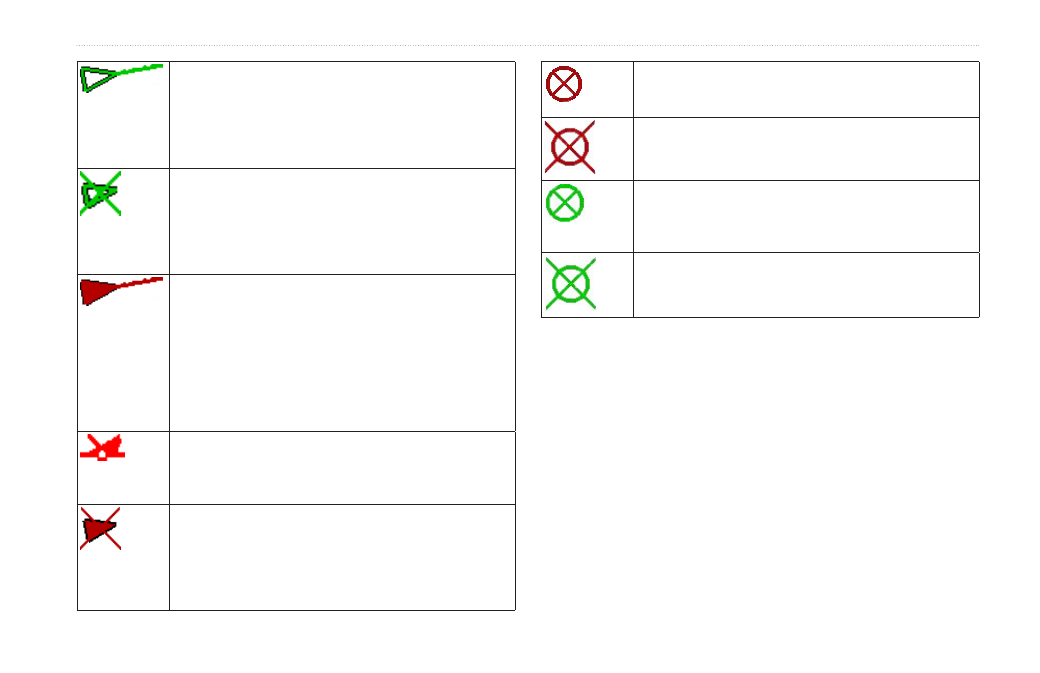

Target is activated� The target appears larger on the chart�
A green line attached to the target indicates the heading of
the target� The MMSI, speed, and direction of the vessel
appear beneath the target, if the details setting is set to
Show (
)� If the AIS transmission from the vessel is
lost, a message banner appears�
Target is lost� A green
X indicates that the AIS transmission
from the vessel is lost, and the chartplotter displays
a message banner asking whether the vessel should
continue to be tracked� If you discontinue vessel tracking,
the lost target symbol disappears from the chart or the 3D
chart view�
Dangerous target in range� The target flashes while an
alarm sounds and a message banner appears� After the
alarm is acknowledged, a solid red triangle with a red line
attached to it indicates the location and the heading of the
target� If the safe-zone collision alarm is set to
Off, the
target flashes, but the audible alarm does not sound and
the alarm banner does not appear (
)� If the AIS
transmission from the vessel is lost, a message banner
appears�
The location of this symbol indicates the closest point of
approach to a dangerous target, and the numbers near the
symbol indicate the time to the closest point of approach
to that target�
Dangerous target is lost� A red
X indicates that the AIS
transmission from the vessel is lost, and the chartplotter
displays a message banner asking whether the vessel
should continue to be tracked� If you discontinue vessel
tracking, the lost dangerous target symbol disappears from
the chart or the 3D chart view�
AIS-SART transmission� You can select this symbol to see
more information about the SART transmission and begin
navigation�
AIS-SART transmission lost�
AIS-SART transmission test� This symbol appears when a
vessel initiates a test of their SART device, and does not
represent a true emergency� You can disable these test
symbols and alerts (
AIS-SART transmission test lost�
Heading and Projected Course of Activated AIS Targets
When course over ground and heading information are provided by
an activated AIS target, the heading of the target appears on a chart
as a solid line attached to the AIS target symbol. A heading line does
not appear on a 3D chart view.
The projected course of an activated AIS target appears as a dashed
line on a chart or a 3D chart view. The length of the projected course
line is based on the value of the projected heading setting (
).
If an activated AIS target is not transmitting speed information, or
if the vessel is not moving, a projected course line does not appear.
Changes in the speed, the course over ground, or the rate-of-turn
information transmitted by the vessel can impact the calculation of
