ASRock FM2A85X-ITX Motherboard
English

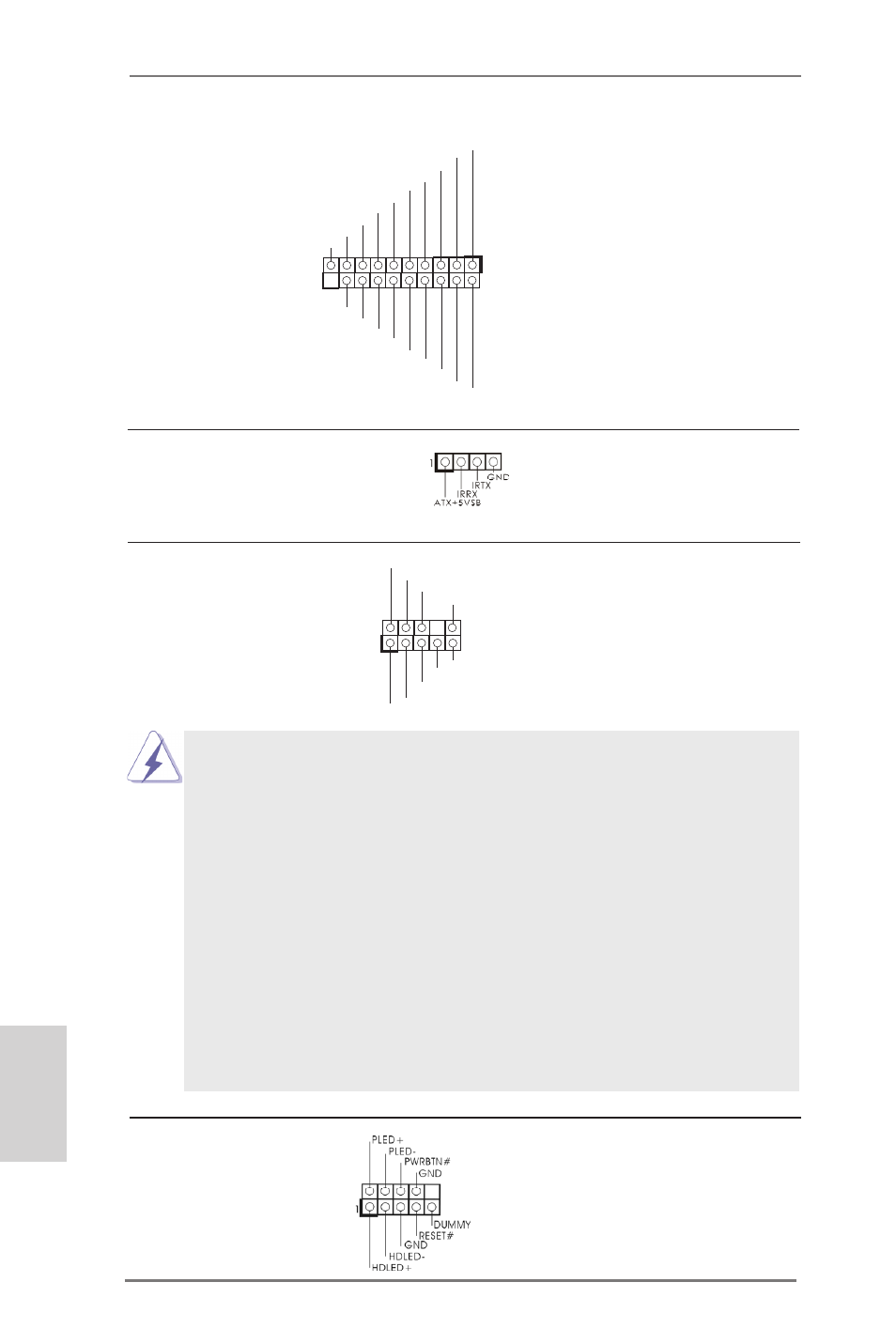

Front Panel Audio Header This is an interface for the front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.2 No. 22) convenient connection and
control of audio devices.
Consumer Infrared Module Header This header can be used to
(4-pin CIR1) connect the remote
(see p.2 No. 15) controller receiver.
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1. High Definition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
For Windows ® 8 / 8 64-bit / 7 / 7 64-bit / Vista TM / Vista TM 64-bit OS:
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.2 No. 6) functions.
USB 3.0 Header Besides two default USB 3.0
(19-pin USB3_0_1) ports on the I/O panel, there is
(see p.2, No. 20) one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB 3.0
ports.
1
ID
In tA _P _D +
In tA _P _D -
GN D
In tA _P _S ST X+
In tA _P _S ST X-
GN D
In tA _P _S SR X+
Vb us
In tA _P _D +
In tA _P _D -
GN D
In tA _P _S ST X+
In tA _P _S ST X-
GN D
In tA _P _S SR X+
In tA _P _S SR X-
Vb us
In tA _P _S SR X-
