19
ASRock FM2A85X-ITX Motherboard
English

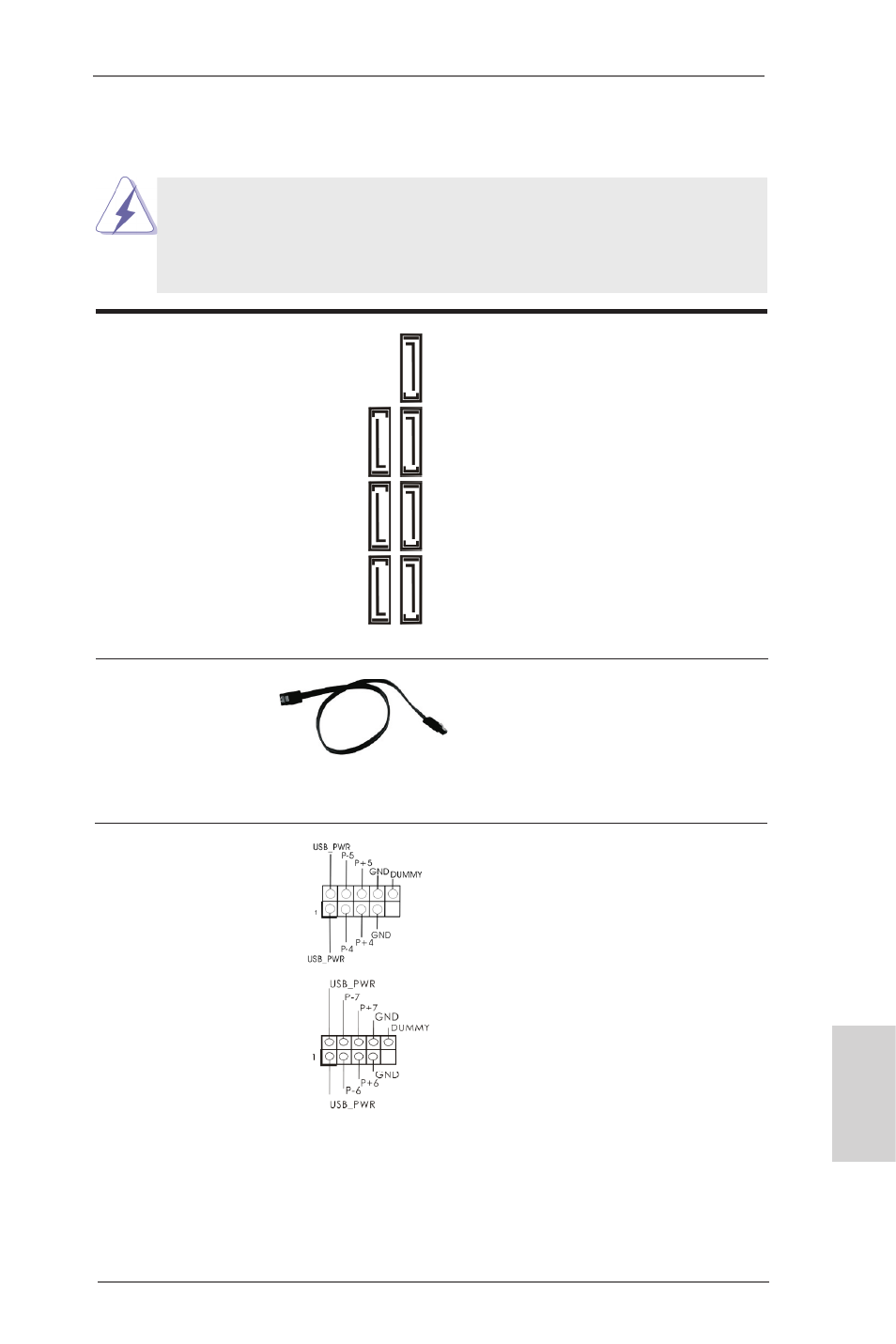

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA3 Connectors These seven Serial ATA3
(SATA3_1: see p.2, No. 13) (SATA3) connectors support
(SATA3_2: see p.2, No. 12) SATA data cables for internal
(SATA3_3: see p.2, No. 11) storage devices. The current
(SATA3_4: see p.2, No. 10) SATA3 interface allows up to
(SATA3_5: see p.2, No. 9)
6.0 Gb/s data transfer rate.
(SATA3_6: see p.2, No. 8)
(SATA3_7: see p.2, No. 7)
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional) SATA3 hard disk or the SATA3
connector on this motherboard.
USB 2.0 Headers Besides four default USB 2.0
(9-pin USB_45) ports on the I/O panel, there
(see p.2 No. 14) are two USB 2.0 headers on
this motherboard. Each USB 2.0
header can support two USB
(9-pin USB_67) 2.0 ports.
(see p.2 No. 16)
SA
TA3_1 SA
TA3_3 SA
TA3_5 SA
TA3_7
SA
TA3_2 SA
TA3_4 SA
TA3_6
