31
ASRock P67 Extreme6 Motherboard
English

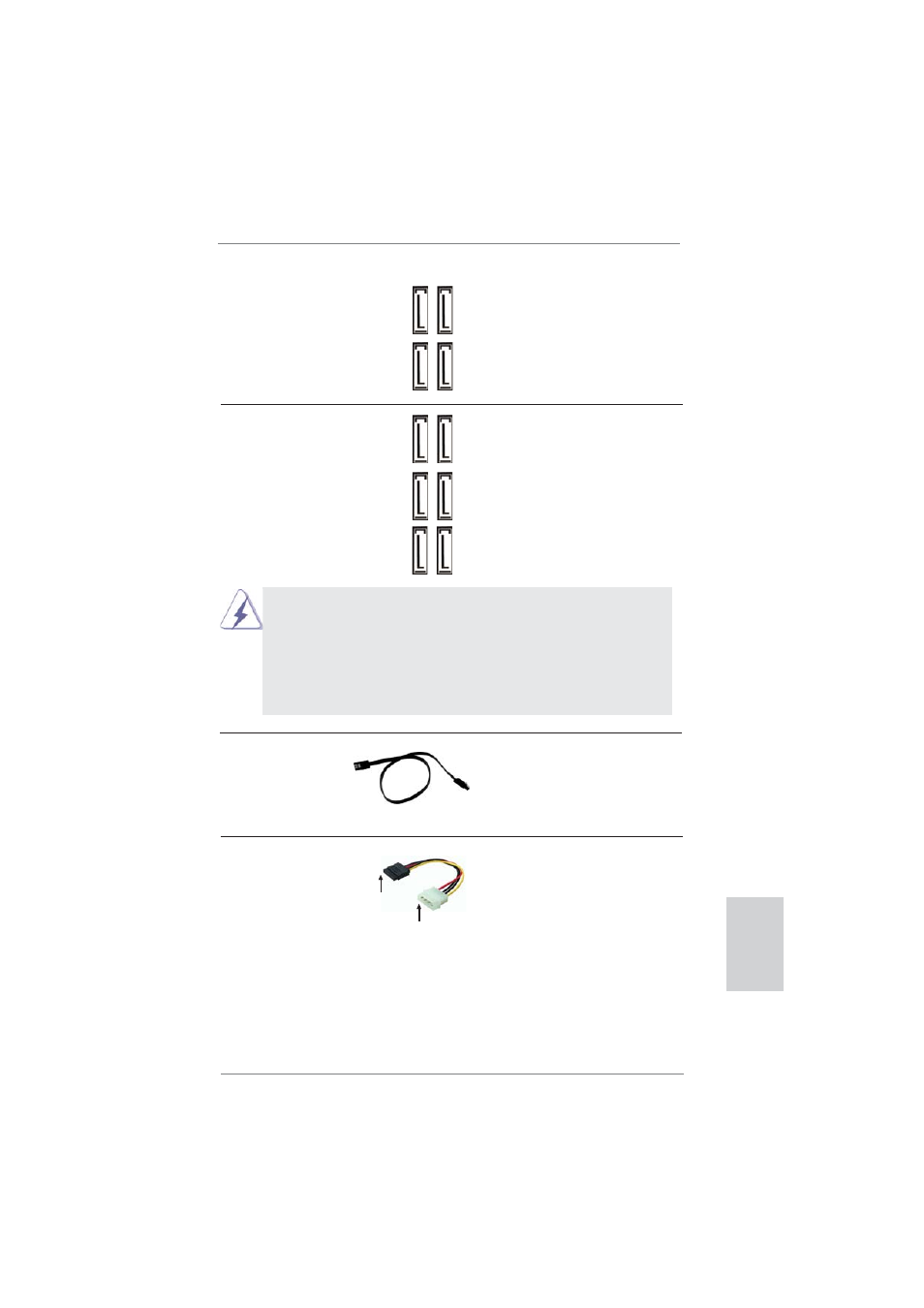

SA
TA2_3 SA
TA2_5
SA
TA2_2 SA
TA2_4
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional) SATA / SATAII / SATA3 hard
disk or the SATAII / SATA3
connector on this motherboard.
connect to the SATA
HDD power connector
connect to the
power supply
Serial ATA (SATA) Please connect the black end
Power Cable of SATA power cable to the
(Optional) power connector on each drive.
Then connect the white end of
SATA power cable to the power
connector of the power supply.
SA
TA3_M4 SA
TA3_M2 SA
TA3_1
SA
TA3_M3 SA
TA3_M1 SA
TA3_0
Serial ATAII Connectors These four Serial ATAII (SATAII)
(SATA2_2: see p.2, No. 14) connectors support SATA data
(SATA2_3: see p.2, No. 13) cables for internal storage
(SATA2_4: see p.2, No. 12) devices. The current SATAII
(SATA2_5: see p.2, No. 11) interface allows up to 3.0 Gb/s
data transfer rate.
Serial ATA3 Connectors These six Serial ATA3 (SATA3)
(SATA3_0: see p.2, No. 16) connectors support SATA data
(SATA3_1: see p.2, No. 15) cables for internal storage
(SATA3_M1: see p.2, No. 18) devices. The current SATA3
(SATA3_M2: see p.2, No. 17) interface allows up to 6.0 Gb/s
(SATA3_M3: see p.2, No. 20) data transfer rate. If you install
(SATA3_M4: see p.2, No. 19) the HDD on the eSATA port on
the rear I/O, the internal
SATA3_M4 will not function.
We recommend to use Intel ® P67 SATA ports (SATA3_0, SATA3_1,
SATA2_2, SATA2_3, SATA2_4 and SATA2_5) for your bootable
devices. This will minimum your boot time and get the best
performance. But if you still want to boot from Marvell SATA3
controller, you can still enable
Marvell SATA3 Bootable in UEFI. If
you want to install USB 3.0 device on Marvell SATA3 port, please use
SATA3_M1 and SATA3_M2 as the fi rst priority for better performance.
