47
X79 Extreme11 Motherboard

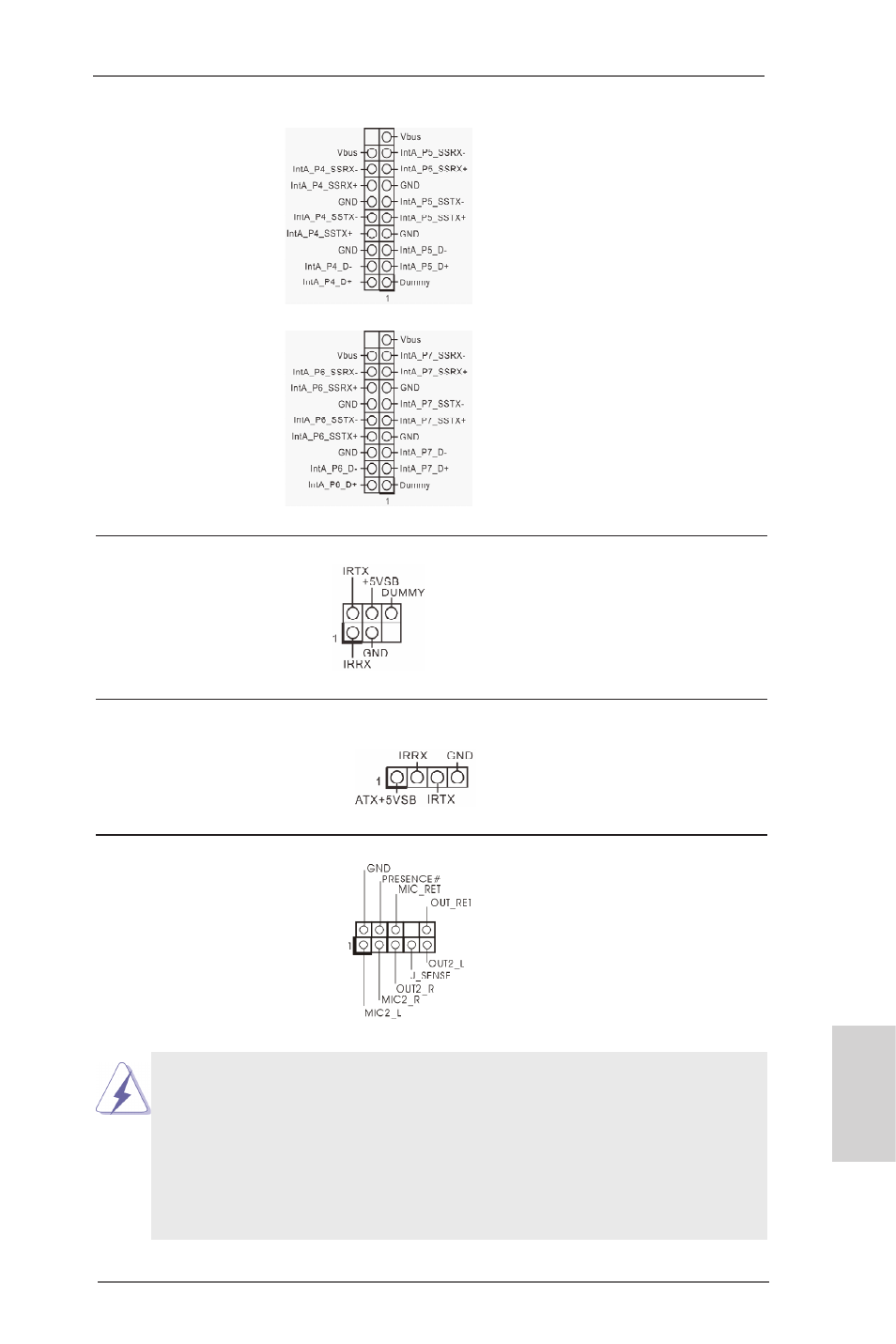

USB 3.0 Header Besides four default USB 3.0
(19-pin USB3_4_5) ports on the I/O panel, there are
(see p.2, No. 12) two USB 3.0 headers on this
motherboard. Each USB 3.0
header can support two USB 3.0
ports.
(19-pin USB3_6_7)
(see p.2, No. 13)
Infrared Module Header This header supports an
(5-pin IR1) optional wireless transmitting
(see p.2, No. 39) and receiving infrared module.
Consumer Infrared Module Header This header can be used to
(4-pin CIR1) connect the remote controller
(see p.2, No. 27) receiver.
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.2, No. 41) convenient connection and
control of audio devices.
1. High Definition Audio supports Jack Sensing, but the panel wire on the
chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
English
