28
ASRock 990FX Extreme4 Motherboard

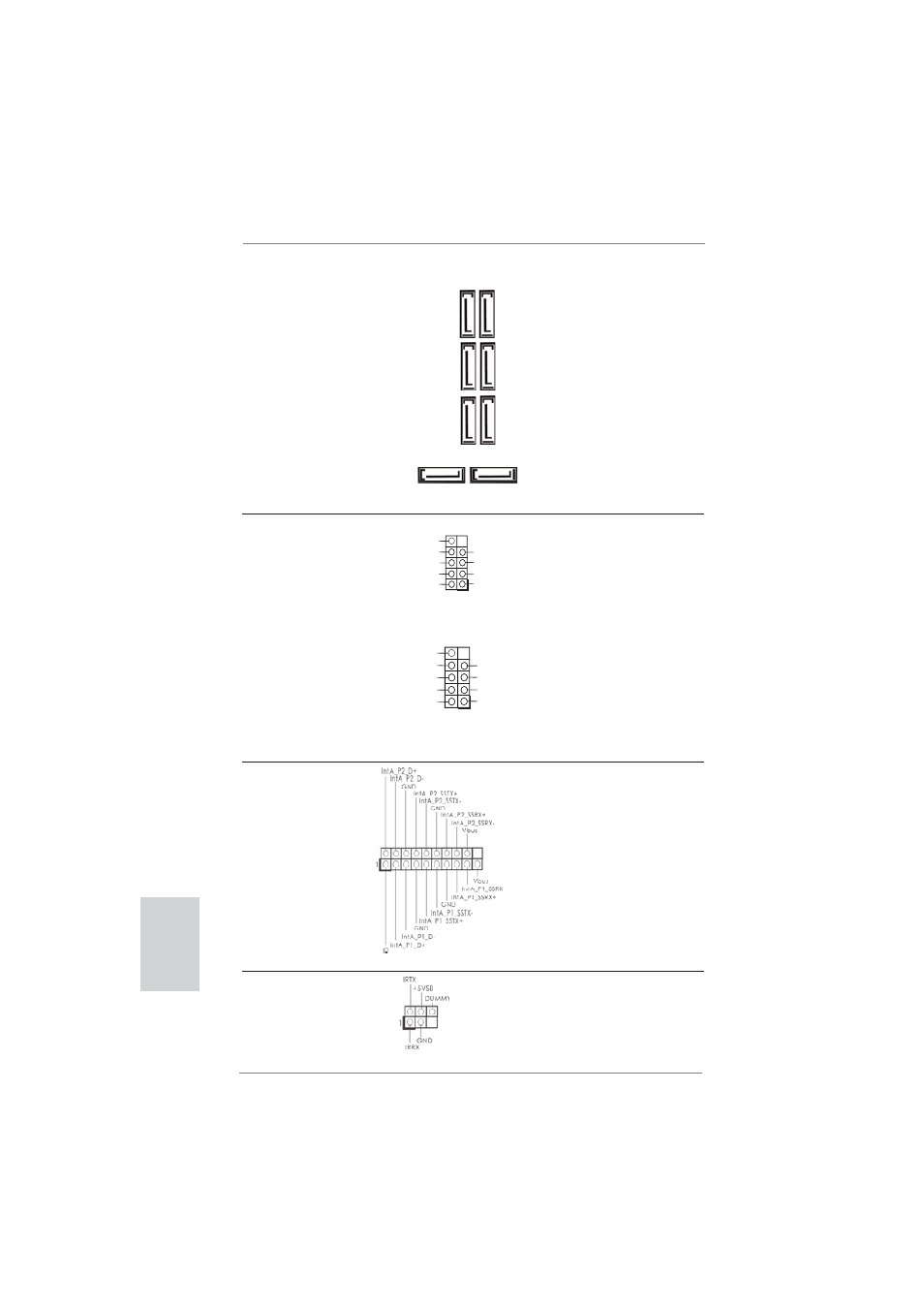

USB 2.0 Headers Besides six default USB 2.0
(9-pin USB2_3) ports on the I/O panel, there
(see p.2 No. 14) are two USB 2.0 headers on
this motherboard. Each USB 2.0
header can support two USB
2.0 ports.
(9-pin USB8_9)
(see p.2 No. 13)
SA
TA3_1_2 SA
TA3_3_4 SA
TA3_5_6
Serial ATA3 Connectors These eight Serial ATA3
(SATA3_1_2: see p.2, No. 21) (SATA3) connectors support
(SATA3_3_4: see p.2, No. 20) SATA data cables for internal
(SATA3_5_6: see p.2, No. 19) storage devices. The current
(SATA3_7: see p.2, No. 32) SATA3 interface allows up to
(SATA3_8: see p.2, No. 33) 6.0 Gb/s data transfer rate. If
you install the HDD on the
eSATA port on the rear I/O,
the internal SATA3_8 will not
function.
SATA3_8 SATA3_7
P-11
P+11
GND
DUMMY
USB_PWR USB_PWR
P+10
P-10
GND
1
P-13
P+13
GND
DUMMY
USB_PWR USB_PWR
P+12
P-12
GND
1
USB 3.0 Header Besides two default USB 3.0
(19-pin USB3_0_1) ports on the I/O panel, there is
(see p.2 No. 28) one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB
3.0 ports.
Infrared Module Header This header supports an
(5-pin IR1) optional wireless transmitting
(see p.2 No. 44) and receiving infrared module.
English
