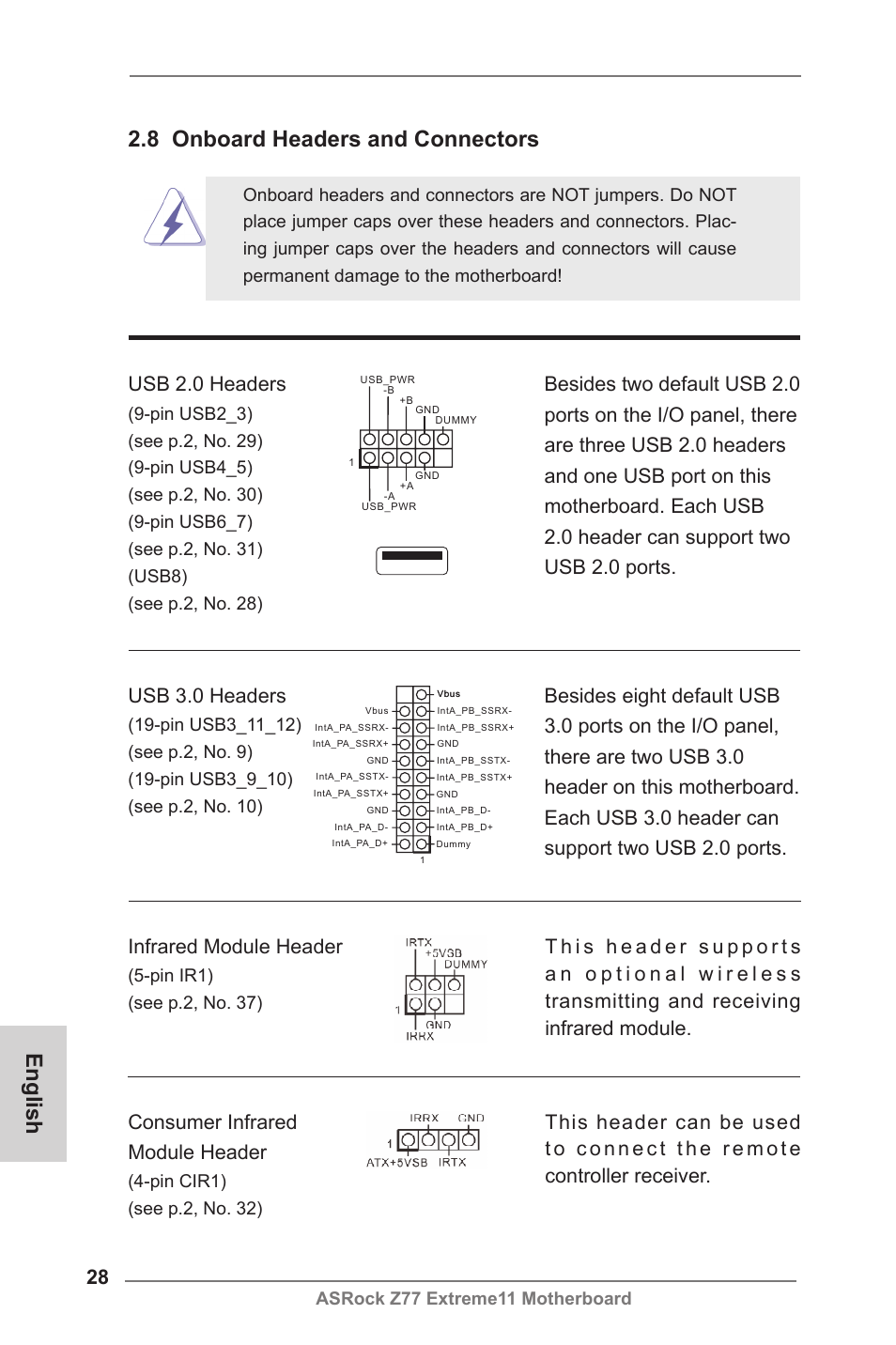

English 2.8 onboard headers and connectors, Consumer infrared module header, Usb 2.0 headers – ASRock Z77 Extreme11 User Manual

Page 28: Infrared module header, Asrock z77 extreme11 motherboard, Pin cir1) (see p.2, no. 32), Pin ir1) (see p.2, no. 37)

English 2.8 onboard headers and connectors, Consumer infrared module header, Usb 2.0 headers | Infrared module header, Asrock z77 extreme11 motherboard, Pin cir1) (see p.2, no. 32), Pin ir1) (see p.2, no. 37) | ASRock Z77 Extreme11 User Manual | Page 28 / 241 English 2.8 onboard headers and connectors, Consumer infrared module header, Usb 2.0 headers | Infrared module header, Asrock z77 extreme11 motherboard, Pin cir1) (see p.2, no. 32), Pin ir1) (see p.2, no. 37) | ASRock Z77 Extreme11 User Manual | Page 28 / 241
